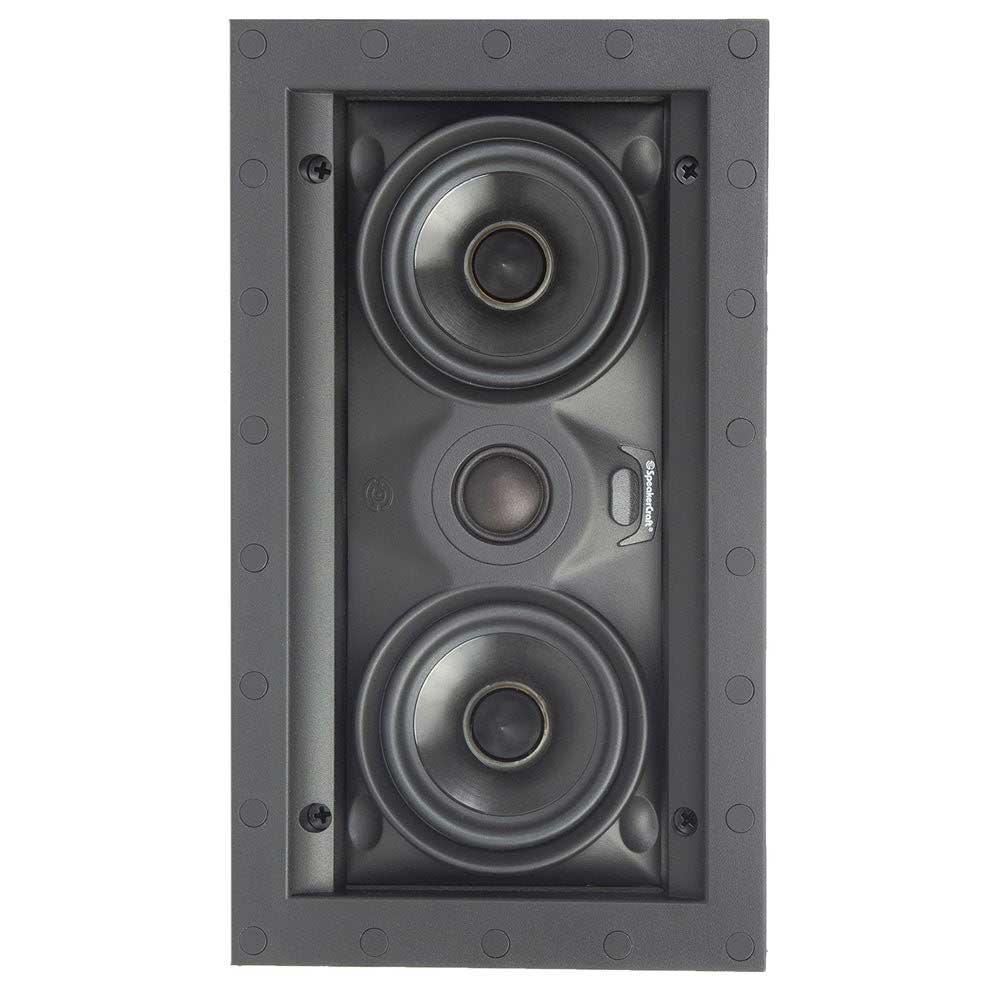

The SpeakerCraft Profile AIM LCR3 One is a compact in-wall speaker designed for home theatre and media room installations where high-quality audio and discreet design are equally important. Combining the elegant Profile flangeless mounting system with the timbre-matched performance of SpeakerCraft’s One Series, this speaker delivers clear dialogue, balanced sound and flexible installation for modern entertainment spaces.
Ideal for use as a left, centre or right channel speaker, the AIM LCR3 One features a tilting front baffle that allows sound to be directed precisely toward the listening position. This ensures optimal audio performance even when the speaker must be installed in challenging positions within the wall.
The unique tilting front baffle design allows installers to aim the sound directly toward the listening area. This improves sound staging, clarity and overall performance in home theatre environments.

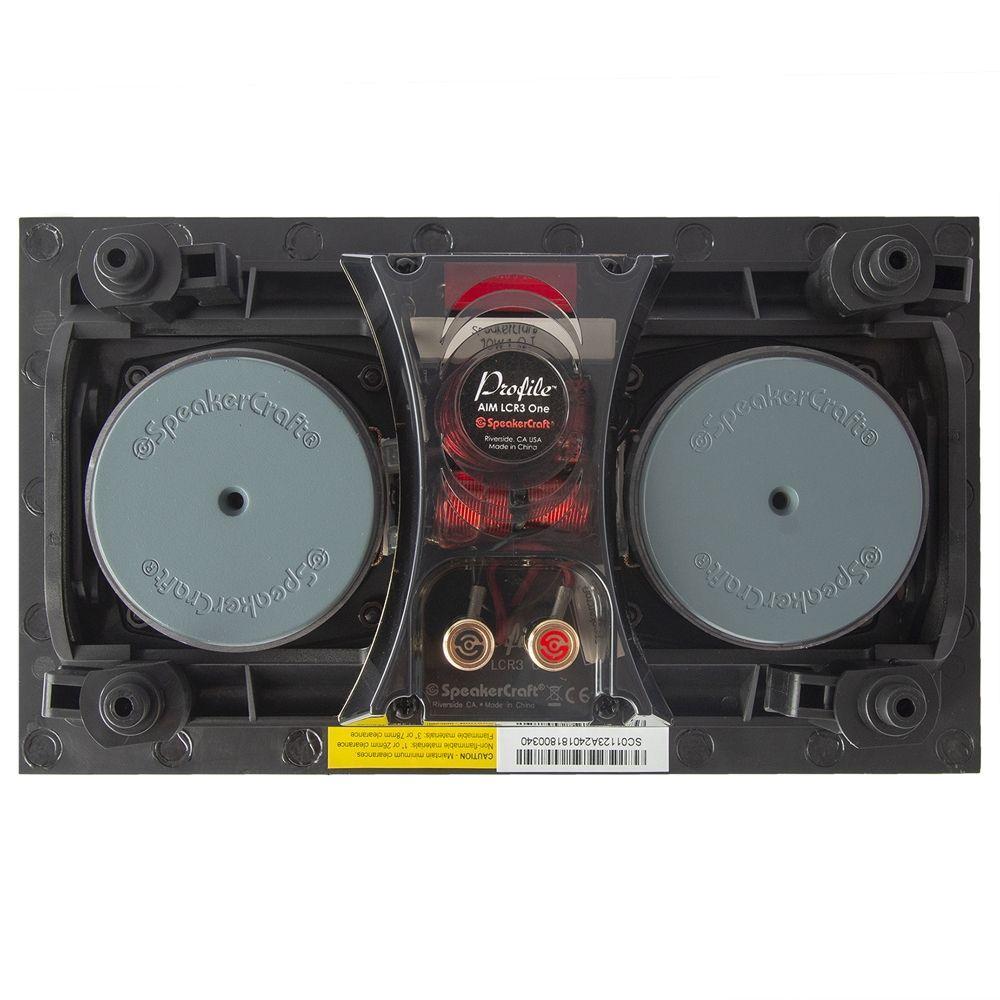

The AIM LCR3 One incorporates two 3" injection-moulded graphite cone woofers with phase plugs. This configuration provides improved midrange clarity and balanced sound reproduction while maintaining a slim and compact speaker profile.
A pivoting silk dome tweeter delivers smooth and natural high frequencies while allowing installers to fine-tune sound direction toward the listening area.

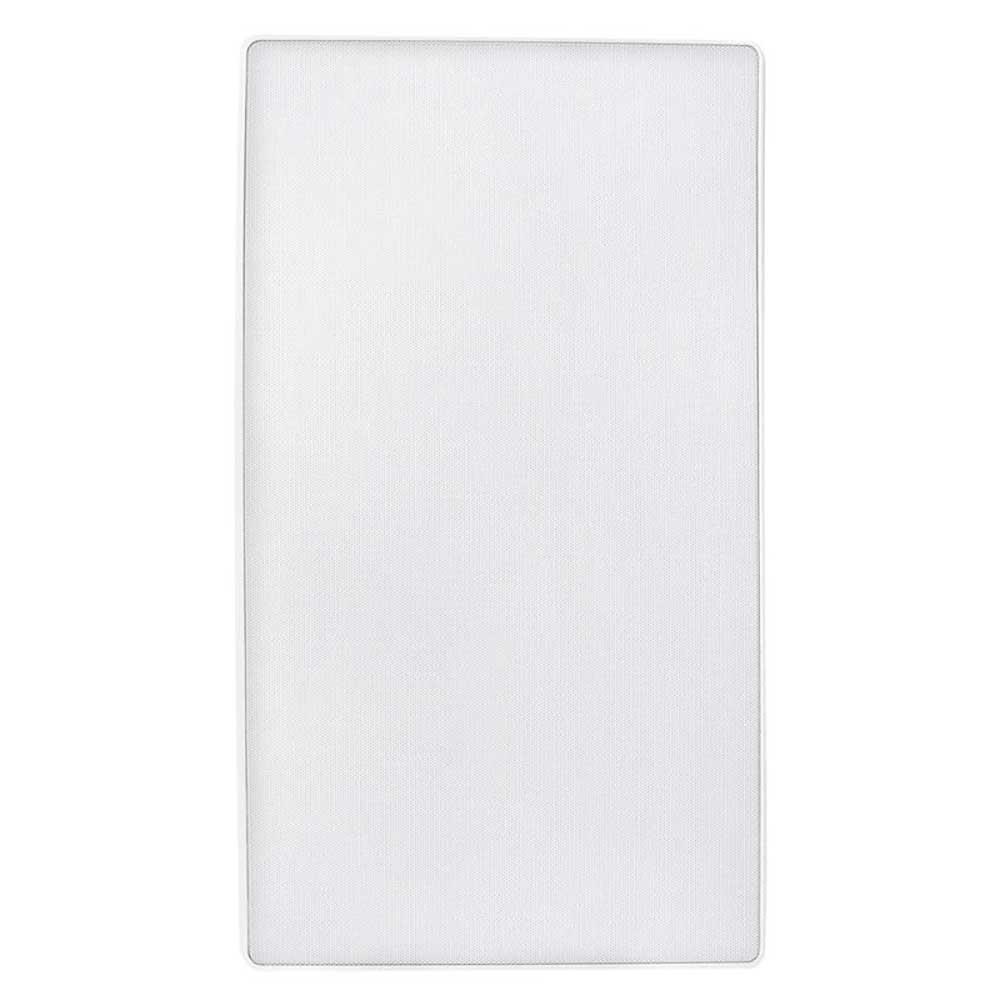

The Profile flangeless mounting system provides a sleek, low-profile appearance that integrates neatly into the wall. Optional Profile grilles allow the speaker to blend seamlessly into modern interior spaces.
| Specification | Details |
|---|---|
| Woofer Configuration | Dual 3" injection-moulded graphite cone woofers with phase plugs |
| Tweeter | Pivoting silk dome |
| Frequency Response | 80Hz – 20kHz |
| Power Handling | 60 W |
| Impedance | 8 Ω |
| Sensitivity | 88 dB |
| Dimensions (H x W x D) | 254 x 146 x 76 mm (with grille) |
| Cut-out Dimensions | 227 x 120 mm |
The SpeakerCraft AIM LCR3 One is ideal for home theatre systems, media rooms and distributed audio installations where a discreet in-wall speaker with precise directional sound is required.
Q: Can this speaker be used as a centre channel?
A: Yes, the AIM LCR3 One is designed for left, centre or right channel use in home theatre systems.
Q: Can the sound be directed toward the listening area?
A: Yes, the adjustable front baffle and pivoting tweeter allow you to aim the sound precisely where needed.
Q: Does it match other SpeakerCraft speakers?
A: Yes, it is timbre-matched to other SpeakerCraft One Series speakers for consistent sound across a system.
