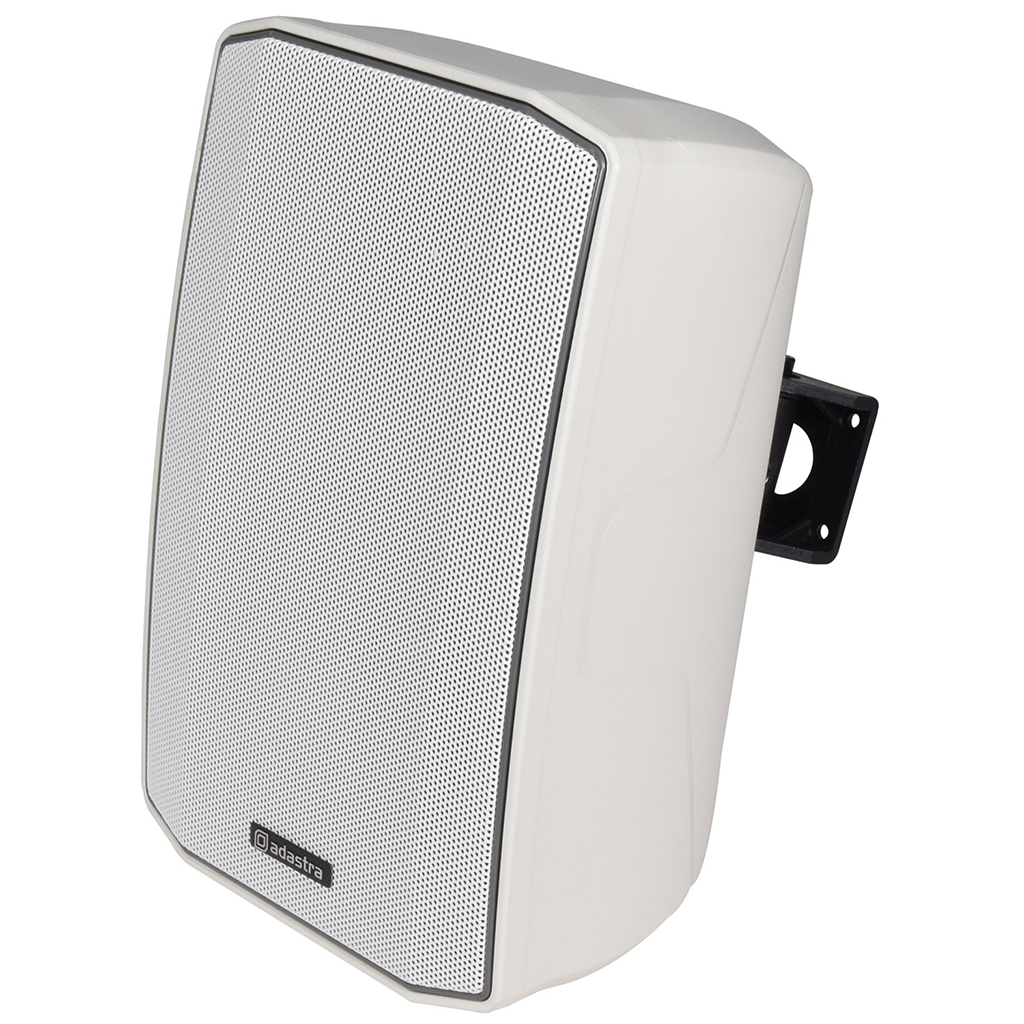

The Adastra LX Series offers robust and versatile wall-mounted speakers, available in 5.25" (LX5T-W) and 6.5" (LX6T-W) models. Designed for both indoor and outdoor environments, these speakers are ideal for public address systems, background music, and voice announcements in commercial settings such as retail spaces, educational institutions, and hospitality venues. Their dual operation capability--supporting both 100V line and 8 Ohm systems--provides flexibility for various audio installations.
Constructed with durable moulded ABS cabinets and aluminium grilles, the LX Series speakers are built to withstand challenging environments. Their IP66 rating ensures protection against dust and powerful water jets, which makes them suitable for outdoor use. Each speaker comes with an integral 2-axis wall-mounting bracket, allowing for precise positioning and easy installation. The lightweight design further simplifies the mounting process, reducing installation time and effort.
| Specification | LX5T-W (5.25") | LX6T-W (6.5") |
|---|---|---|
| Power Source | Passive (requires external amplifier) | Passive (requires external amplifier) |
| Operation Modes | 100V line or 8 Ohm | 100V line or 8 Ohm |
| Power Taps (100V) | 2.5W, 5W, 10W, 20W | 15W, 30W |
| Driver Size | 5.25 inches (133 mm) | 6.5 inches (165 mm) |
| Frequency Response | 100 Hz - 20 kHz | 70 Hz - 20 kHz |
| Sensitivity | 90 dB | 91 dB |
| Max SPL | Not specified | 105 dB |
| Enclosure Material | Moulded ABS plastic | Moulded ABS plastic |
| Grille Material | Aluminium | Aluminium |
| Mounting Bracket | Integral 2-axis wall-mounting bracket | Integral 2-axis wall-mounting bracket |
| IP Rating | IP66 | IP66 |
| Dimensions (W x H x D) | 185 x 250 x 160 mm | 220 x 285 x 180 mm |
| Weight | 2.5 kg | 3.4 kg |
The Adastra LX Series provides high-quality audio performance suitable for both voice and music playback. The 5.25" model is ideal for medium-sized installations where space is limited, while the 6.5" version offers enhanced bass and power handling for larger or more demanding environments. The installation process is streamlined by the 2-axis adjustable mounting bracket. Additionally, the weather-resistant construction ensures long-term reliability in outdoor or semi-exposed locations.
Q: Are both speaker sizes suitable for outdoor use?
A: Yes, both the LX5T-W and LX6T-W models are IP66 rated, providing robust protection for outdoor environments.
Q: Can these speakers be used with an 8 Ohm amplifier?
A: Yes. Both models support 100V line or 8 Ohm operation, making them flexible for various setups.
Q: What type of audio content are these speakers best suited for?
A: These speakers are ideal for background music and clear voice announcements in commercial or public areas.
Q: Are the brackets included with the speakers?
A: Yes, each speaker comes with an integral 2-axis wall-mounting bracket for flexible positioning.
Q: What is the main difference between the LX5T-W and LX6T-W?
A: The LX6T-W features a larger 6.5" driver for deeper bass and higher SPL, making it more suitable for larger areas or applications requiring stronger audio presence.
