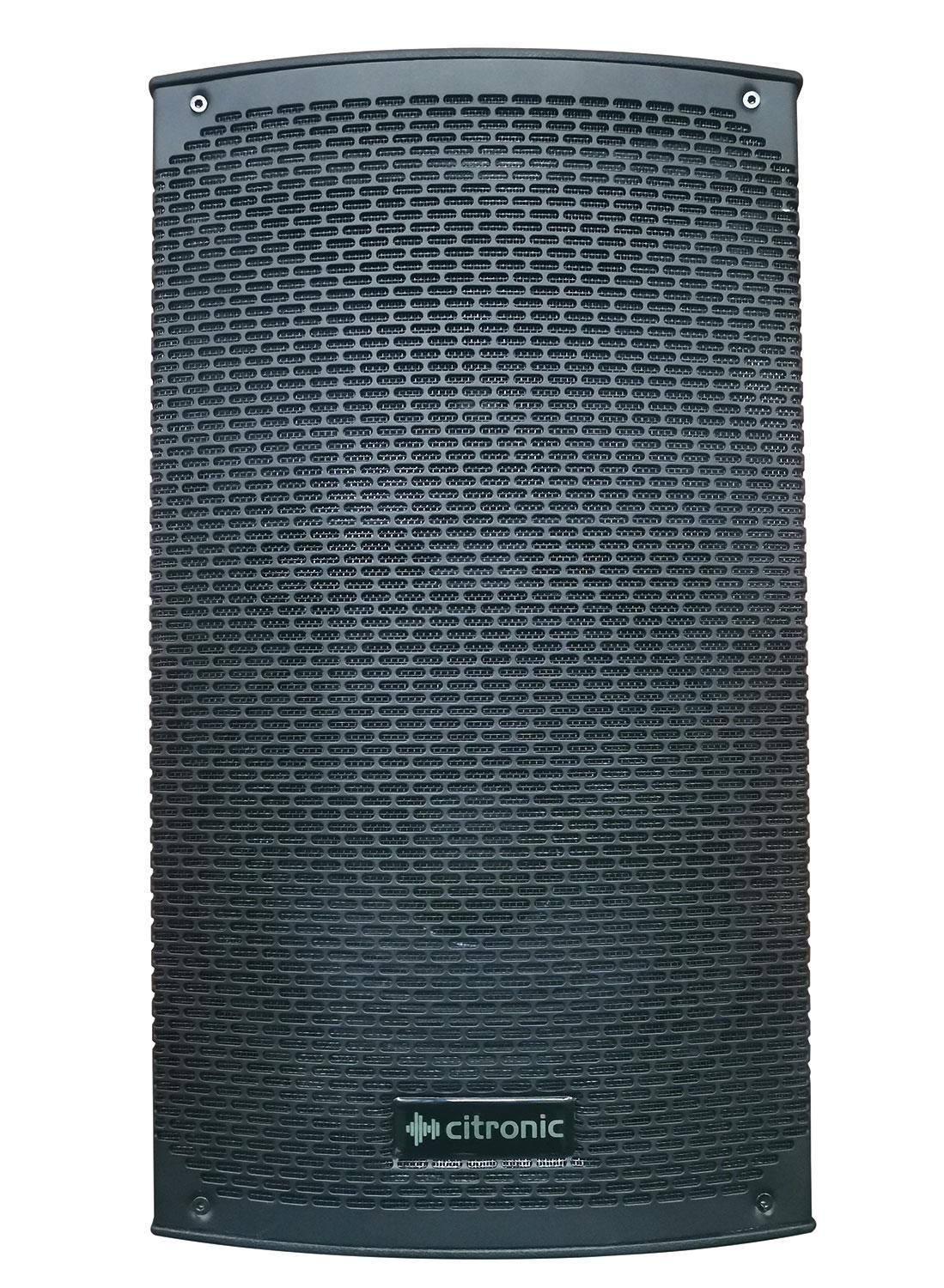

The Citronic CAB-10 is a robust 10-inch passive speaker tailored for mobile DJs and fixed installations alike. It delivers powerful, balanced sound, making it ideal for live performances, public speaking, and background music applications.
Constructed from injection-moulded polypropylene (PP), the CAB-10 offers a lightweight yet durable enclosure that endures the rigours of frequent transport and setup. The cabinet features integral top and side carry handles for enhanced portability. A 35mm pole mount socket is also included for versatile mounting options.
| Specification | Details |
|---|---|
| Power Handling (RMS) | 220W |
| Impedance | 8 Ohms |
| Frequency Response | 58Hz - 19kHz |
| Sensitivity (@ 1W/1m) | 93dB |
| Maximum SPL | 116dB |
| Low-Frequency Driver | 250mm (10") woofer with 50mm (2") voice coil |
| High-Frequency Driver | 35mm (1.35") titanium compression driver |
| Crossover Frequency | 3.2kHz |
| Dispersion | 90 degrees x 60 degrees |
| Connectors | 2 x Speakon sockets |
| Enclosure Material | Injection-moulded polypropylene |
| Mounting Options | 35mm pole mount socket |
| Dimensions (H x W x D) | 530 x 310 x 300mm |
| Weight | 10kg |
The Citronic CAB-10 delivers high-quality audio performance with a frequency response of 58Hz to 19kHz, ensuring clear and detailed sound. With a sensitivity of 93dB and a maximum SPL of 116dB, it suits medium to large venues. Its lightweight construction and ergonomic handles make transport and setup straightforward--ideal for both mobile and installed use.
Q: Is the Citronic CAB-10 suitable for outdoor events?
A: While the CAB-10 is built with durable polypropylene, weather protection or enclosures are recommended when using it outdoors to shield it from the elements.
Q: Can I use the CAB-10 with any amplifier?
A: The CAB-10 has an impedance of 8 Ohms and handles 220W RMS power. Ensure your amplifier matches these specifications to achieve optimal performance and avoid damage.
Q: How do I connect multiple CAB-10 speakers together?

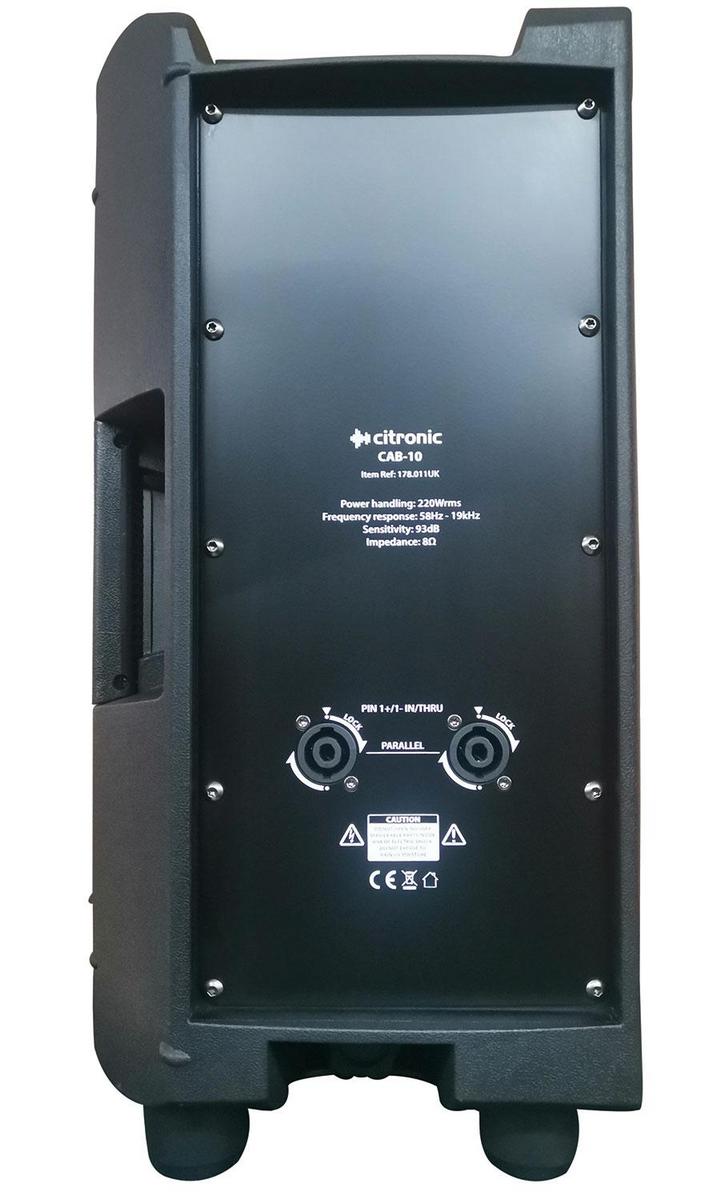

A: The CAB-10 includes two Speakon sockets, enabling daisy-chaining. Connect the amplifier output to the first speaker, then link the second socket to another CAB-10, and so on.
Q: Does the CAB-10 come with mounting hardware?
A: It includes a 35mm pole mount socket for use with standard speaker stands. Additional mounting accessories are sold separately.
Q: What type of venues is this speaker best for?
A: The CAB-10 is ideal for mid-sized indoor venues, mobile DJ use, PA systems, and as part of a fixed installation in bars, small clubs, or community centres.
