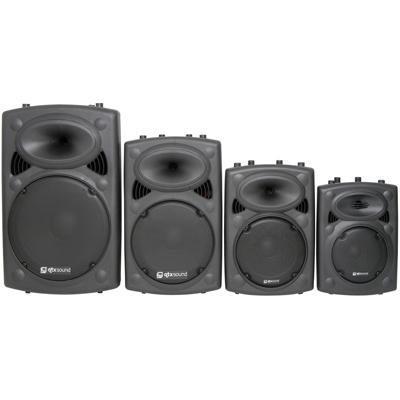

The AVSL QR Series Passive Moulded PA Speaker Boxes are expertly designed for versatile sound reinforcement applications, including small venues, corporate events, and large-scale live performances. Available in four models--QR8, QR10, QR12, and QR15--these speakers combine robust construction with exceptional audio performance to meet the needs of both professionals and enthusiasts.
Each QR Series model features a high-impact moulded polypropylene enclosure, offering outstanding durability while keeping the unit lightweight for easier transportation. The inclusion of a rigid steel grille safeguards the internal components, and the integrated 35mm pole-mount socket provides flexible positioning options. Ergonomically placed easy-carry handles and M8/M6 fixing points ensure convenient handling and versatile mounting solutions for both fixed and mobile installations.
| Specification | Details |
|---|---|
| Power Source | Passive |
| Woofer Size | 8" (200mm) |
| Frequency Response | 55Hz - 20kHz |
| SPL @ 1W/1m | 93dB |
| Power Max / RMS | 200W / 100W |
| Impedance | 8 Ohms |
| Connectors | 1 x SPK |
| Dimensions (W x H x D) | 290/150 x 400 x 220mm |
| Weight | 4.9kg |
| Pole Mounting | 35mm integral top-hat |
| Specification | Details |
|---|---|
| Power Source | Passive |
| Woofer Size | 10" (250mm) |
| Frequency Response | 50Hz - 20kHz |
| SPL @ 1W/1m | 95dB |
| Power Max / RMS | 300W / 150W |
| Impedance | 8 Ohms |
| Connectors | 2 x SPK |
| Dimensions (W x H x D) | 320/180 x 470 x 260mm |
| Weight | 6.4kg |
| Pole Mounting | 35mm integral top-hat |
| Specification | Details |
|---|---|
| Power Source | Passive |
| Woofer Size | 12" (300mm) |
| Frequency Response | 48Hz - 20kHz |
| SPL @ 1W/1m | 98dB |
| Power Max / RMS | 400W / 200W |
| Impedance | 8 Ohms |
| Connectors | 2 x SPK |
| Dimensions (W x H x D) | 350/180 x 570 x 300mm |
| Weight | 9.8kg |
| Pole Mounting | 35mm integral top-hat |
| Specification | Details |
|---|---|
| Power Source | Passive |
| Woofer Size | 15" (380mm) |
| Frequency Response | 45Hz - 20kHz |
| SPL @ 1W/1m | 101dB |
| Power Max / RMS | 500W / 250W |
| Impedance | 8 Ohms |
| Connectors | 2 x 4-wire SPK |
| Dimensions (W x H x D) | 430/250 x 680 x 360mm |
| Weight | 14.2kg |
| Pole Mounting | 35mm integral top-hat |
The QR Series delivers reliable and consistent audio performance across a range of environments, including live performances, DJ events, and public address applications. With a lightweight design, robust build, and exceptional sound clarity, these speakers are a preferred choice for professionals seeking a balance of portability and powerful output. The models cater to varied acoustic requirements, from compact venues to larger audience spaces, ensuring versatility and user satisfaction.
Q: Are these speakers suitable for outdoor use?
A: While highly durable, these speakers are not weatherproof. Outdoor use requires appropriate weather protection.
Q: Can I use these speakers with any amplifier?
A: Yes, provided the amplifier matches the speakers' 8 Ohm impedance and does not exceed the specified power handling capacity.
Q: Do these speakers come with mounting brackets?
A: Mounting brackets are not included but are available separately to suit your installation requirements.
Q: Are the QR Series speakers capable of bi-amping?
A: These are full-range passive speakers and are not designed for bi-amping without modifications.
Q: What is the warranty period for these speakers?
A: Warranty periods vary by retailer. Please consult the specific seller or AVSL's official warranty policies for details.
