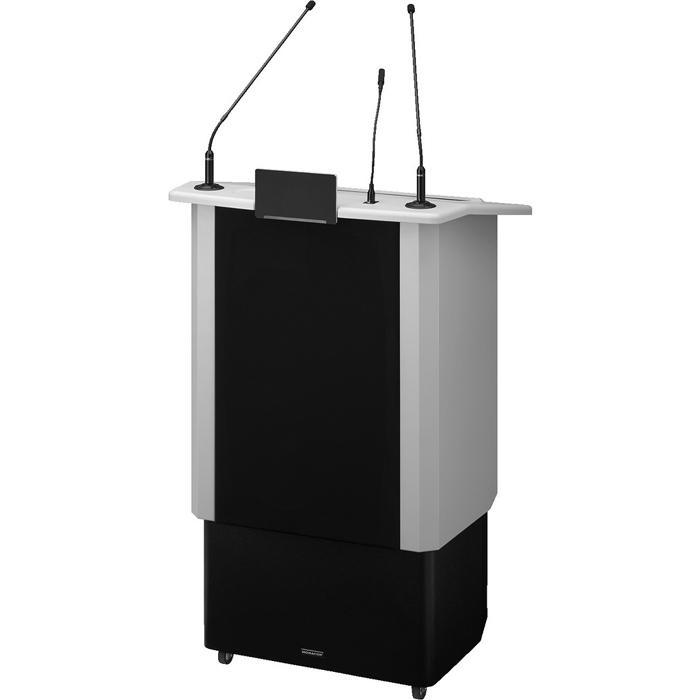

SPEECH-500/GR Professional Amplified PA Lectern

Professional Lectern Solution from Monacor.

Licence-free in the EU.

Please note that this is a special order unit and can take between 4-6 weeks.

Due to the size and weight of this unit a pallet charge will be added to the order.

Supplied w/o laptop.

Also available in the colours: In addition to the standard wood decor grey lacquered, you can choose your individual colour or desired wood decor from 20 other design options: Maple, Dark Apple, Beech, Dark Beech, Italian Oak, Red Oak, Rustic Oak, Alder, Cherry, Dark Cherry, Light Cherry, Tobacco Acacia, Dark Walnut, Light Walnut, Wenge, Plum, Apricot, Pigeon Blue, Vanilla, grey (standard) and white. Information on delivery times and extra charges upon request.

Features:

• Built-in 4-channel mixing amplifier with limiter, 50 W
• Variable electric height adjustment of the lectern, 85-125 cm

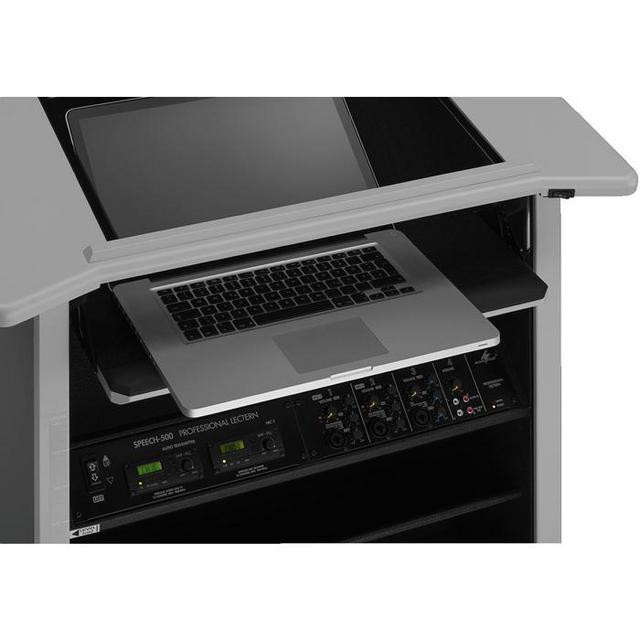

• Top part of the lectern with a transparent safety glass plate and illuminated compartment for a laptop
• Built-in UHF PLL receiver (TXA-802MR) with 16 selectable frequencies (863.1-864.9 MHz) with diversity system, matching transmitters are available at option, e.g. TXA-800HSE or TXA-800HT

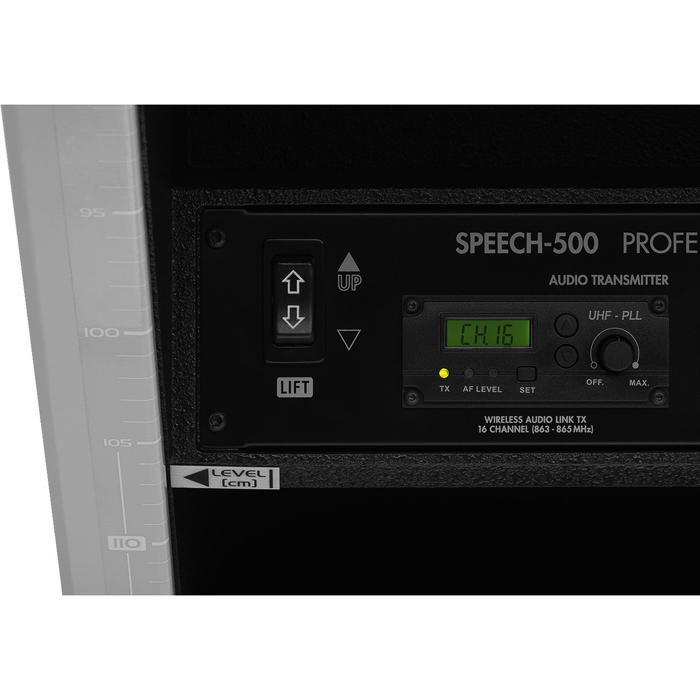

• Built-in UHF PLL transmitter (TXA-802MT) with 16 selectable frequencies (863.1-864.9 MHz) for setting up audio link transmission

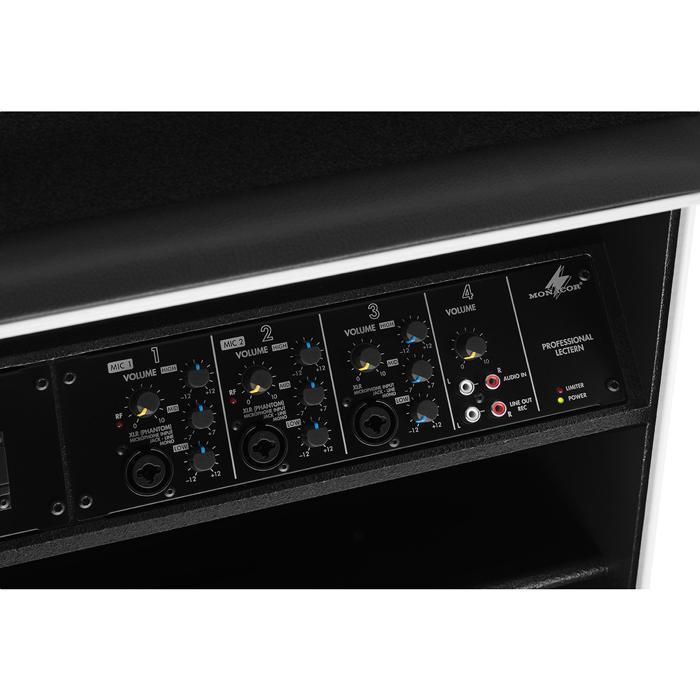

• 3 inputs via comb. jack mic (XLR)/line (6.3 mm jack), stereo line input (RCA), gain controls, 3-way equalizer for the comb. inputs

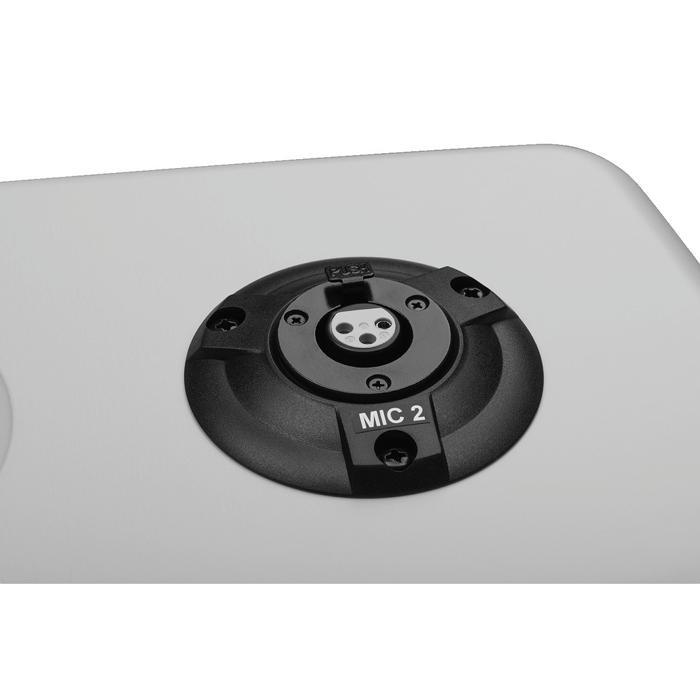

• 2 shock-absorbing XLR jacks on the top part of the lectern for 2 optional gooseneck microphones (each one uses a microphone input), matching microphone EMG-650P is available at option
• Additional XLR jack for LED gooseneck light (e.g. GNL-304, available at option)
• 12 V phantom power for mic input 1 and 2
• 1 stereo line output via RCA jacks
• 30 cm (12") full range speaker of high power capability providing a powerful sound
• High-quality wooden cabinet, wood and lacquer combination
• Standard wood decor: grey lacquered
• Holder for name of speaker to be mounted with terminal screw
• 3 additional storage compartments for documents and other utensils
• 2 swivel castors with brakes, 2 fixed castors

Specification:

• Power rating (PRMS) - 50 W
• Peak music power output (PMAX) - 100 W
• Frequency range - 50-20,000 Hz
• Carrier frequency - 863.1-864.9 MHz
• Operating range - ≤ 30 m
• Inputs - 2 mV (mic 1), 4.5 mV (mic 2-3), 150 mV (line 1-3), 400 mV (line)
• Equalizer, bass - ± 12 dB/60 Hz
• Equalizer, midrange - ± 7 dB/1 kHz
• Equalizer, treble - ± 12 dB/15 kHz
• Power supply - ˜ 230 V/50 Hz/135 VA
• Admiss. ambient temp. - 0-40 °C
• Dimensions - 800 x 1,250 x 570 mm
• Weight - 45 kg
• Connections - 3 x XLR (mic), 3 x 6.3 mm jack (line), 1 x RCA L/R (line in), 1 x RCA L/R (line out)
