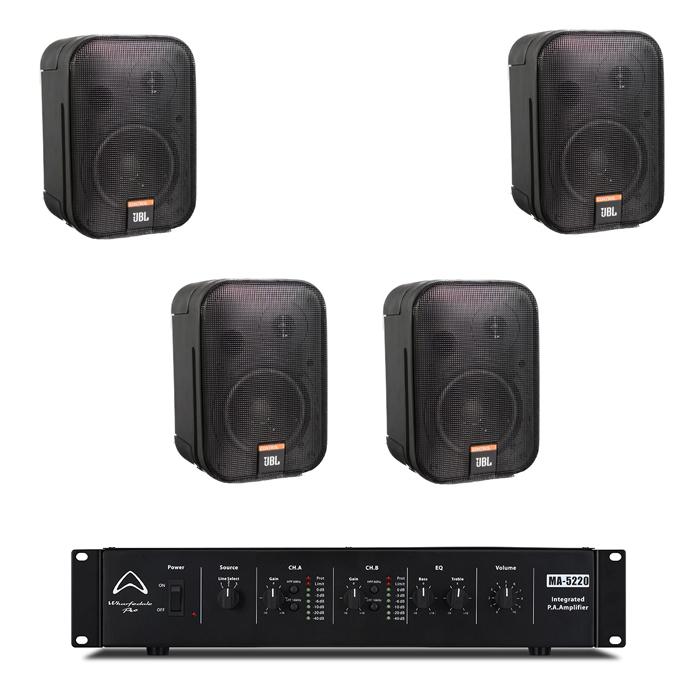

Wharfedale Amplifier 2 Zone 2 X 200W RMS With 4 x JBL Control 1
Complete package for any application where you would like to be able to control 2 zones, i.e a bar where you would like the bar area to be a bit quieter than the other zone.
Features (Wharfedale Amplifier):
- Integrated amplifier
- Ideal for public installation
- Low impedance ( 4 Ohms / 16 Ohms) operation
- Constant voltage (100v / 70v line) operation
- Screw connector outputs
- Additional line outputs
- +24v Phantom Power
- HPF / LPF on each channel
- 2 Band Master EQ
- 8-Segment LED for level and protect display
- Built-in Limiter
- Adjustable ducking feature
- Variable speed fan cooling
Specification (Wharfedale Amplifier):
- Power - 2 x 200W RMS
- Operation - 4 Ohms low-impedance, 110v / 70.7v
- Inputs - 3 x RCA Phono, 2 x 6.3mm Jack
- Outputs - 2 x Screw Terminal, 1 x RCA Phono,2 x 6.3mm jack
- EQ - Bass +/- 10dB at 100Hz, Treble +/- 10dB at 12kHz
- Filter - HPF 60Hz +/-3dB, LPF 16Hz +/-3dB
- Ducking Control - Threshold / Reduction
- Phantom Power - 24v
- Remote Control - Range @ -45dB
- Frequency Response - 20Hz - 20kHz +/-3dB
- Signal To Noise Ratio - >85dB
- Crosstalk - >73dB
- Input Impedance - 10k Ohms (line unbalanced), 600 Ohms (microphone)
- Display - 8 Segment LED
- Protection - Limiter, Fan Cooling
- Dimensions - 430mm x 360mm x 86mm
- Weight - 11.2kg / 24.69lbs
Features (JBL Control 1 Speakers):
- 25-200 watts suggested amplifier power range
- Two-way speaker configuration
- 4' (100mm) woofer and 1/2' (12mm) titanium-laminate tweeter
- Outstanding audio output
- Wide, accurate frequency response
- Magnetically shielded for video proximity
Specification (JBL Control 1 Speakers):
- Type: Bookshelf
- Wall-Mount Capable: Yes
- Finish: Black
- Series: Control Series
- Grille Color: Black
- Power Handling (Peak): 200W
- Nominal Impedance: 8 Ohms
- Maximum Recommended Amplifier Power: 100W
- Sensitivity: (2.83V@1m) 89dB
- Frequency Response: 80Hz – 20kHz
- Power Handling (Recommended): 50W
- Low-Frequency Transducer: 4' (100mm) Magnetically shielded
- High-Frequncy Transducer: 1/2' (12mm) Titanium-laminate, magnetically shielded
- Connector Type: Direct Wiring
- Height: 228mm
- Width: 155mm
- Depth: 139mm
- Weight: 2.4kg
