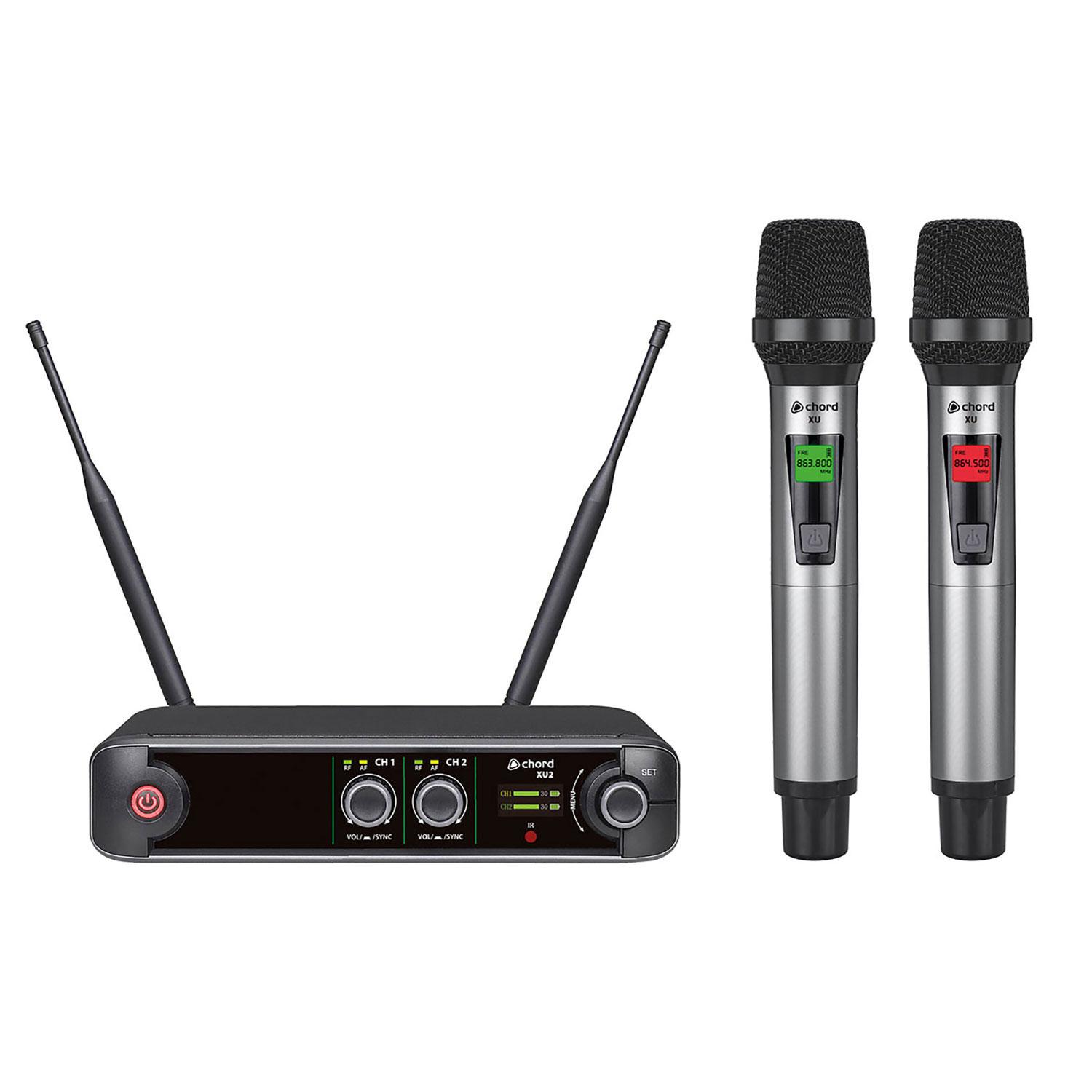

The Chord XU2-H is a professional dual-channel UHF wireless microphone system supplied with two handheld transmitters and a compact half-width 1U receiver. Designed for vocalists, presenters, schools, churches and live events, it combines straightforward operation with true diversity reception for reliable wireless performance.
Operating across 823-832MHz and 863-865MHz, the system offers multiple selectable frequencies and an operating range of up to 60 metres. Infrared synchronisation makes transmitter setup quick and easy, while selectable display colours help identify each microphone when both channels are in use.
Ideal for singers, presenters, instructors, schools, churches, conference venues, theatres, fitness classes, live entertainment and other applications requiring two reliable handheld wireless microphones.
| System Type | 2-Channel UHF Wireless Microphone System |
|---|---|
| Transmitters | 2 x Handheld Wireless Microphones |
| Receiver Type | True Diversity |
| Carrier Frequencies | 823-832MHz / 863-865MHz |
| Frequency Selection | 10 Groups of 9 Selectable Carrier Frequencies |
| Wireless Range | Up to 60m |
| Synchronisation | Infrared (IR) |
| Receiver Display | Colour TFT |

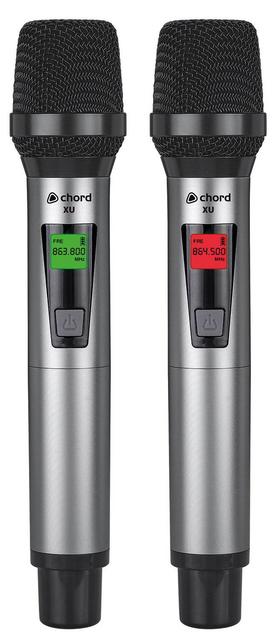

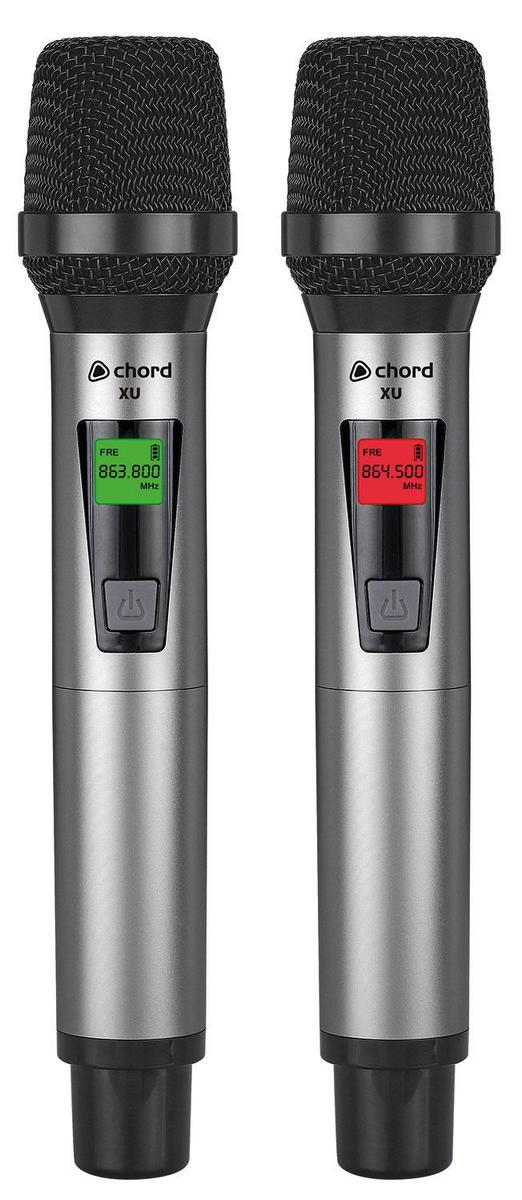

| Transmitter Display | LCD with Frequency & Battery Status |

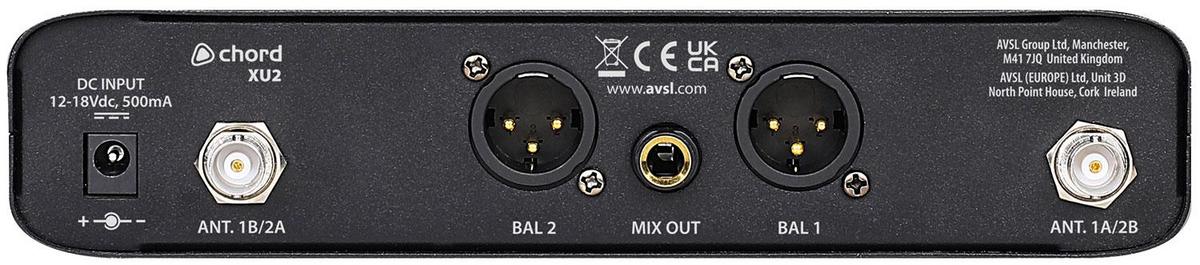

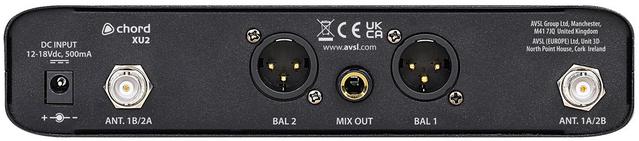

| Audio Outputs | 2 x XLR Individual Outputs, 1 x 6.35mm Mix Output |
| Antenna Connections | 2 x BNC |
| Transmitter Batteries | 2 x AA per Handheld |
| Power Supply | 12-18V DC, 500mA |
| Receiver Dimensions | 205 x 205 x 44mm |
| Receiver Weight | 755g |
| Handheld Dimensions | 258 x 47mm Ø |
| Handheld Weight | 246g excluding batteries |
True diversity reception uses dual antennas to help minimise signal dropouts, providing dependable performance for speech and vocals. The colour TFT display provides clear access to channel settings, while IR synchronisation allows compatible frequency settings to be transferred quickly from the receiver to each handheld transmitter.
This system includes two handheld wireless microphones and a dual-channel receiver, allowing both microphones to be used simultaneously.
The system supports both licence-free Channel 70 (863-865MHz) and Channel 65 (823-832MHz), which has been licence-exempt in the UK since 30 April 2026.
The XU system has a wireless operating range of up to 60 metres under suitable conditions.
True diversity reception uses two antenna paths to improve reception and reduce the likelihood of wireless signal dropouts during use.
Yes. The compact half-width receiver is supplied with rackmount hardware and antenna extension cables, allowing the antennas to be positioned at the front of the rack.
