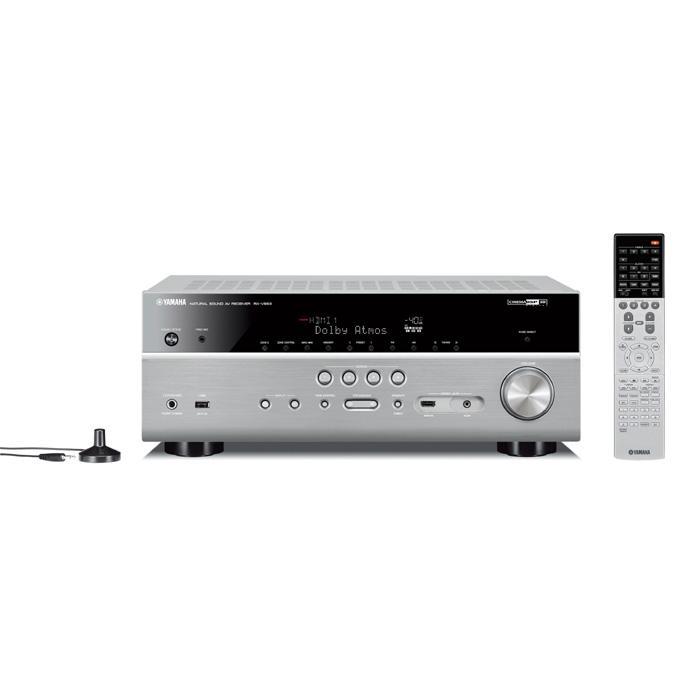

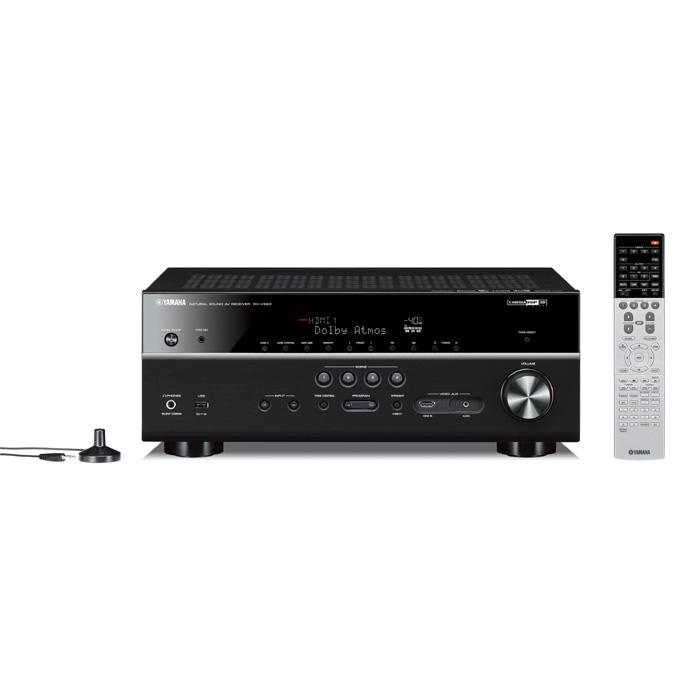

Yamaha RX-V683 7.2 Network AV Receiver With MusicCast + Dolby Atmos®
Yamaha RX-V683 the ultimate AV reciever, look no further when wanting to setup surround sound, this is the amplifier for the job.
Features:
- Dolby Atmos® and DTS:X™ support
- MusicCast for audio enjoyment in every room
- 7-channel powerful surround sound
- --- 90 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
- --- 150 W per channel (4 ohms, 1 kHz, 0.9% THD, 1-ch driven)
- --- 150 W per channel (8 ohms, 1 kHz, 10% THD, 1-ch driven)
- Wi-Fi Built-in and Wireless Direct Compatible for Easy Network

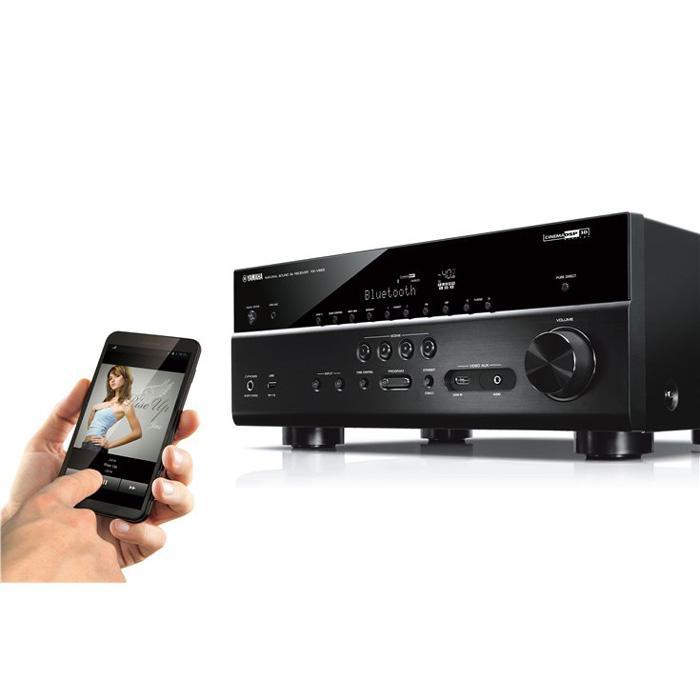

- Bluetooth® for wireless music streaming and Compressed Music Enhancer for Bluetooth
- AirPlay®, Spotify®*, Pandora®*, Napster®*, Tidal*, Deezer*, Qobuz*, JUKE* music streaming service
- *Music service availability varies by region.
- DSD 2.8 MHz / 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple® Lossless 96 kHz / 24-bit playback
- HDMI® (6 in / 1 out) with 4K Ultra HD full support, HDR Video including Dolby Vision and Hybrid Log-Gamma, and BT.2020
- HDMI input on front panel, Front panel USB Digital Connection for USB thumbdrives
- YPAO™ Reflected Sound Control (R.S.C.) sound optimisation for automatic speaker setup
- YPAO Volume to ensure natural sounds even at low volume
- Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
- Zone Extra Bass and Zone Volume Equalizer (Zone 2)
- Versatile Zone control such as Zone mono, Zone volume, Zone tone controls, etc. and Party mode
- Phono input for vinyl playback
Specification:
Amplifier Section
- Channel - 7.2
- Rated Output Power (1kHz, 1ch driven) - 150 W (4 ohms, 0.9% THD)
- Rated Output Power (20Hz-20kHz, 2ch driven) - 90 W (8 ohms, 0.06% THD)
- Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) - 150 W (8 ohms, 10% THD)
- Dynamic Power per Channel (8/6/4/2 ohms) - 125 / 165 / 190 / 235 W
Surround Sound Processing
- CINEMA DPS - Yes (3D)
- DSP Programs - 17
- Dialog Level Adjustment - Yes
- Virtual Presence Speaker - Yes
- Virtual Surround Back Speaker - Yes
- Dialogue Lift - Yes (no presence speakers required)
- SILENT CINEMA / Virtual CINEMA DSP - Yes (Virtual CINEMA FRONT)
- Dolby Atmos - Yes
- Dolby TrueHD - Yes
- Dolby Digital Plus - Yes
- Dolby Surround - Yes
- DTS:X - Yes
- DTS-HD Master Audio - Yes
Audio Features
- Pure Direct - Yes (with video on mode)
- Compressed Music Enhancer - Yes (incl. enhancer for Bluetooth®)
- YPAO sound optimization - Yes (R.S.C)
- YPAO Volume - Yes
- Adaptive DRC (Dynamic Range Control) - Yes
- Initial Volume & Maximum Volume Setting - Yes
- Bi-amp capability - Yes
- Audio Delay - Yes (0-500 ms)
- 192kHz/24-bit DACs for all channels - Yes (Burr-Brown)
Video Features
- 4K Ultra HD Pass-through and upscaling - Yes (4K / 60p, 4:4:4)
- HDMI 3D passthrough - Yes
- HDMI Audio Return Channel - Yes
- HDMI upscaling - Yes (Analogue to HDMI / HDMI to HDMI)
- Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync - Yes

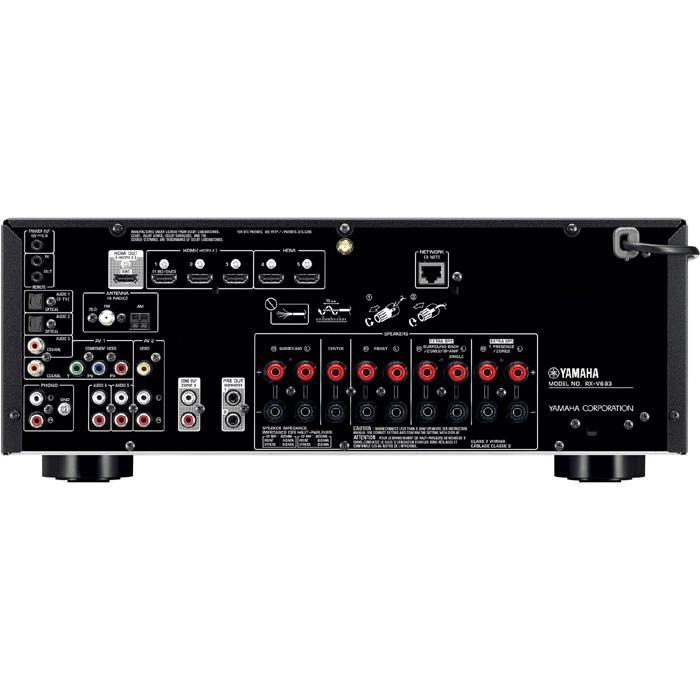

Connectivity
- HDMI Input/Output - 6 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
- HDMI CEC - Yes (SCENE, Device Control)
- USB Input - USB Memory, Portable Audio Player
- Network Port - Yes
- Wi-Fi - Yes (with Wireless Direct)
- AirPlay - Yes
- Bluetooth - Yes (SBC / AAC)
- Front AV Input - HDMI / USB / Mini Jack
- Digital Audio Input/Output: Optical - 2 / 0
- Digital Audio Input/Output: Coaxial - 2 / 0
- Analog Audio Input/Output - 5 (front 1) / 0
- Phono Input - Yes
- Component Video Input/Output - 1 / 0
- Composite Video Input/Output - 1 / 0
- Preout - Subwoofer (2 x mono)
- Headphone Output - 1
Tuner Section
User Interface
- On-screen display - Graphical User Inter face
- SCENE - SCENE (4 sets)
- App Control - Yes (iPhone / iPad / Android phone / tablet)
- Web Browser Control - Yes
- Remote Control Unit - Yes
Zone Control
- Zone 2 Audio Output - Preout
- Powered Zone - Zone 2
- +12V Trigger Output - 1
- Remote (IR) Input/Output - 1 / 1
- Party Mode - Yes
General
- Standby Power Consumption (IR only) - ≤0.1W
- Auto Power Standby - Yes
- ECO mode - Yes
- Dimensions (W x H x D) - 435 x 171 x 378 mm (with antenna up: 435 x 234 x 378 mm); 17-1/8” x 6-3/4” x 14-7/8” (with antenna up: 17-1/8” x 9-1/4” x 14-7/8”)
- Weight - 10 kg; 22 lbs.
