The ZZiPP ZZONE6120PA is a professional-grade 6-zone audio mixer amplifier designed to meet the needs of both commercial and residential audio installations. Ideal for environments such as restaurants, retail stores, offices, and large homes, this amplifier allows users to control audio distribution across multiple zones with ease and efficiency.

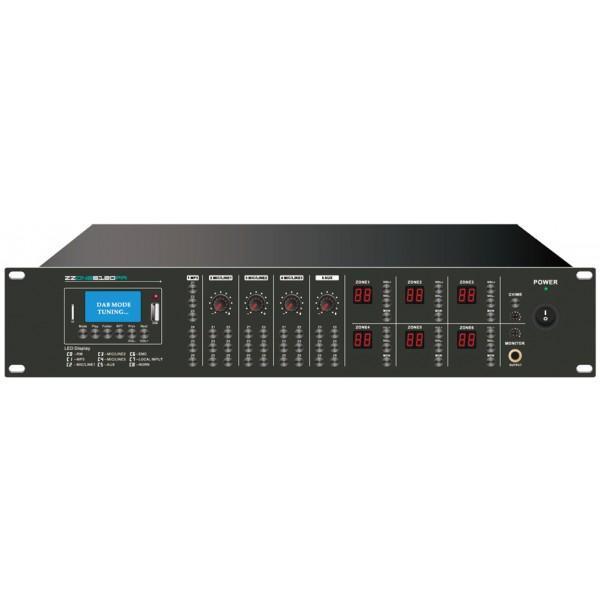

Constructed with a robust metal chassis, the ZZONE6120PA ensures durability and longevity. Its sleek, rack-mountable design facilitates seamless integration into standard audio equipment racks, saving space and ensuring a neat, professional finish. The front panel features intuitive controls and LED indicators for each zone, allowing for straightforward operation and monitoring.
| Specification | Details |
|---|---|
| Power Output | 120W RMS per zone |
| Zones | 6 |
| Inputs | 4 x Mic/Line inputs, 1 x AUX input, USB/SD card input, FM tuner |
| Frequency Response | 50Hz - 18kHz |
| Signal-to-Noise Ratio | > 85dB |
| Tone Control | Bass and Treble adjustment for each zone |
| Dimensions (W x H x D) | 482mm x 132mm x 340mm |
| Weight | 15 kg |
The ZZONE6120PA delivers clear and powerful audio performance across all zones, ensuring consistent sound quality throughout the installation. Its user-friendly interface and versatile input options make it suitable for both novice users and audio professionals. The inclusion of built-in playback features and remote control enhances the overall user experience.
Q: Can the ZZONE6120PA play different audio sources in each zone simultaneously?
A: No, the amplifier distributes a single audio source to all selected zones. Individual source selection per zone is not supported.
Q: Is it possible to connect external speakers to the ZZONE6120PA?
A: Yes, the amplifier supports connection to external passive speakers for each zone, with appropriate impedance matching.
Q: Does the amplifier support Bluetooth connectivity?
A: The ZZONE6120PA does not have built-in Bluetooth functionality. However, you can connect an external Bluetooth receiver via the AUX input.
Q: Can I control the volume of each zone independently?
A: Yes, the amplifier provides independent volume controls for each of the six zones, allowing tailored audio levels per area.
Q: Is the ZZONE6120PA suitable for outdoor installations?
A: The amplifier is designed for indoor use. For outdoor applications, ensure it is housed in a weatherproof enclosure and connected to suitable outdoor-rated speakers.
