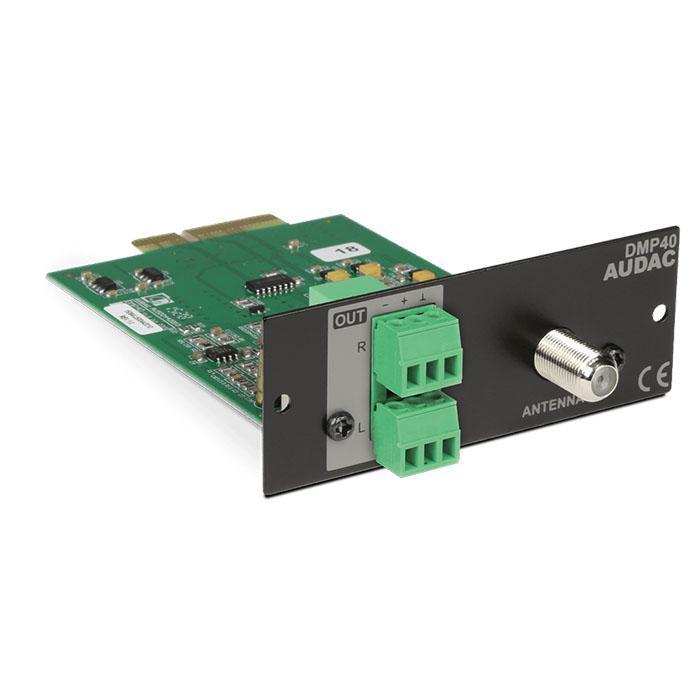

Audac DMP40 SOURCECON™ DAB/DAB+ & FM TUNER MODULE

The DMP40 is a professional DAB/DAB+ & FM tuner featuring SourceCon(TM) modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration. The DMP40 provides access to a wide variation of radio stations while guaranteeing a high-quality audio reproduction. Station selection can be done manually or automatically, while up to 10 preferred channels can be internally stored and recalled. Radio station information carried by RDS / Radiotext can be retrieved, while other functions such as mono/stereo switching (FM) always guarantee the best possible audio clarity. The signal output level is user configurable, while dynamic range compression (DRC) is supported, improving the intelligibility for low volumes in applications with high levels of background noise. Signal reception strength can be retrieved from the module and indicated on the graphical interface of the controlling device. The antenna input is implemented by an F-type connector on its panel, allowing connection of the included antenna cable or any other external antenna using 75 O coaxial cabling. The balanced stereo line output is connected through two 3-pin terminal block connections.

Specification:

• Connection - SourceCon(TM) interface card slot
• Inputs - F-type antenna connection (75 Ω)
• FM - Tuning Range (-10 dB) - 87.5 ~ 108 MHz, Sensitivity (1W/1m) - -108 dBm, Signal / Noise - 52 dB, THD+N (@ 1 kHz) - 0.22%, Frequency Response (± 3 dB) - 30 Hz - 12.5 kHz, Crosstalk (@ 1 kHz) - 26 dB
• DAB - Sensitivity (1W/1m) - -99 dBm, Signal / Noise - 81 dB, THD+N (@ 1 kHz) - 0.026%, Frequency Response (± 3 dB) - 42 Hz - 20 kHz, Crosstalk (@ 1 kHz) - 53 dB
• Outputs - Type - Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm)), Level - +8 dB ~ -32 dB
• Power - Consumption - 1.5 W
• DAB - Tuning Range (-10 dB) - Band-3 - 171 ~ 240 MHz, L-Band - 1452 ~ 1492 MHz
• Dimensions - 87 x 34.5 x 114 mm (W x H x D)
• Weight - 0.074 kg
• Mounting - SourceCon(TM) interface card slot
• Accessories - Included - Antenna cable, Optional - ASK40S 4-way antenna splitter kit
