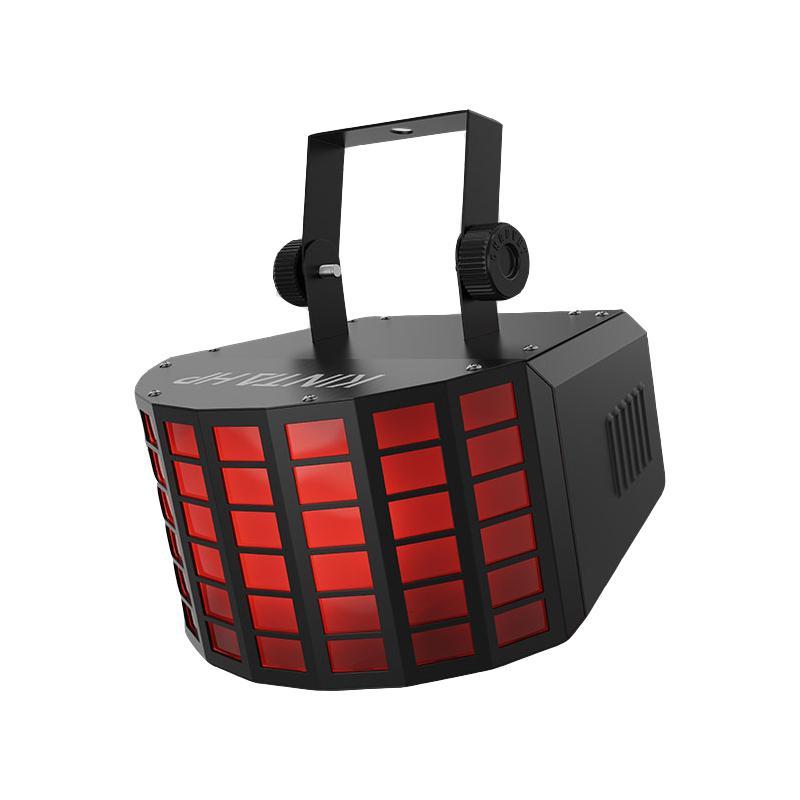

The Chauvet DJ Kinta HP is a high-powered LED effect light tailored for DJs, event professionals, and venue operators seeking dynamic, multi-coloured lighting effects. Its compact design belies its powerful output -- making it suitable for a variety of settings, from intimate clubs to expansive event spaces.
Featuring advanced quad-colour LED technology, the Kinta HP delivers vibrant, rotating beams that can be customised to suit any atmosphere. Its versatility and ease of use make it an excellent choice for both seasoned professionals and newcomers to lighting design.
Constructed with a robust housing, the Kinta HP is engineered to endure the rigours of frequent transport and setup. With compact dimensions (230 x 220 x 240 mm) and a lightweight frame (2.3 kg), it integrates seamlessly into both permanent and mobile lighting setups.
The unit includes a single-yoke mounting bracket with a 13 mm hole for flexible positioning. A convection cooling system ensures silent operation -- ideal for noise-sensitive environments.
| Specification | Details |
|---|---|
| Power Source | AC (100 to 240 VAC, 50/60 Hz auto-ranging) |
| Light Source | 2 x 10W Quad-Colour LEDs (RGBW & CMYO) |
| LED Life Expectancy | 50,000 hours |
| Strobe Rate | 0 to 20 Hz |
| Coverage Angle | 118 degrees |
| DMX Channels | 3 or 12 |
| DMX Connectors | 3-pin XLR |
| Power Linking | Up to 29 units @ 230V |
| Power and Current | 34 W, 0.5 A @ 120 V, 60 Hz |
| Dimensions (W x H x D) | 230 x 220 x 240 mm |
| Weight | 2.3 kg |
| Approvals | CE |
| Bracket Mounting Hole | 13 mm |
| Optional Controllers | IRC-6 (sold separately) |
The Kinta HP offers a visually engaging light show through vibrant beams and motorised rotation. Its wide coverage angle immerses the audience in a vibrant visual display, perfect for elevating live events.
Users value its versatility, with multiple control options catering to both straightforward and complex setups. A digital display streamlines operation, while the IRC-6 remote enhances user control.
Q: Can the Kinta HP be operated without a DMX controller?
A: Yes, it features standalone modes including automated and sound-activated programs, plus master/slave options for synchronised effects.
Q: Is the IRC-6 remote included with the Kinta HP?
A: No, it is sold separately but allows wireless control of most features.
Q: What is the lifespan of the LEDs in the Kinta HP?
A: Approximately 50,000 hours, ensuring long-term reliability and low maintenance.
Q: Can multiple Kinta HP units be linked together?
A: Yes, up to 29 units can be power-linked at 230V for extensive setups.
Q: Is the Kinta HP suitable for large venues?
A: Absolutely -- its powerful output and wide angle make it ideal for venues of all sizes.
