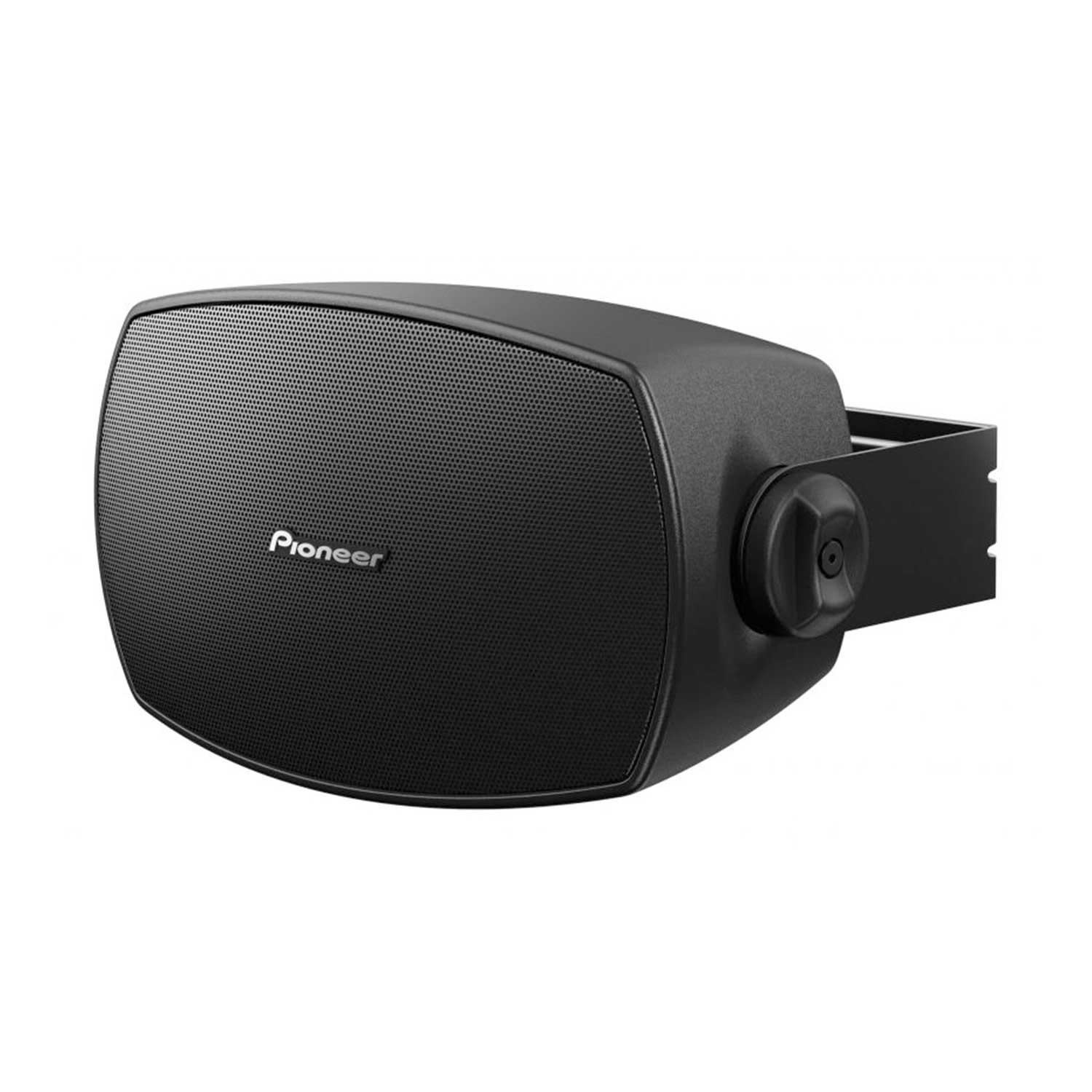

The Pioneer CM-S54T is a versatile two-way passive loudspeaker designed for professional audio installations in commercial environments such as retail spaces, offices, schools, and hospitality venues. The CM-S54T delivers premium-quality audio while maintaining a discreet presence, making it suitable for both indoor and certain outdoor applications.
Featuring an original curved enclosure design, the CM-S54T seamlessly integrates into various interior aesthetics, whether mounted on flat or curved surfaces. Constructed from durable polypropylene (PP) and equipped with a punched aluminium grille, the speaker ensures durability and reliability. Its IP54 rating signifies protection against dust and water ingress, allowing for installation in environments where exposure to the elements is a consideration.
| Specification | Details |
|---|---|
| Loudspeaker Type | Two-way passive, reflex-loaded |
| Frequency Response (-10 dB) | 95 Hz - 20 kHz |
| Sensitivity (1W/1m) | 87 dB |
| Nominal Impedance | 8 Ω |
| Power Handling (RMS/Program) | 40 W / 80 W |
| Transformer Taps | 70 V: 30 W / 15 W / 7.5 W / 3.75 W 100 V: 30 W / 15 W / 7.5 W |
| Dispersion | 120°H × 120°V |
| Maximum SPL | 109 dB (peak) |
| Driver Configuration | LF: 4.5" (114 mm) cone HF: 1" (25 mm) silk dome tweeter |
| Connectors | Euroblock (4 pin) × 1 (input: +/–, loop-thru: +/–) |
| Dimensions (W x H x D) | 154.9 x 250.6 x 144.5 mm |
| Weight | 3.4 kg |
| Environmental Rating | IP54 |
| Colour Options | Black (CM-S54T-K), White (CM-S54T-W) |
The CM-S54T delivers clear and balanced audio performance, making it suitable for background music and public address applications. Its conical dispersion pattern ensures even sound coverage, reducing the number of units required in a given space. The combination of the soft dome tweeter and robust low-frequency driver delivers crisp highs and full-bodied lows, providing an enhanced listening experience across diverse commercial environments.
Q: Is the CM-S54T suitable for outdoor installations?
A: Yes, thanks to its IP54 rating, the CM-S54T can be installed in semi-outdoor or sheltered exterior environments where moderate exposure to dust and water is expected.
Q: Can the speaker be used in both low-impedance and high-impedance systems?
A: Absolutely. The CM-S54T supports both 70V/100V high-impedance systems and 8-ohm low-impedance systems via its built-in transformer and bypass mode.
Q: How is the CM-S54T mounted?
A: It comes with a U-bracket that allows flexible horizontal or vertical mounting on flat or curved surfaces. It also features M6 threaded mounting points for custom brackets.
Q: What kind of audio performance can I expect?
A: You can expect clear vocal reproduction and immersive background sound. The vortex bass accelerator and silk dome tweeter deliver smooth, non-fatiguing audio suited for retail and hospitality venues.
Q: What’s included in the box?
A: Each unit comes with a U-bracket, safety wire, Euroblock connector, and installation manual. Colour-matching grille and enclosure are standard.
