The Pioneer CM-S54T-W is a versatile 4.5-inch surface mount speaker designed for professional audio installations in environments such as retail spaces, restaurants, and conference rooms. It offers flexible impedance options and is suitable for both background music and public address applications.

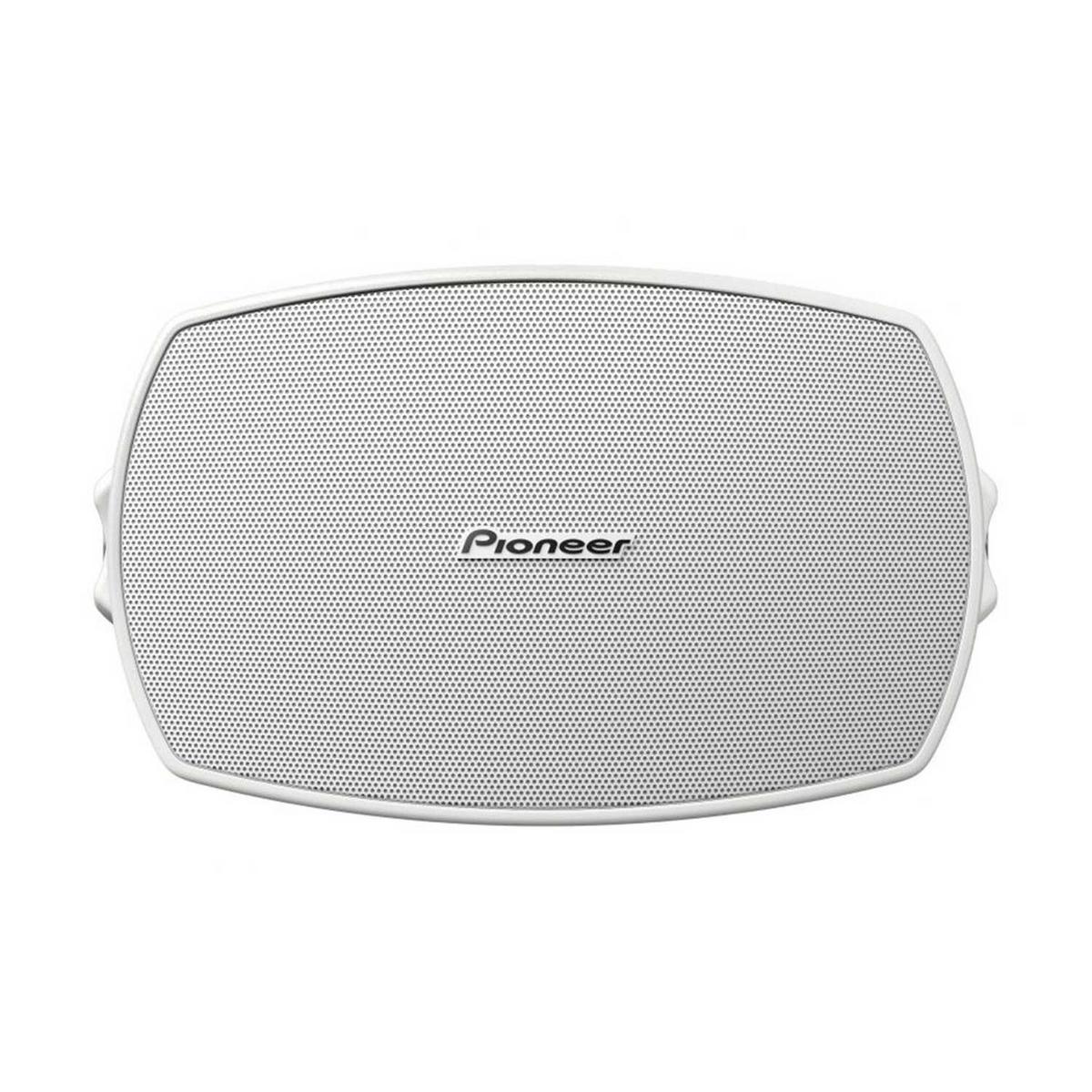

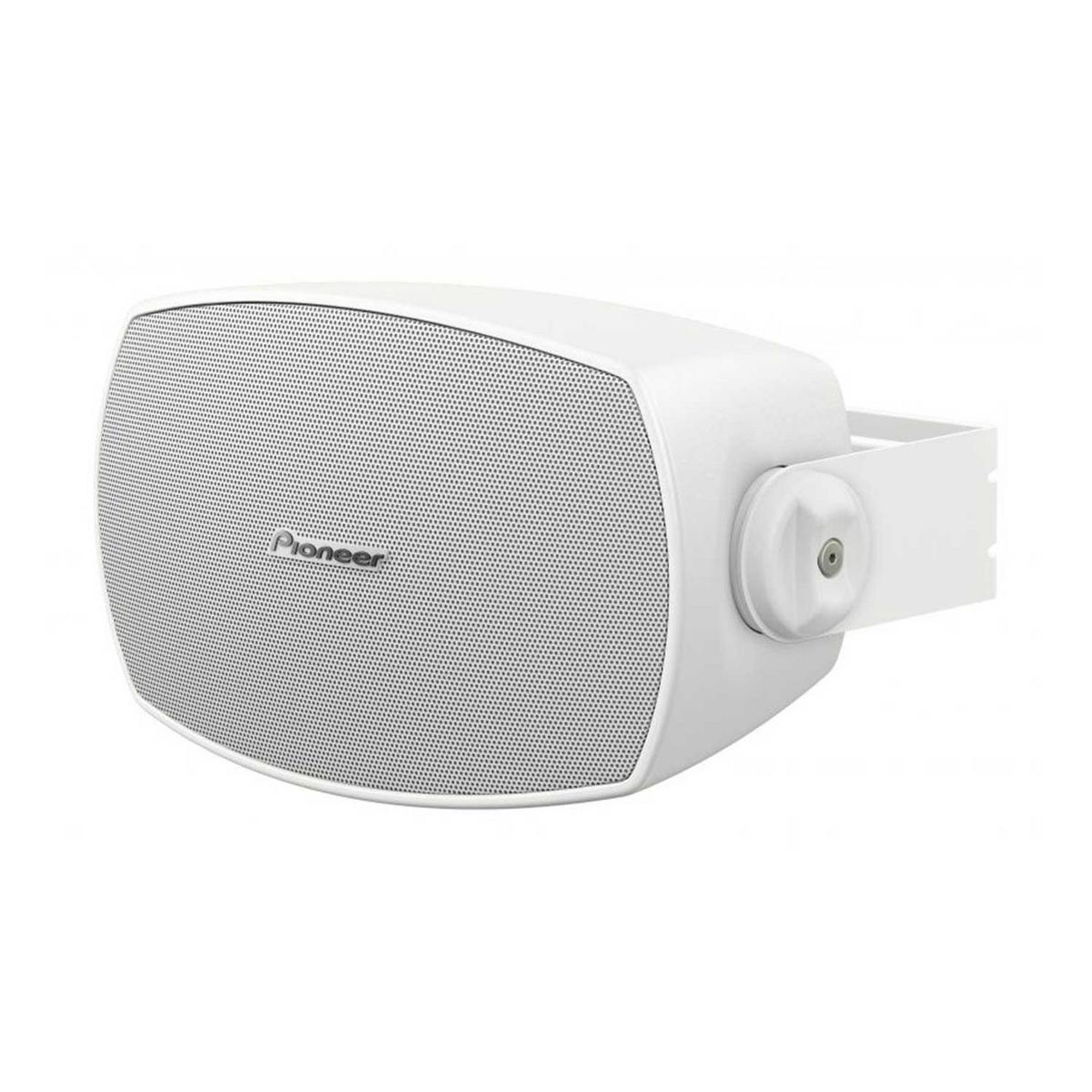

Constructed with a robust polypropylene enclosure and a punched aluminium grille, the CM-S54T-W ensures durability and reliability. Its distinctive curved design allows seamless integration into various interior aesthetics, whether it is mounted on flat or curved surfaces. The included U-bracket facilitates easy and secure installation with adjustable mounting angles.
| Specification | Details |
|---|---|
| Power Handling (RMS/Program) | 40 W / 80 W |
| Transformer Taps | 70V: 30 W / 15 W / 7.5 W / 3.75 W; 100V: 30 W / 15 W / 7.5 W |
| Frequency Response (-10 dB) | 95 Hz - 20 kHz |
| Sensitivity (1W/1m) | 87 dB |
| Nominal Impedance | 8 Ω |
| Dispersion | 120° H × 120° V |
| Maximum SPL | 109 dB (peak) |

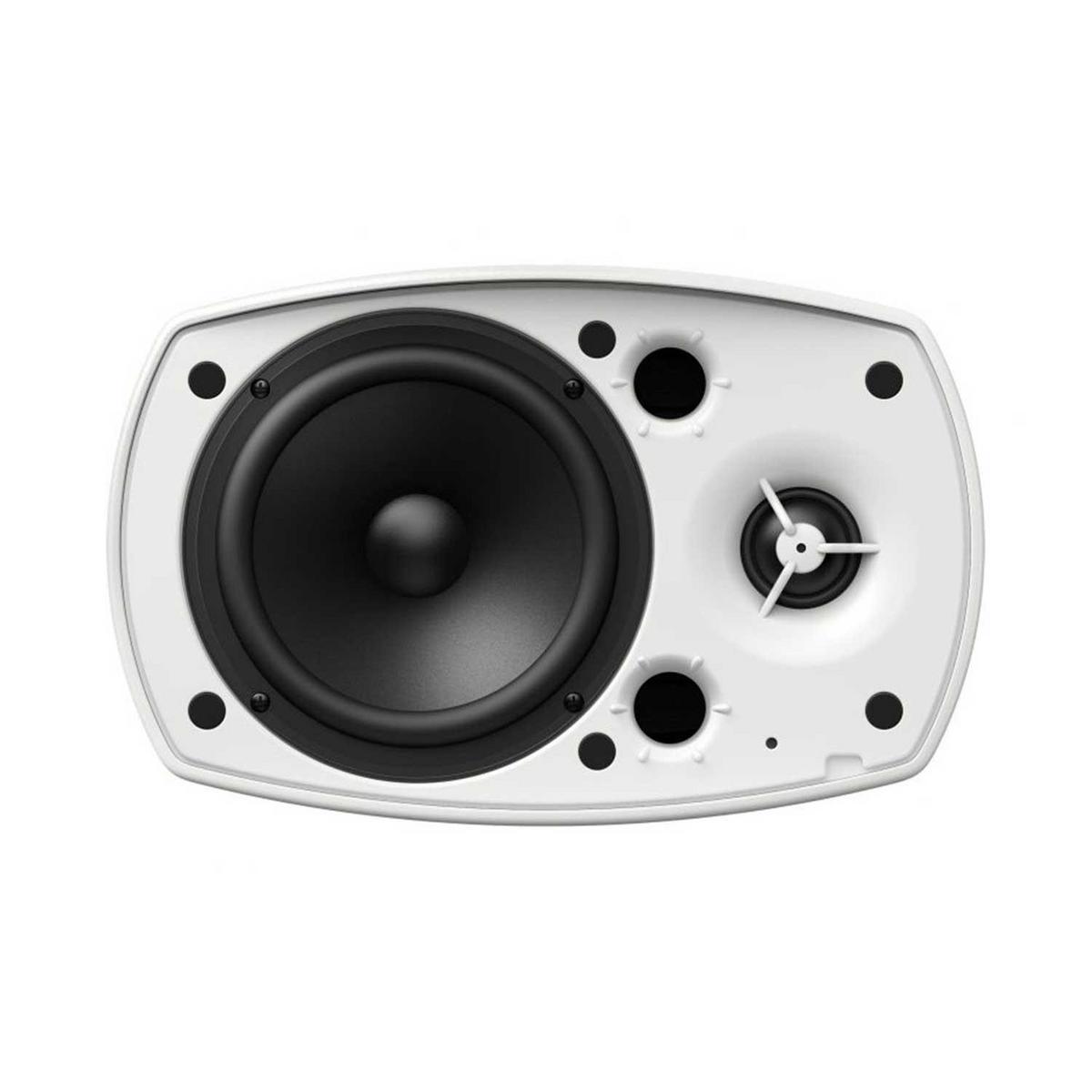

| Driver Configuration | LF: 4.5" cone; HF: 1" silk dome tweeter |
| Connectors | Euroblock (4 pin) × 1 (input: +/−, loop-thru: +/−) |
| Dimensions (W x H x D) | 154.9 x 250.6 x 144.5 mm |
| Weight | 3.4 kg |
| Environmental Rating | IP54 |
| Colour | White |
The CM-S54T-W delivers high-quality audio with minimal distortion, ensuring clear and reliable sound reproduction. Its wide dispersion pattern provides consistent coverage, making it suitable for various applications ranging from background music to public announcements.
Q: Can the CM-S54T-W be used in outdoor installations?
A: Yes, the speaker has an IP54 rating, indicating protection against dust and splashing water, making it suitable for certain outdoor environments. However, it should not be exposed to heavy rain or direct moisture for extended durations.
Q: What mounting accessories are included?
A: The CM-S54T-W comes with a durable U-bracket for easy surface mounting and angle adjustment, compatible with most wall types.
Q: Is it compatible with 100V line systems?
A: Yes, it supports both 70V and 100V line systems with multiple tap settings, as well as standard low-impedance 8-ohm connections.
Q: What type of connector does it use?
A: The speaker includes a 4-pin Euroblock connector for secure input and loop-through wiring.
Q: What is the optimal environment for installation?
A: Ideal for indoor commercial spaces such as restaurants, retail outlets, offices, and hospitality venues. Its discreet design and audio performance make it perfect for professional installations requiring clarity and aesthetics.
