The Pioneer Pro Audio CM-S56T is a versatile 6-inch surface mount loudspeaker designed for professional audio installations in environments such as restaurants, bars, retail stores, and hotels. Drawing on Pioneer's club loudspeaker heritage, this two-way passive speaker delivers premium-quality audio while maintaining a discreet presence in various settings. Its robust construction and IP54 rating make it suitable for both indoor and certain outdoor applications where reliability is crucial.

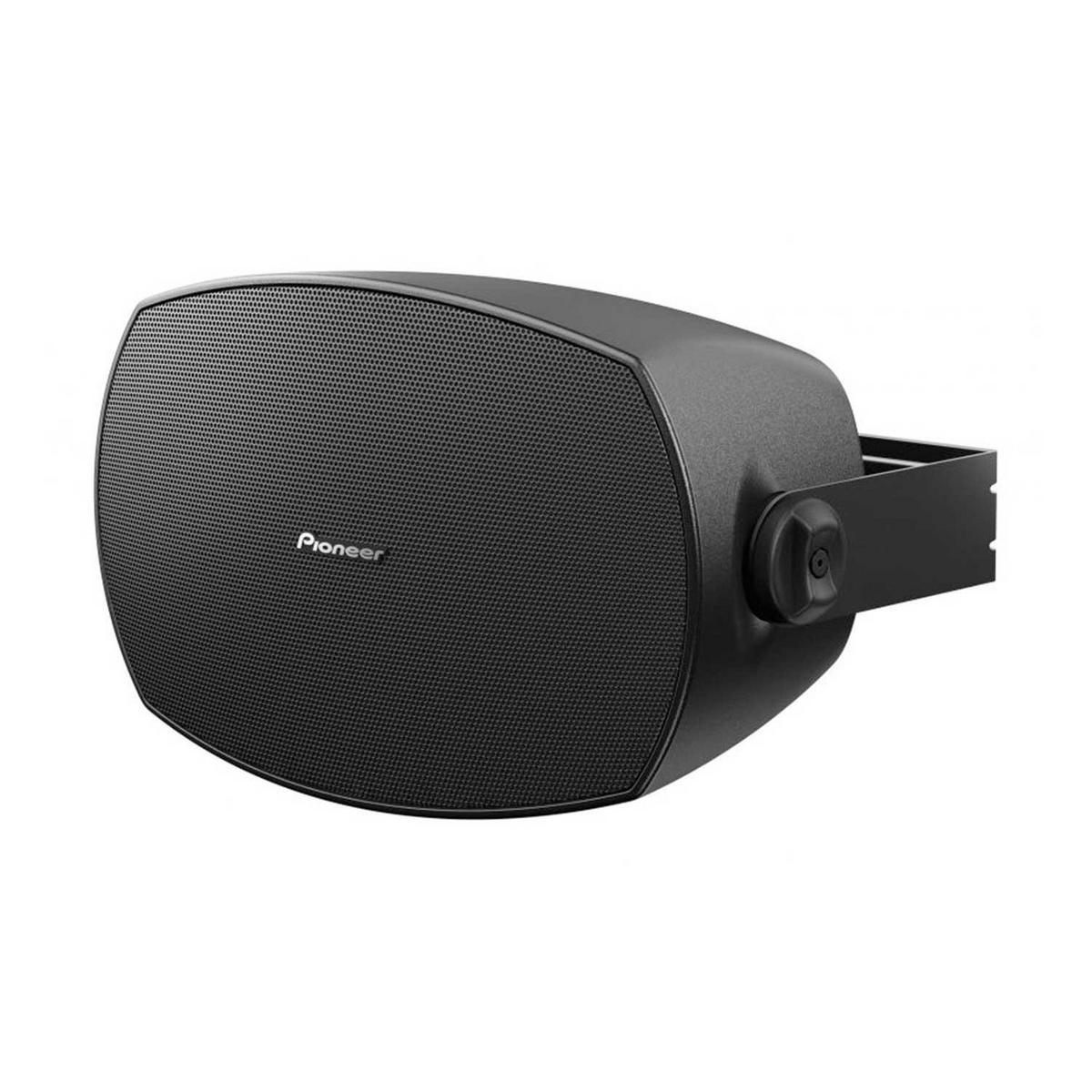

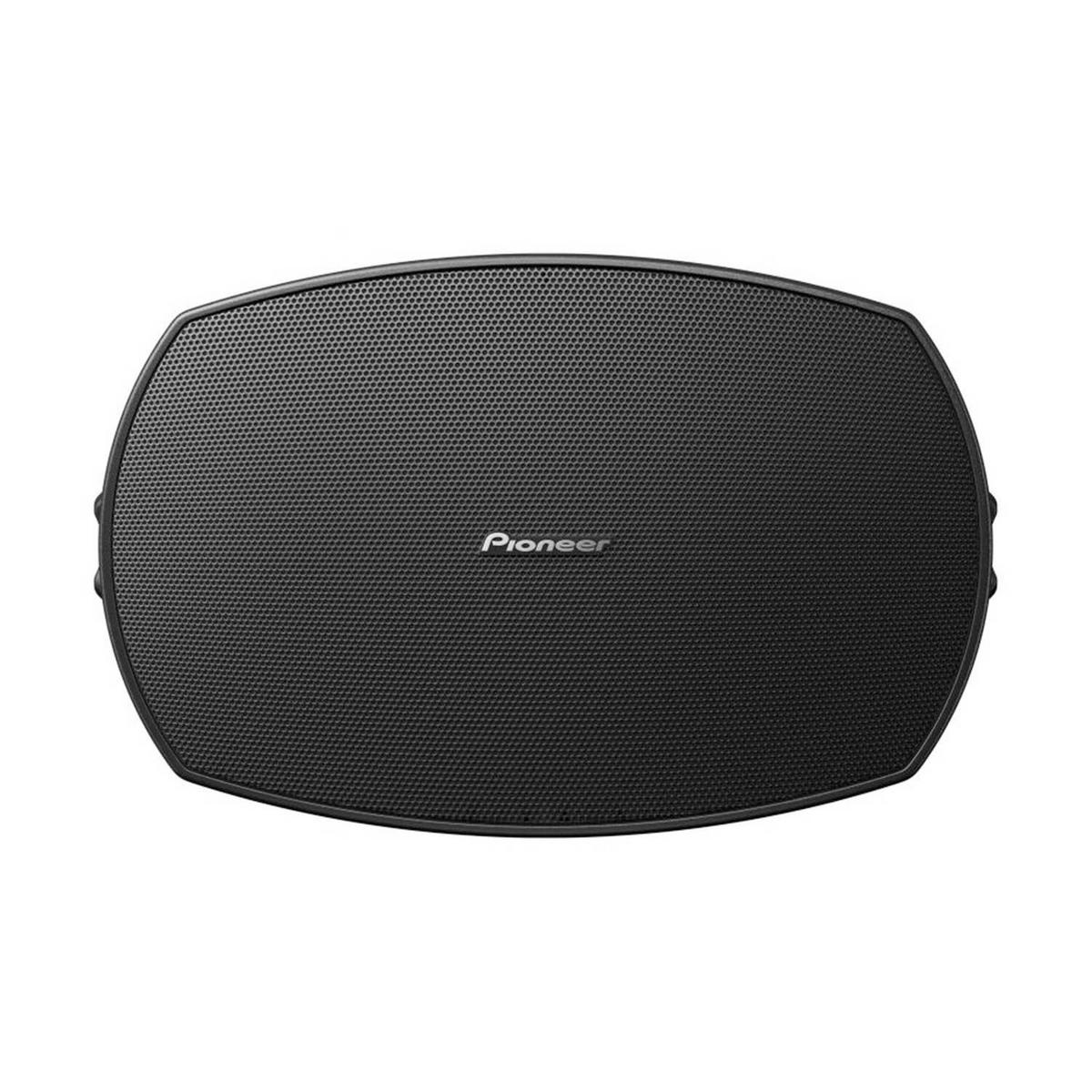

Constructed with a durable polypropylene (PP) enclosure and featuring a punched aluminium grille, the CM-S56T ensures longevity and resilience in diverse environments. Its unique curved design allows seamless integration into both flat and curved surfaces, thus enhancing its aesthetic appeal. The included U-bracket with rigid notches facilitates easy adjustment of sound direction, ensuring optimal coverage. Additionally, the speaker's IP54 rating signifies dust and water resistance, making it suitable for outdoor areas not exposed to excessive moisture.
| Specification | Details |
|---|---|
| Loudspeaker Type | Two-way passive, reflex-loaded |
| Frequency Response (-10 dB) | 80 Hz - 20 kHz |
| Sensitivity (1W/1m) | 88 dB |
| Nominal Impedance | 8 Ω |
| Power Handling (RMS/Program) | 60 W / 120 W |
| Transformer Taps | 70 V: 60 W / 30 W / 15 W / 7.5 W 100 V: 60 W / 30 W / 15 W |
| Dispersion | 110° H × 110° V |
| Maximum SPL | 113 dB (peak) |

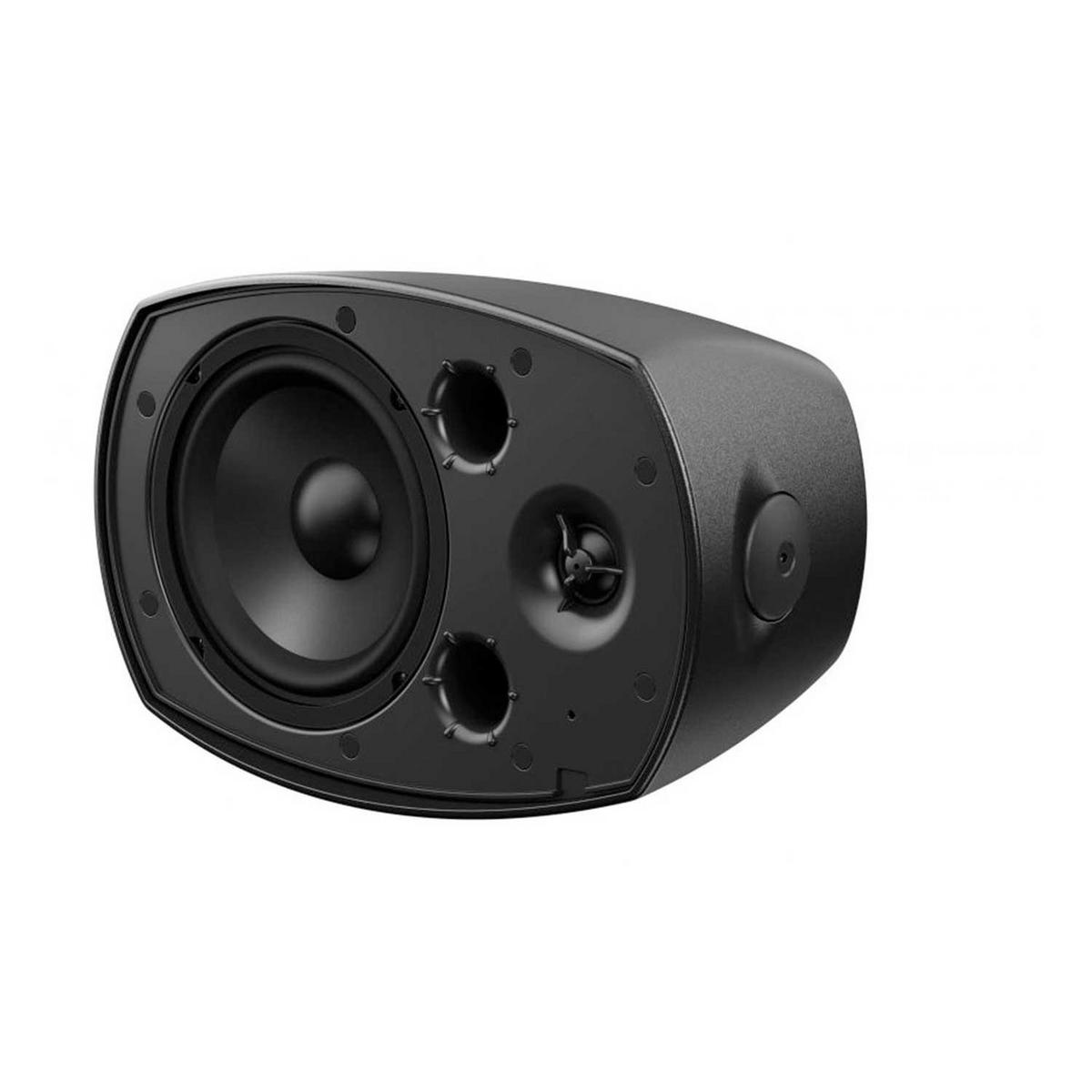

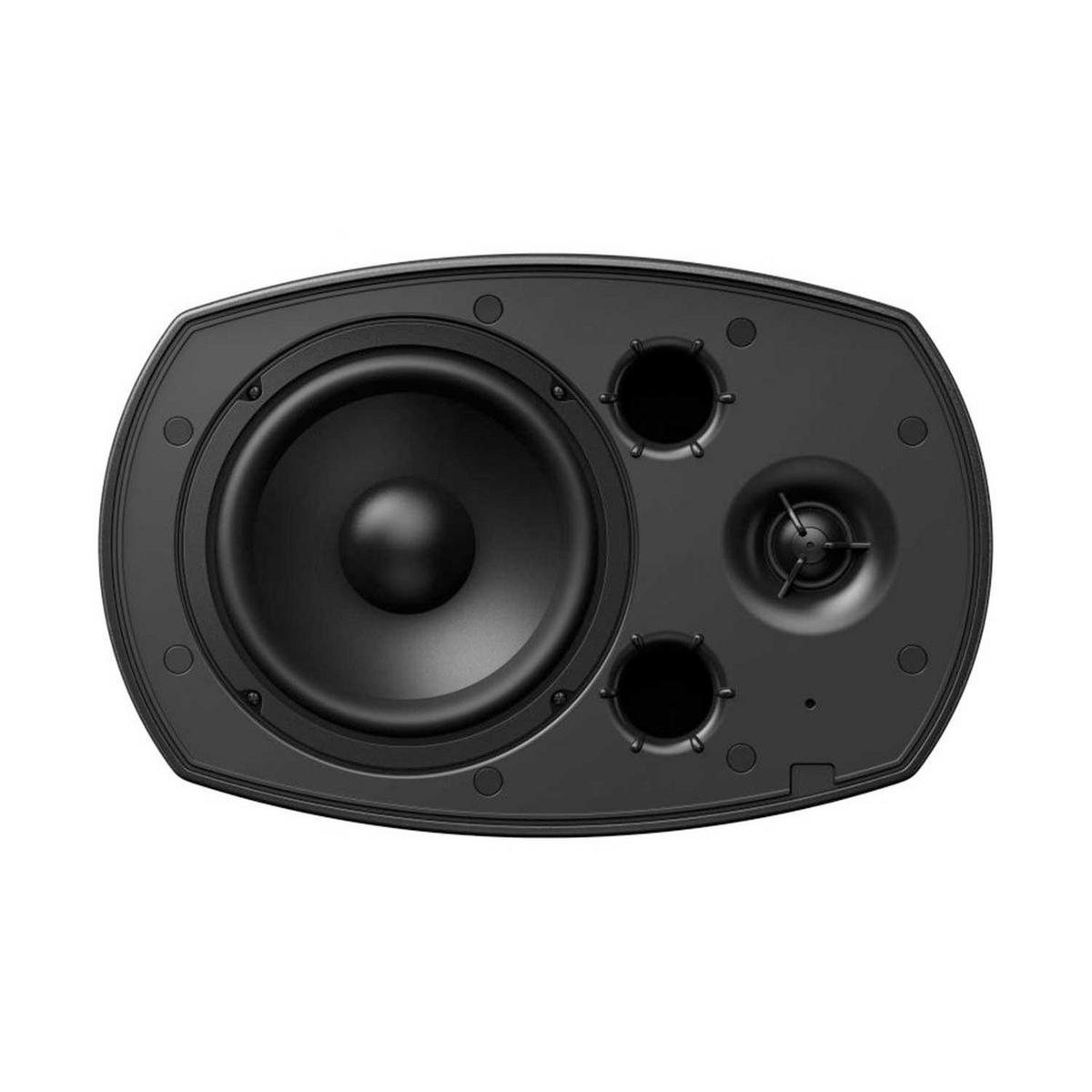

| Driver Configuration | LF: 6" (152 mm) cone HF: 1" (25 mm) silk dome tweeter |
| Connectors | Euroblock (4 pin) × 1 (input: +/−, loop-thru: +/−) |
| Dimensions (W x H x D) | 214.1 x 332.3 x 183.5 mm |
| Weight | 5.1 kg |
| Environmental Rating | IP54 |
The CM-S56T provides powerful, clear sound across a broad frequency range, with smooth high-end definition and impactful low frequencies. Its flexible mounting options and wide dispersion angle simplify installation and reduce the number of speakers required. The sleek industrial design enhances visual appeal in any commercial space, while its IP54 rating assures reliable performance even in semi-exposed conditions.
Q: Can this speaker be used outdoors?
A: Yes, the CM-S56T has an IP54 rating, making it suitable for covered outdoor areas where it’s protected from direct rainfall or heavy moisture.
Q: Does the speaker include mounting hardware?
A: Yes, it includes a robust U-bracket with precise angle adjustments for flexible and secure installation.
Q: Can I use this with both 100V line and 8Ω systems?
A: Absolutely. The built-in transformer allows for compatibility with 70V/100V line systems and a bypass option for 8-ohm installations.
Q: What type of connector is used?
A: The speaker uses a 4-pin Euroblock connector, including input and loop-through connections for streamlined wiring.
Q: Is the speaker available in multiple colours?
A: Yes, the CM-S56T is available in black or white, allowing you to match it seamlessly with your venue’s décor.
