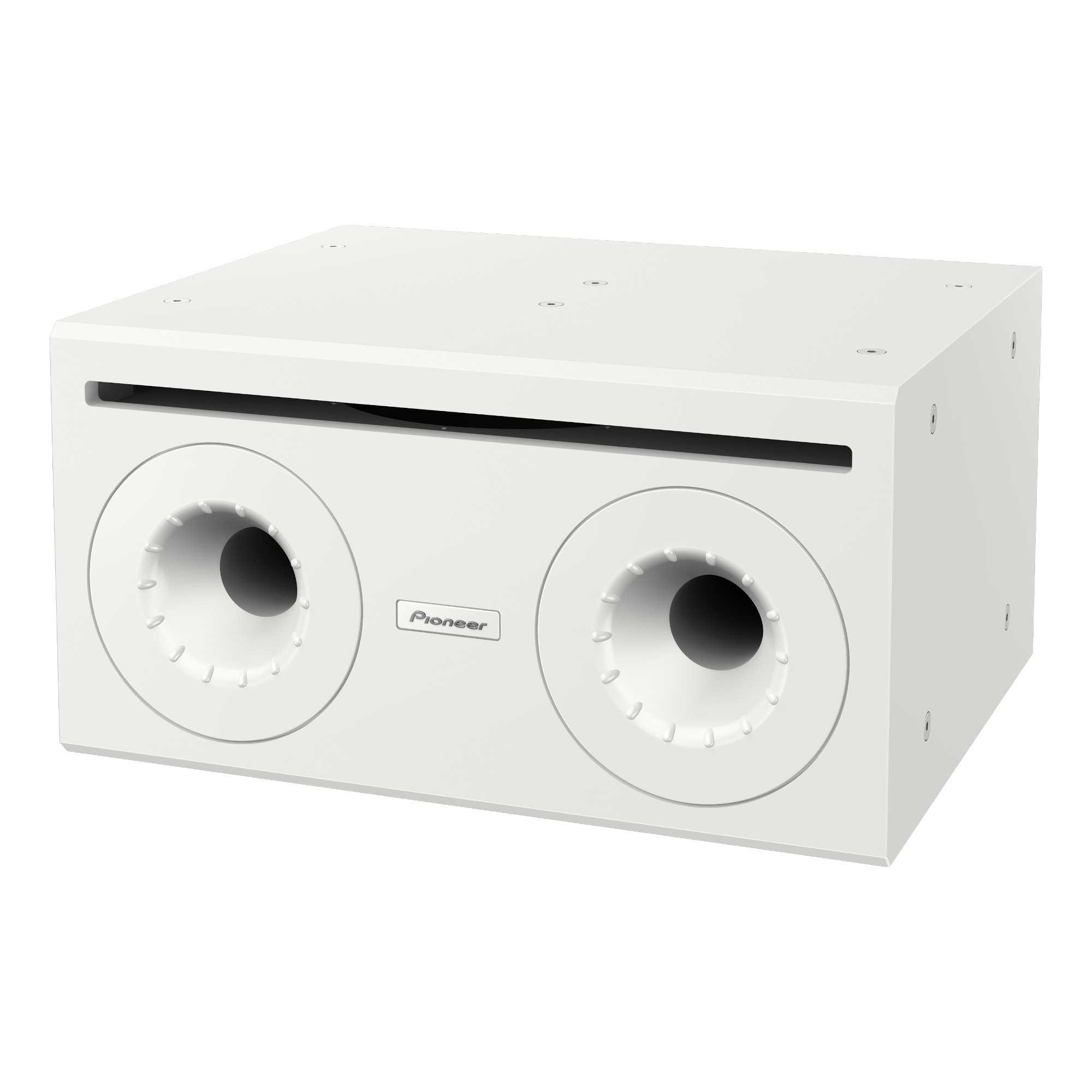

The Pioneer Professional CM-510ST-W is a high-performance 10-inch surface-mount subwoofer designed to deliver rich, punchy bass with minimal distortion. Ideal for various commercial environments such as restaurants, bars, retail spaces, and offices, this subwoofer enhances audio systems by providing deep low-frequency reinforcement. Its compact design and flexible mounting options make it suitable for both floor and wall installations, ensuring seamless integration into diverse settings.
Constructed with a robust 50-litre enclosure, the CM-510ST-W employs the Kelton method to filter out unwanted mid and high-range frequencies, resulting in pure bass output. The newly developed Vortex Bass Accelerator technology ensures smooth airflow, eliminating unwanted vibrations and delivering a tight bass response. The subwoofer is available in a white finish and blends discreetly into various interiors. Its versatile design allows for floor placement or secure mounting on walls or ceilings using the integrated M8 holes, providing flexibility in installation to suit different spatial requirements.
| Specification | Details |
|---|---|
| Loudspeaker Type | Kelton method subwoofer |
| Frequency Response (-10 dB, Typical) | 45 Hz - 150 Hz |
| Sensitivity (1W/1m) | 95 dB (half space) |
| Nominal Impedance | 8 Ω |
| Power Handling (RMS/Program) | 200 W / 400 W |
| Transformer Taps | 70V: 200W / 100W / 50W / 25W 100V: 200W / 100W / 50W |
| Maximum SPL | 124 dB (peak, half space) |
| Driver Configuration | 10" (250 mm) cone |
| Connectors | Euroblock (4 pin) × 1 (input: +/-, loop-through: +/-) |
| Dimensions (W x H x D) | 260.0 x 500.0 x 400.0 mm (10.23" x 19.69" x 15.75") |
| Weight | 17.9 kg (39.5 lbs.) |
| Enclosure Finish | White: Wood with polyurethane paint |
| Mounting Points | 20 × M8 threaded mounting points |
The CM-510ST-W delivers deep, responsive low-end that enhances the overall audio experience in commercial settings. Its design effectively eliminates unwanted vibrations, ensuring clear and distortion-free low-frequency reproduction. The subwoofer's flexible impedance options and versatile mounting capabilities make it suitable for various installation scenarios, providing both installers and end-users with a reliable and adaptable audio solution.
Q: What is the Kelton method used in the CM-510ST-W subwoofer?
A: The Kelton method involves using a sealed chassis with a duct to extract bass sounds while acoustically filtering out mid-to-high-range frequencies, resulting in pure and smooth bass reproduction.
Q: Can the CM-510ST-W be mounted on walls or ceilings?
A: Yes, the subwoofer features M8 holes that allow for secure mounting on walls or ceilings, in addition to floor placement, providing flexible installation options.
Q: Is it possible to connect two CM-510ST-W subwoofers to a single amplifier channel?
A: Yes, by connecting two subwoofers, the impedance drops to 4 ohms, enabling efficient use of a single amplifier channel for both units.
Q: What is the Vortex Bass Accelerator technology in the CM-510ST-W?
A: The Vortex Bass Accelerator incorporates ribs within the bass-reflex port to ensure smooth airflow, maximising low-frequency performance and eliminating unwanted vibrations for a cleaner bass response.
Q: In what colour is the CM-510ST-W available?
A: The subwoofer is available in a white finish, allowing it to blend seamlessly into various interior designs.
