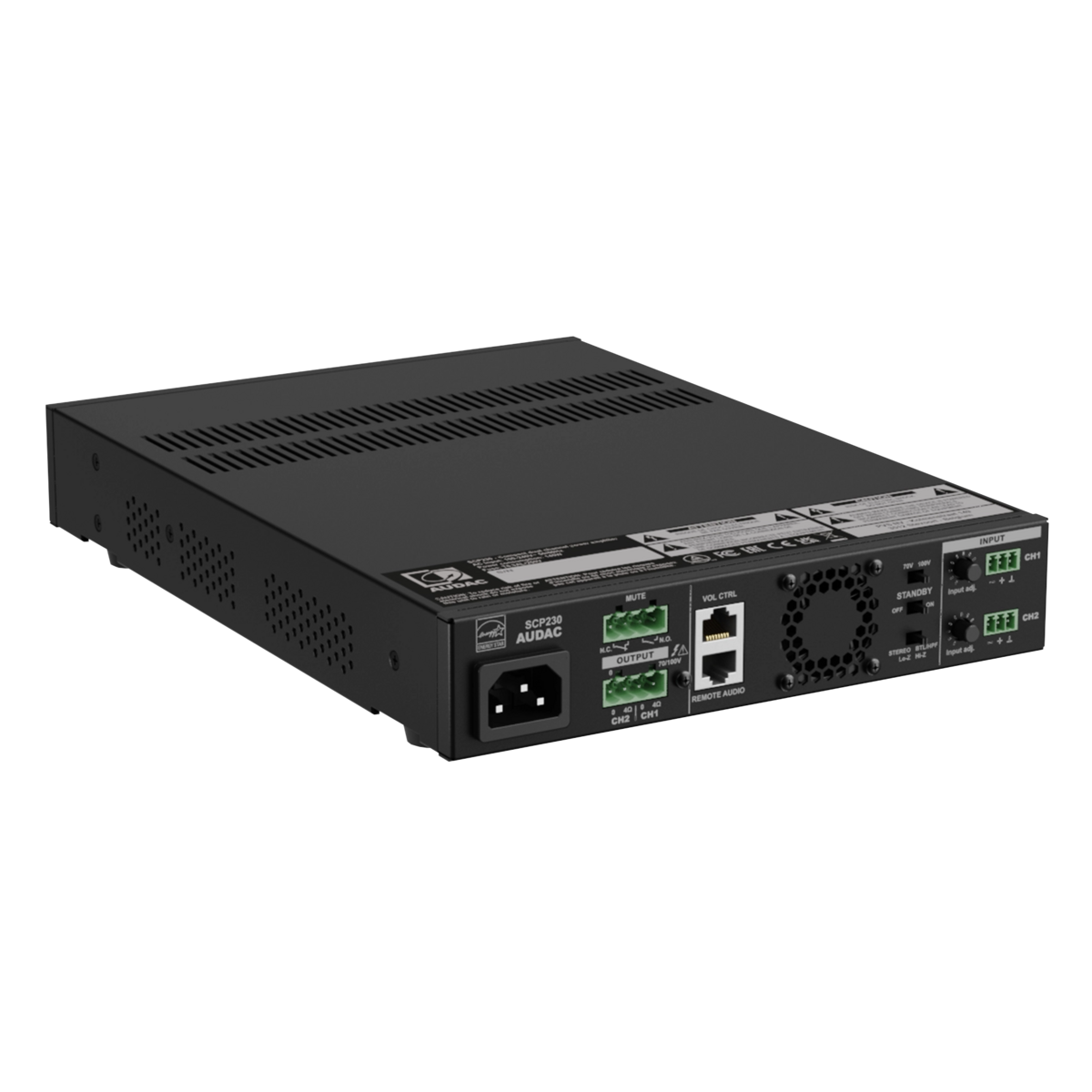

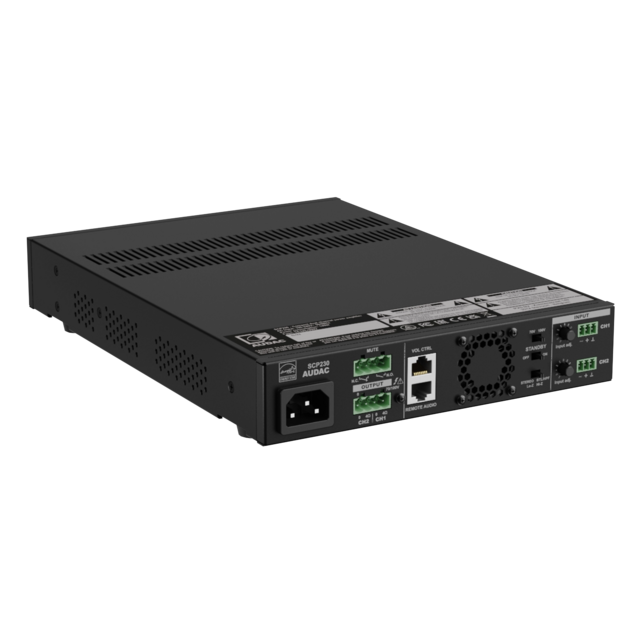

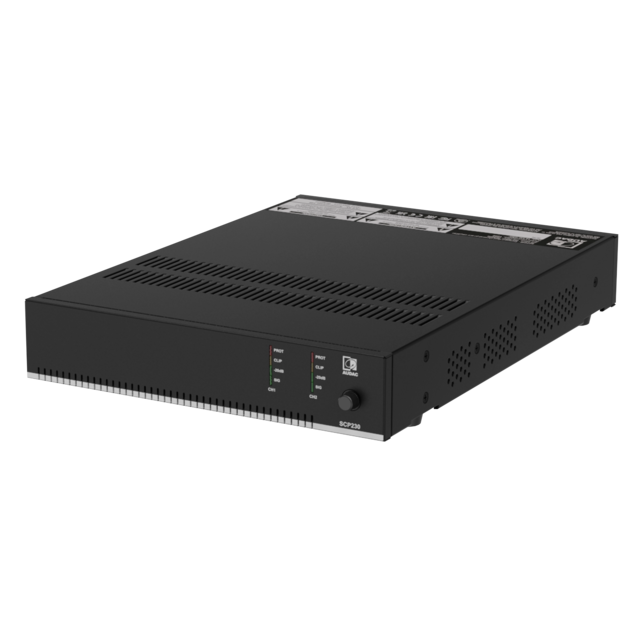

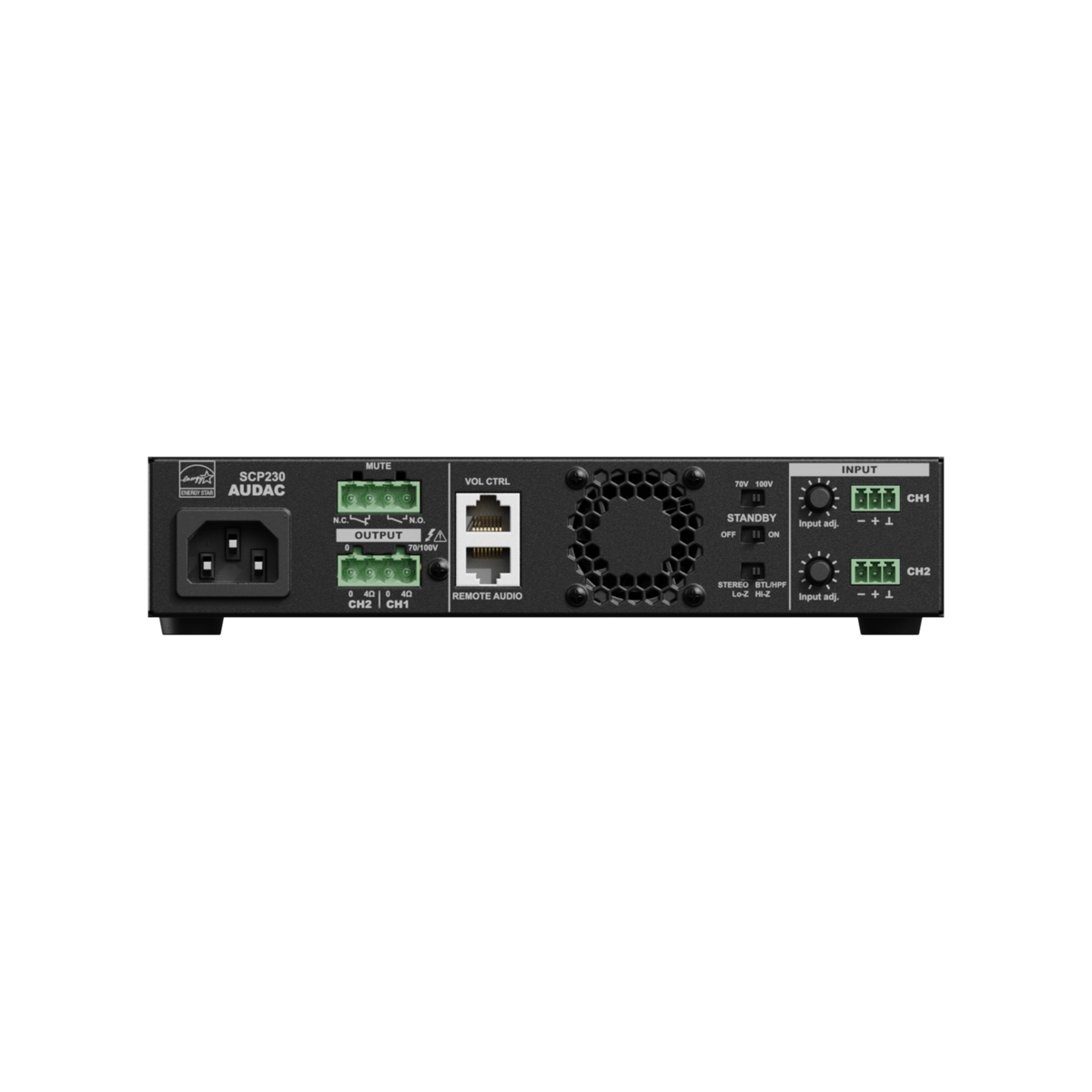

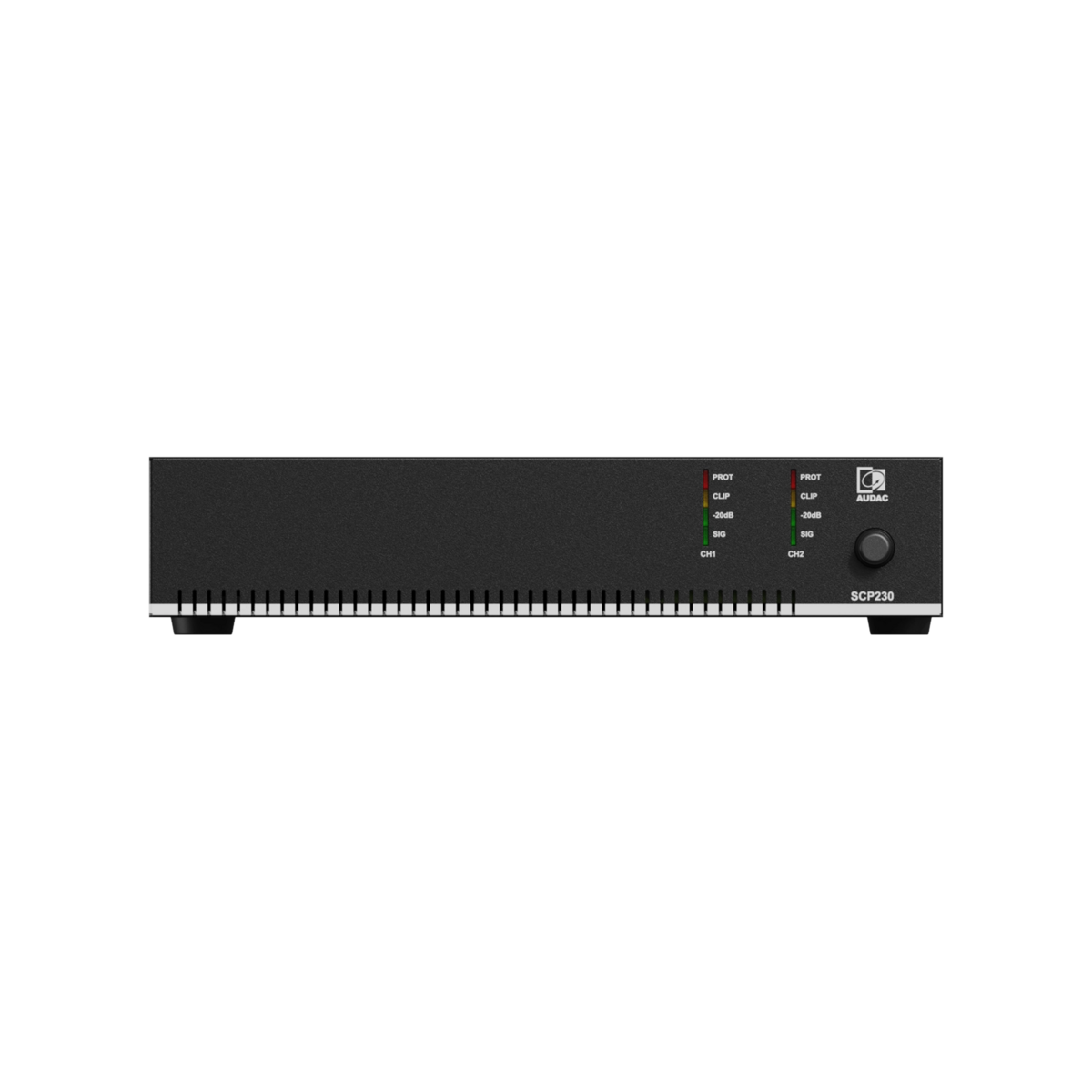

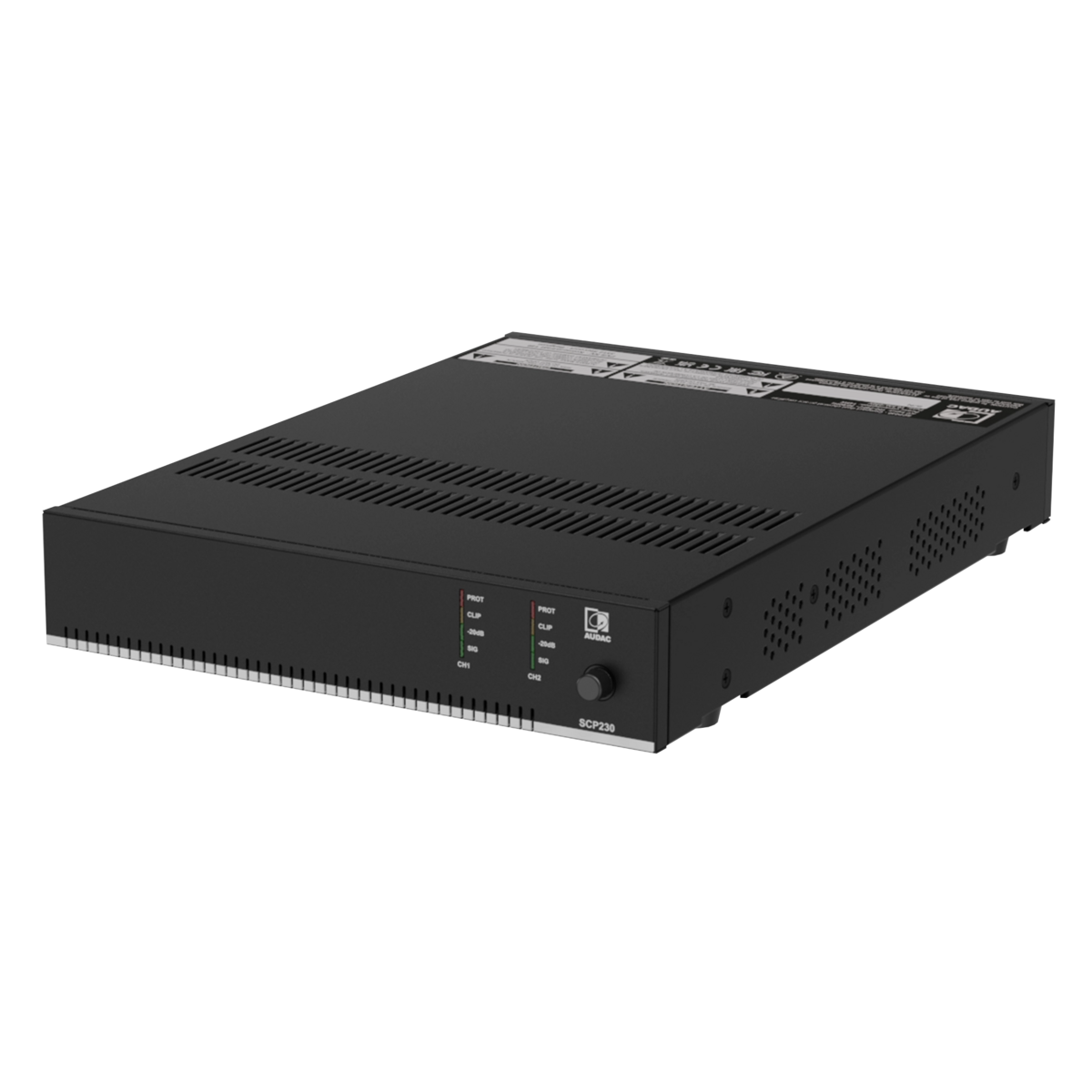

The Audac SCP230 is a high-performance, compact dual-channel Class-D power amplifier designed for professional audio installations. Delivering 2 x 300W at 4Ω in stereo mode or 600W in 70/100V bridge mode, it is ideal for commercial environments such as retail spaces, hospitality venues, educational institutions, and corporate facilities. Its energy-efficient design, coupled with advanced thermal management, ensures reliable operation in demanding applications.
Housed in a robust steel enclosure, the SCP230 features a half 19-inch rack width and a 1U height, allowing for flexible installation options including standalone use, side-by-side mounting in a standard 19-inch rack, or integration with optional MBS310 series mounting adapters. The amplifier's active cooling system ensures optimal thermal performance, maintaining consistent operation without the need for additional ventilation measures.
| Specification | Details |
|---|---|
| Power Output | 2 x 300W @ 4Ω (Stereo); 2 x 150W @ 8Ω (Stereo); 600W @ 70/100V (Bridge) |
| Frequency Response | 20 Hz – 20 kHz (±3 dB) |
| Total Harmonic Distortion (THD+N) | < 0.05% @ 1 kHz |
| Signal-to-Noise Ratio | > 95 dB |
| Inputs | 2 x 3-pin Euro Terminal Block (Balanced Line) |
| Outputs | 1 x 4-pin Euro Terminal Block |
| Remote Control | RJ45 connector for WP2xx series wall panels |
| Cooling System | Temperature-controlled fan |
| Power Supply | 100–240V AC, 50/60 Hz |
| Dimensions (W x H x D) | 217.5 x 44 x 300 mm |
| Weight | 2.7 kg |
| Construction | Steel enclosure |
| Mounting Options | Half 19-inch rack, 1U height; optional MBS310 rackmount adapter |
Q: Can the SCP230 operate in both low-impedance and high-impedance configurations?
A: Yes, the SCP230 supports stereo operation at 4Ω or 8Ω, as well as bridged operation at 70/100V for high-impedance systems.
Q: Is the amplifier compatible with remote control panels?
A: Absolutely. The SCP230 features an RJ45 connector for seamless integration with Audac's WP2xx series wall panels and volume controllers.
Q: Does the SCP230 have any energy-saving features?
A: Yes, it is Energy Star certified and includes an auto standby mode that reduces power consumption during periods of inactivity.
Q: What protection mechanisms are built into the SCP230?
A: The amplifier includes comprehensive protection against over-temperature, short circuits, and DC faults to ensure safe and reliable operation.
Q: What are the mounting options for the SCP230?
A: The SCP230 can be mounted in a half 19-inch rack space, used standalone, or installed side-by-side in a standard 19-inch rack using optional MBS310 series mounting adapters.
