The Audac WP200 is a premium remote volume controller designed for seamless integration with the SCP series amplifiers and other compatible devices. Ideal for both commercial and professional audio installations, it offers precise, stepless analogue volume control via 0–10 V linear voltage regulation. Its sleek design and robust construction make it suitable for a variety of environments, including offices, retail spaces, and hospitality venues.

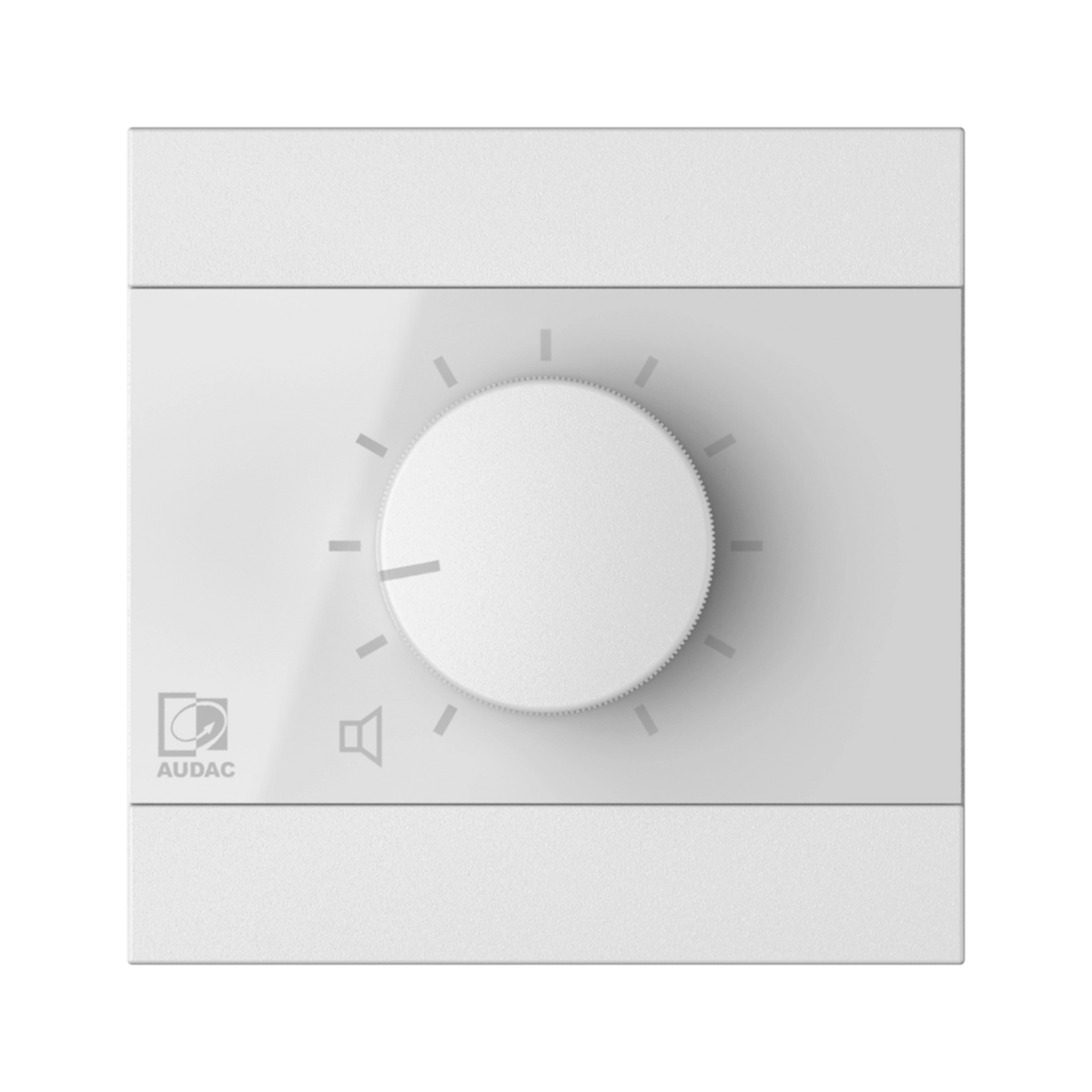

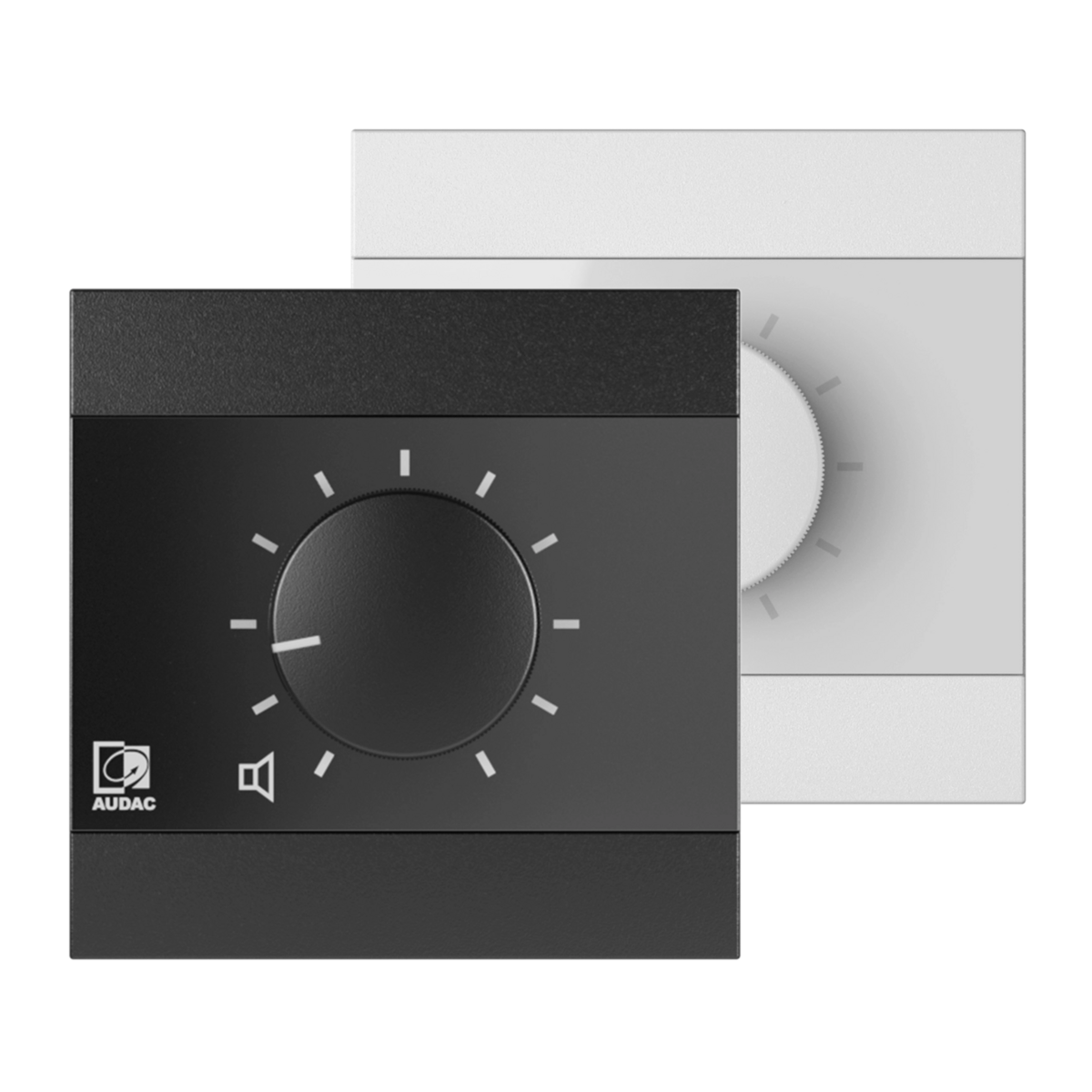

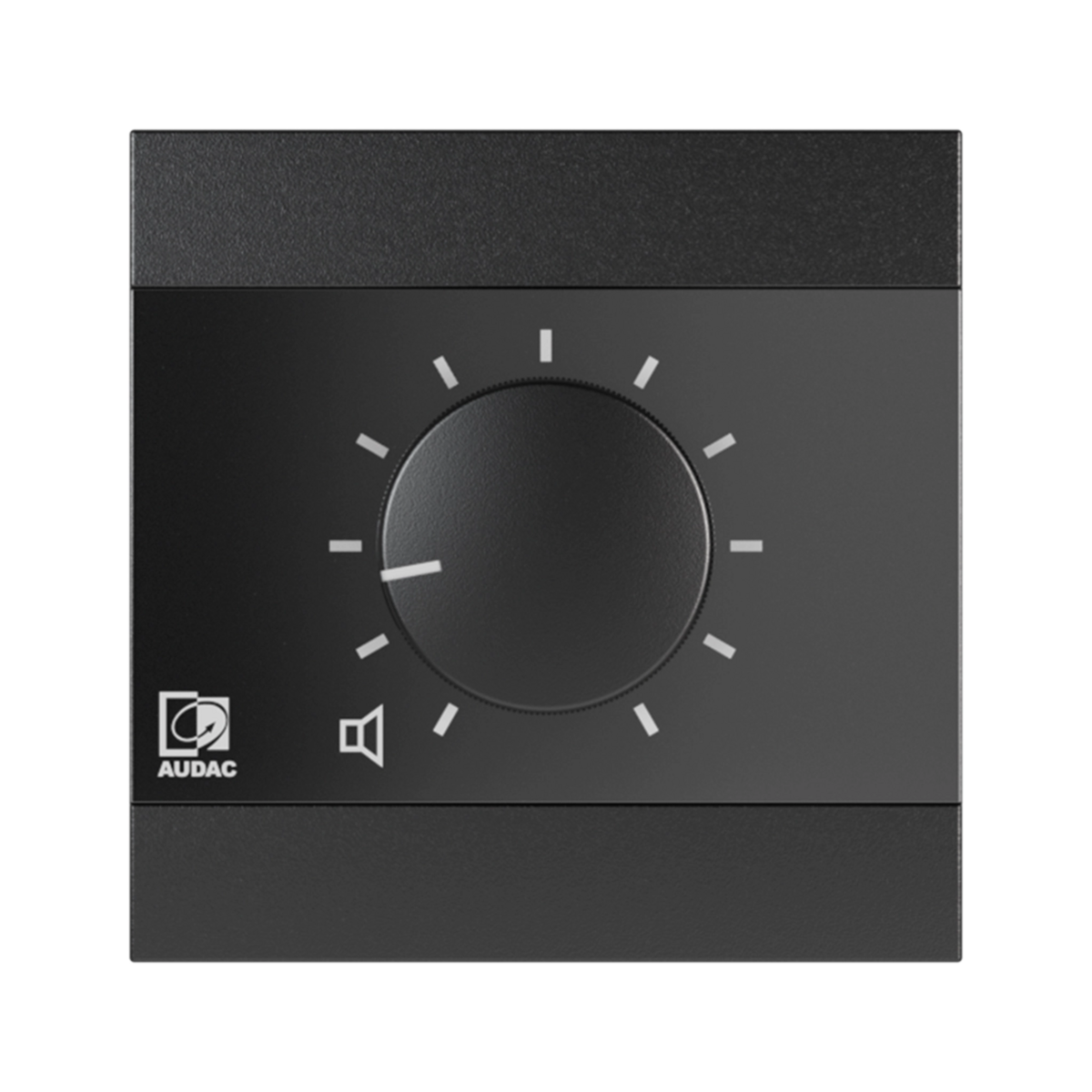

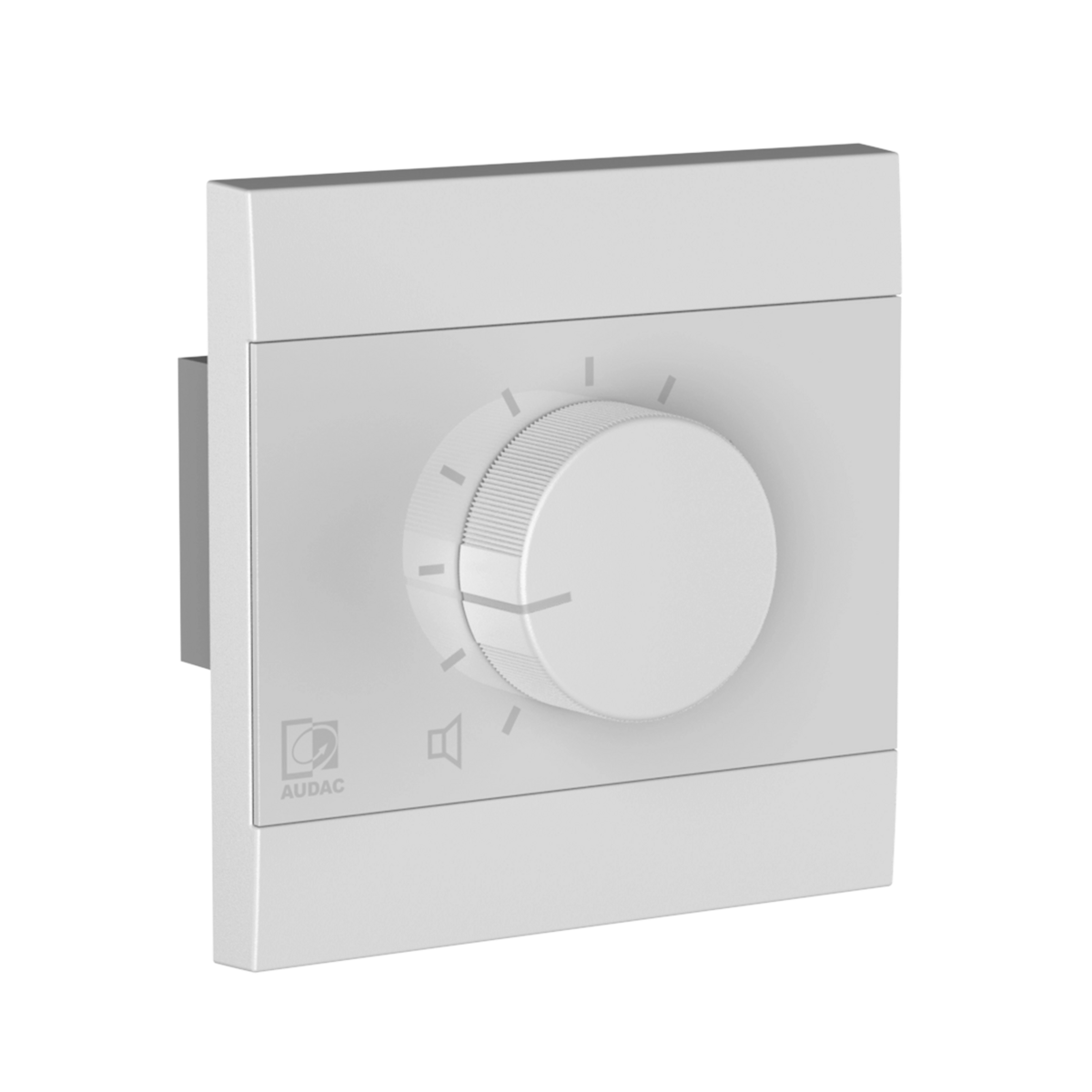

Constructed with a high-grade ABS front panel finished with hardened glass, the WP200 combines durability with aesthetic appeal. Its compact dimensions (80 x 80 mm) ensure compatibility with standard EU-style wall boxes, facilitating easy installation in both solid and hollow walls. The controller is available in two colour variants: Black (RAL9005) and White (RAL9003), allowing it to blend seamlessly with diverse interior designs.
| Specification | Details |
|---|---|
| Power Source | Passive (requires connection to compatible device) |
| Control Voltage Range | 0–10 V DC |
| Connection Type | 8-pin Euro Terminal Block |
| Dimensions (W x H x D) | 80 x 80 x 52.5 mm |
| Built-In Depth | 35 mm |
| Weight | 65 g |
| Front Finish | ABS with Hardened Glass |
| Colour Options | Black (RAL9005), White (RAL9003) |
| Compatible Devices | SCP Series Amplifiers, AMP22, and other 0–10 V compatible devices |
| Mounting Options | Surface Mount (WB200), Flush Mount for Solid Walls (WB45SI/FS), Flush Mount for Hollow Walls (WB45S/FG) |
The WP200 offers reliable and precise volume control, enhancing the overall audio experience in various settings. Its stepless regulation ensures smooth transitions without abrupt changes in volume, providing a comfortable listening environment.
Q: Is the WP200 compatible with devices other than the SCP series amplifiers?
A: Yes, the WP200 is compatible with any device that accepts a 0–10 V DC control voltage, including the AMP22 and other similar systems.
Q: Can the WP200 be installed in both solid and hollow walls?
A: Absolutely. The WP200 is compatible with various installation boxes designed for both solid (WB45SI/FS) and hollow walls (WB45S/FG), as well as surface mounting options (WB200).
Q: Does the WP200 require an external power source?
A: No, the WP200 is a passive device and does not require an external power source. It operates by sending a control voltage to the connected amplifier or device.
Q: How is the WP200 connected to the amplifier?
A: The WP200 connects to the amplifier via an 8-pin Euro Terminal Block, using a twisted pair cable (CAT5E or better). The amplifier should have a corresponding RJ45 input for remote volume control.
Q: Is the volume control linear or logarithmic?
A: The WP200 provides a linear control voltage output (0–10 V), allowing for smooth and consistent volume adjustments across the entire range.
