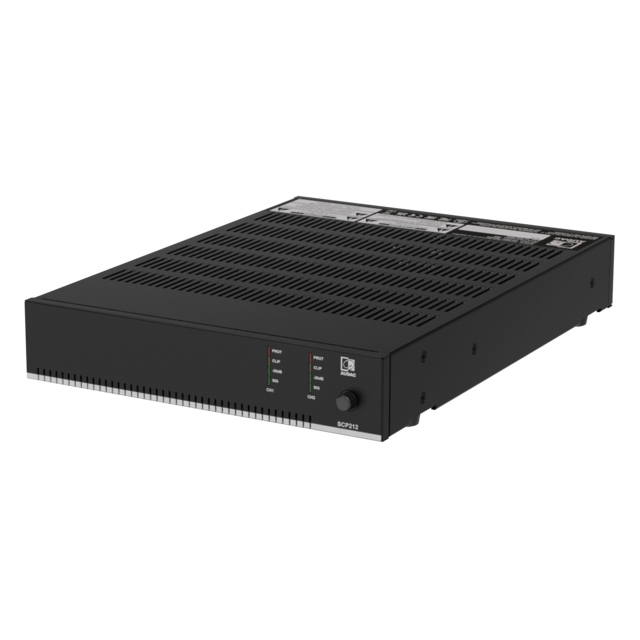

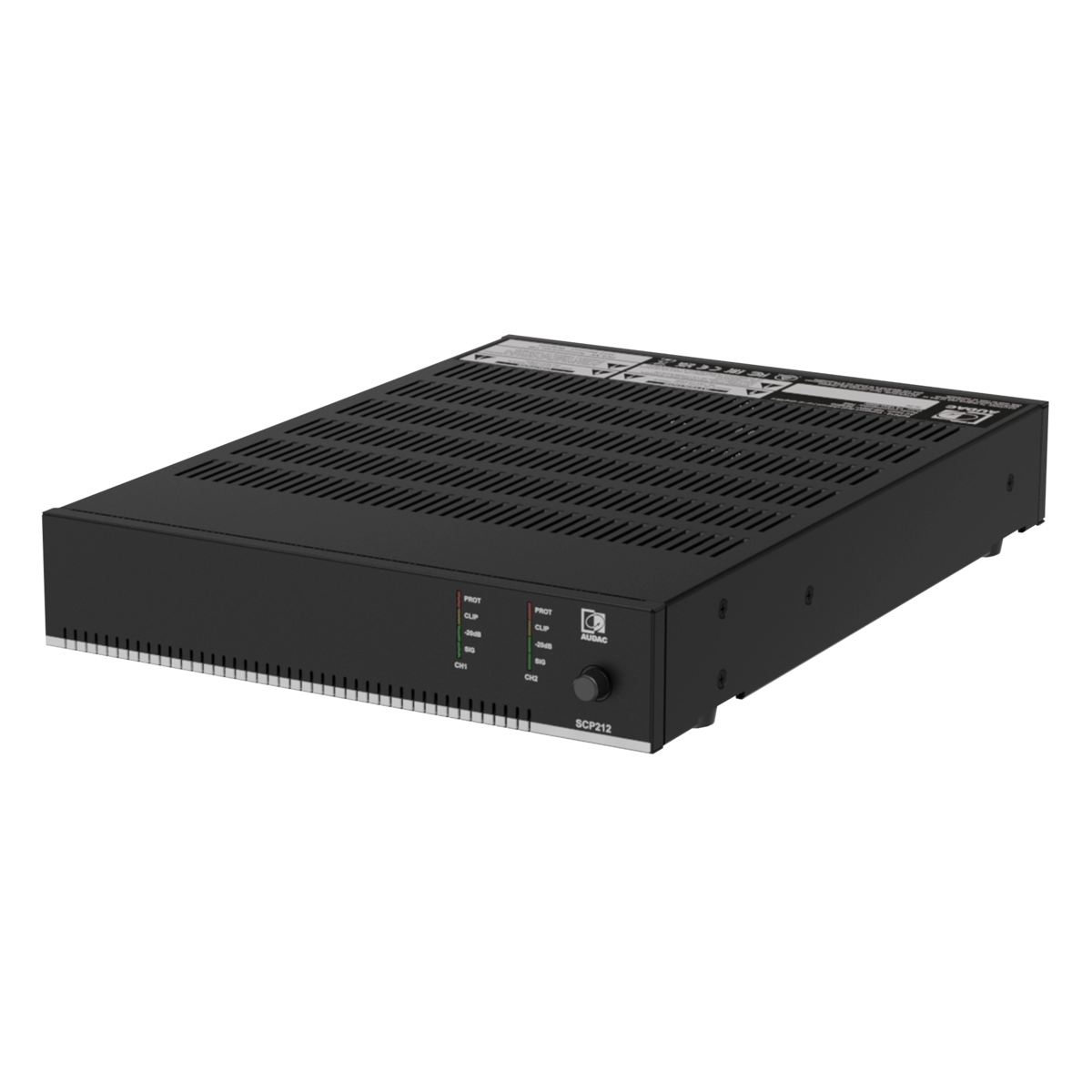

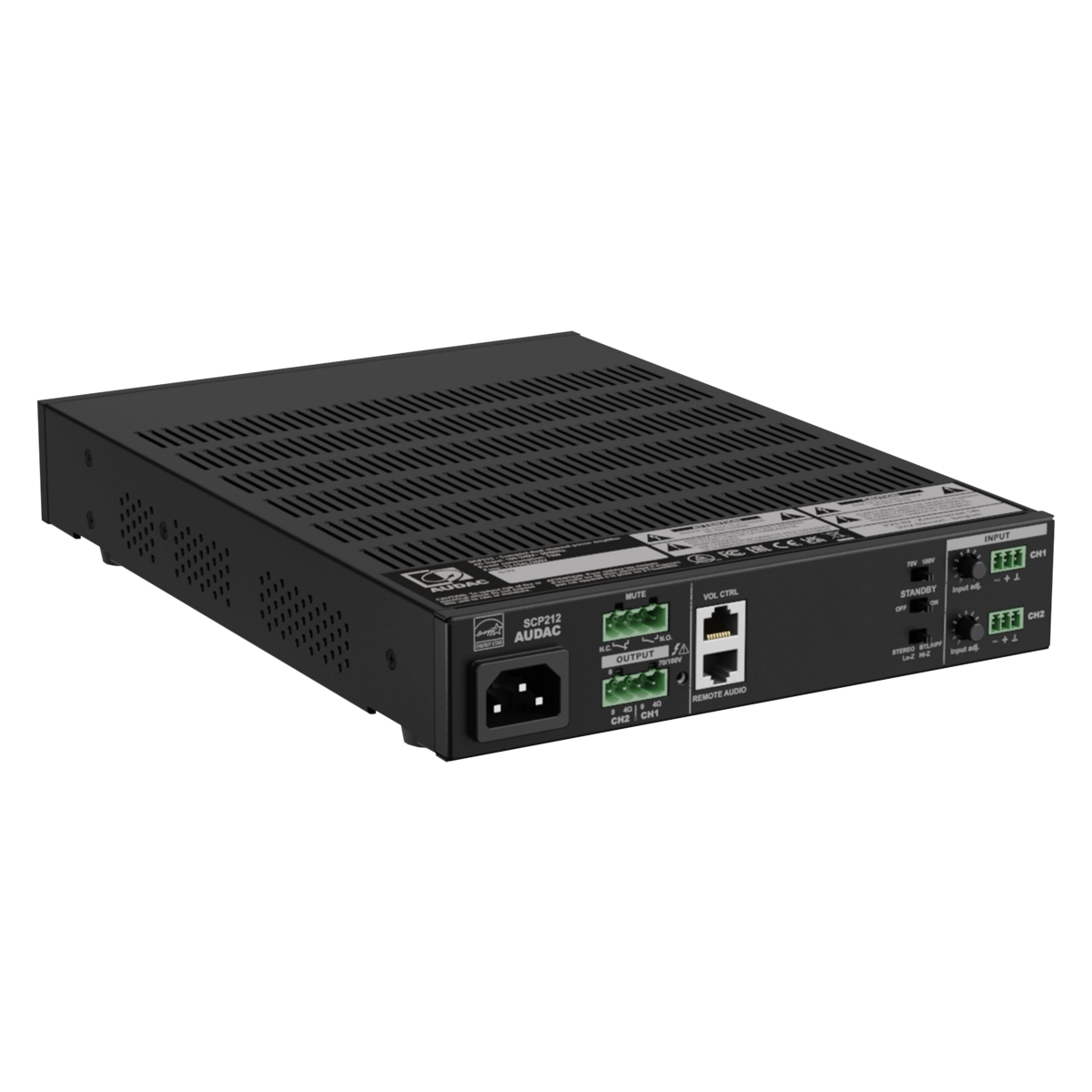

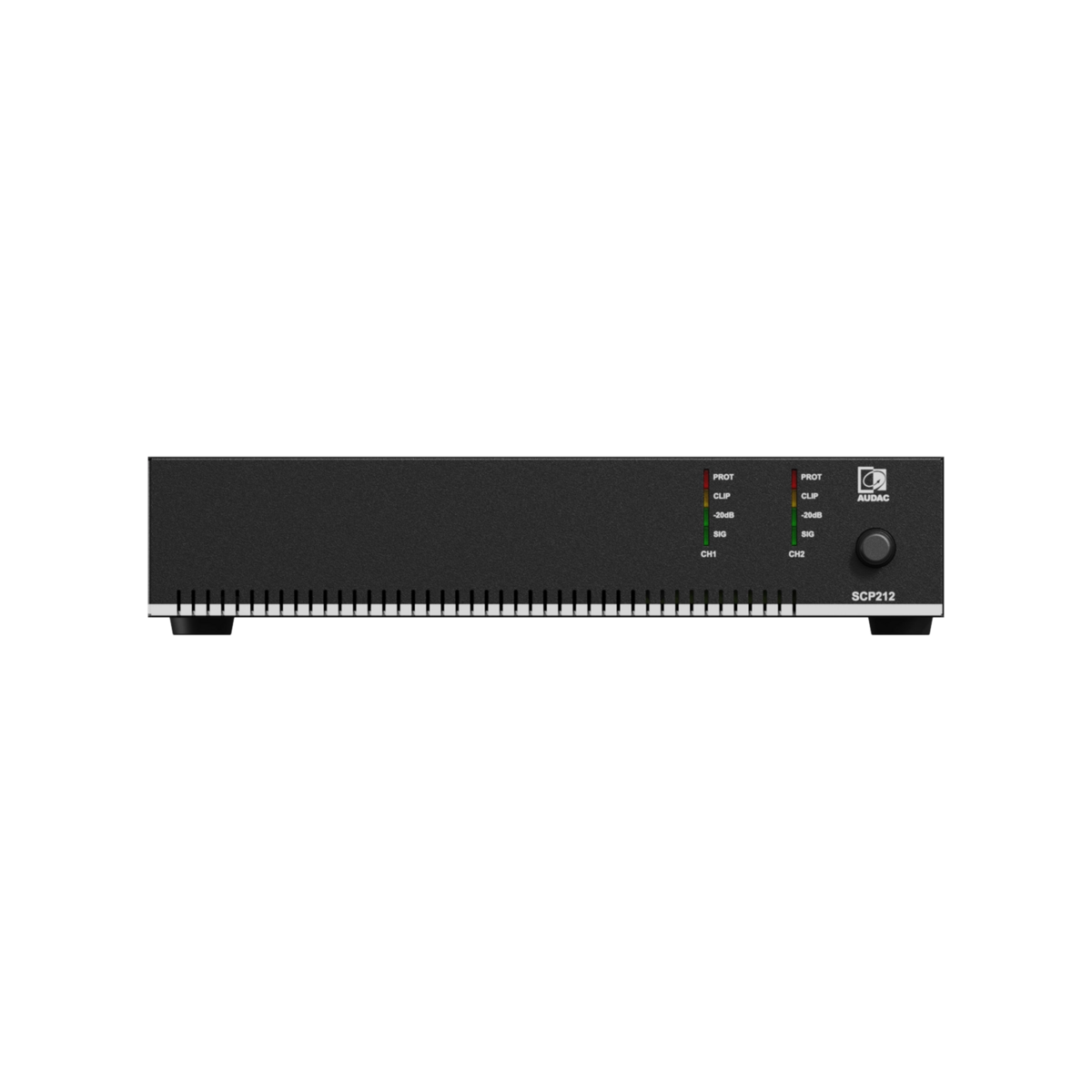

The Audac SCP212 is a compact, dual-channel Class-D power amplifier engineered for professional audio installations. Delivering 2 × 120W at 4 Ω in stereo mode or 240W in 70/100V bridge mode, it is ideal for commercial applications such as hospitality venues, retail spaces, educational institutions, and corporate environments. Its ENERGY STARRegistered certification attests to its energy efficiency, while its compatibility with the WP2xx series remote wall input panels offers versatile control options.
Housed in a robust steel chassis, the SCP212 features a half 19" rack space design, allowing for flexible installation--either standalone or side-by-side in a standard 19" rack using optional MBS310 series mounting adapters. Its convection-cooled system ensures silent operation without the need for fans, enhancing reliability and longevity in continuous-use scenarios.
| Specification | Details |
|---|---|
| Power Output (Stereo) | 2 × 120W @ 4 Ω; 2 × 60W @ 8 Ω |
| Power Output (Bridge) | 240W @ 70/100V |
| Frequency Response | 20 Hz - 20 kHz (±3 dB) |
| Total Harmonic Distortion + Noise (THD+N) | < 0.05% @ 1 kHz |
| Signal-to-Noise Ratio | > 90 dB |

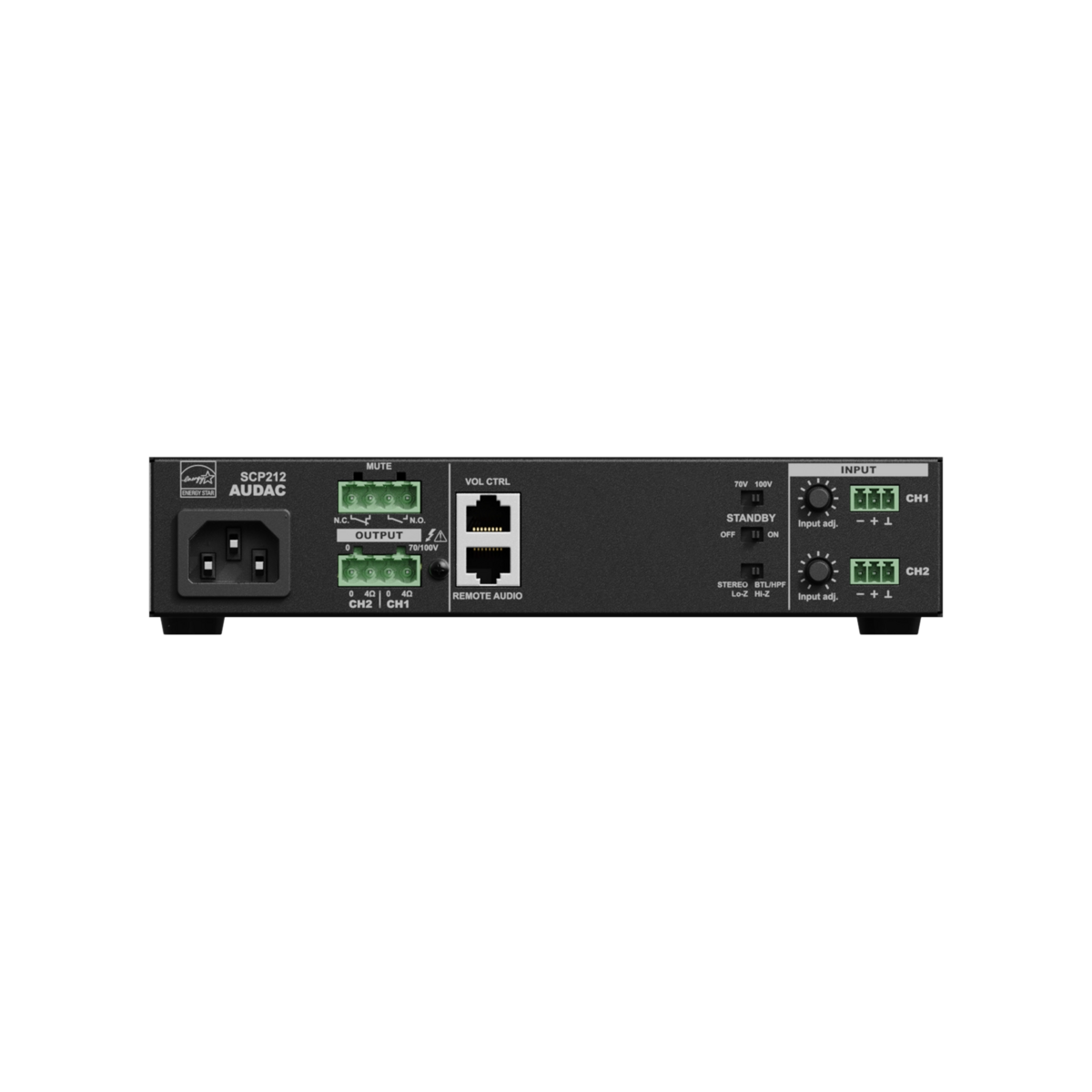

| Inputs | 3-pin Euro Terminal Block (Pitch - 3.81 mm); IEC C14 Connector |
| Outputs | 4-pin Euro Terminal Block (Pitch - 5.08 mm) |
| Control Interfaces | RJ45 for WP2xx/VC series; Gain control potentiometers; Stereo Low Z & Mono High Z switch; 70/100V switch |
| Cooling | Convection cooled |
| Technology | Class-D |
| Power Supply | 100 ~ 240 V AC / 50 ~ 60 Hz |
| Dimensions (W x H x D) | 217.5 × 44 × 300 mm |
| Weight | 2.70 kg |
| Mounting Options | 1/2 19" / 1 HE rack or tabletop |
| Additional Features | Priority mute contact; ENERGY STARRegistered certified; Standby mode switch |
The SCP212 delivers high-quality audio amplification with minimal distortion, ensuring clarity and fidelity across various applications. Its passive cooling system guarantees silent operation, making it suitable for noise-sensitive environments. The amplifier's energy-efficient design, coupled with its compact form factor, makes it an excellent choice for installations where space and power consumption are critical considerations.
Q: Can the SCP212 operate in both low-impedance and high-impedance configurations?
A: Yes, the SCP212 supports stereo low-impedance (4/8 Ω) and 70/100V bridge mode configurations, providing flexibility for various installation requirements.
Q: Is the SCP212 compatible with remote control panels?
A: Absolutely. It integrates seamlessly with the WP2xx series remote wall input panels and VC series volume controllers via an RJ45 connection.
Q: Does the amplifier have a standby mode to save energy?
A: Yes, the SCP212 features an energy-saving standby mode that activates after periods of inactivity, contributing to reduced power consumption.
Q: What cooling mechanism does the SCP212 use?
A: The amplifier employs a passive convection cooling system, eliminating the need for fans and ensuring silent operation.
Q: What are the mounting options for the SCP212?
A: The SCP212 can be mounted in a half 19" rack space, either standalone or side-by-side with another unit in a standard 19" rack using optional MBS310 series mounting adapters. It can also be used as a tabletop unit.
