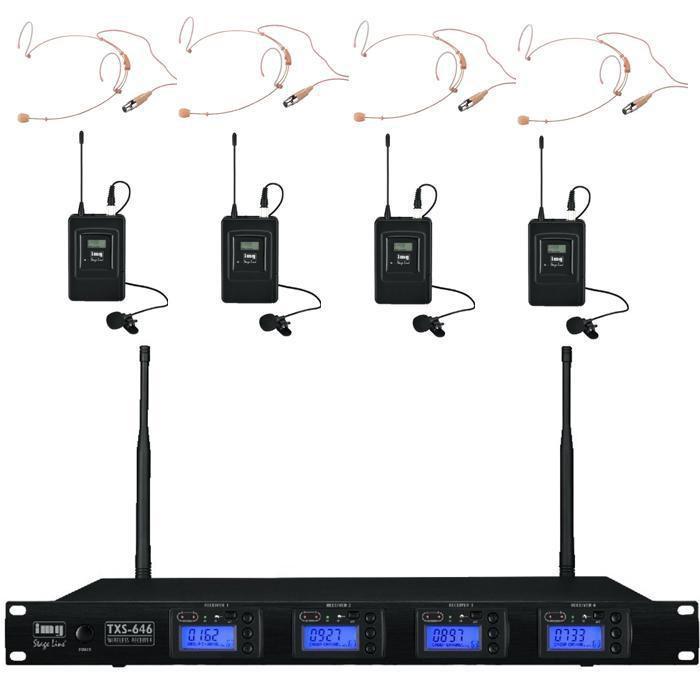

Quad Wireless Microphone System With 4 x Headset & Tie Clip Mics

High Quality IMG Stageline Quad Headset Microphone system.

Channel 38 shared license. You can run upto 12 microphones simultaneously. If you require more than 12 microphones, please call for advice on achieving this.

Features (TXS-646 Receiver):

• Channel 38 - Shared License
• ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
• Automatic scan
• True diversity system with removable antennas (BNC connection)
• Volume and squelch can be adjusted for each channel
• LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED display for audio signal of each channel
• XLR output for each channel, bal.
• 6.3mm output for mixed signal
• Stable metal housing
• Supplied with PSU
• 482mm (19") rack installation, 1RS

Technical Specifications (TXS-646 Receiver):

• Channel 38 - Shared License
• Continuously adjustable sensitivity
• LCD for group/channel, audio level and battery status
• Power supply via 2 x 1.5V battery AA size (not supplied)

Features(TXS-606HSE Belt Pack Transmitter):

• Channel 38 - Shared License
• Continuously adjustable sensitivity
• LCD for group/channel, audio level and battery status
• Suitable for the combination with headband/earband microphones and tie clip microphones with 3-pole mini XLR connector
• Belt clip
• Power supply via 2 x 1.5 V battery AA size (not supplied)

Technical Specifications(TXS-606HSE Belt Pack Transmitter):

• Carrier frequency - Channel 38
• Transmitting power 10 mW
• Audio frequency range 30-18,000 Hz, ±3 dB
• Frequency stability ±0.005 %
• Operating time > 8 h
• Dimensions 61x106x27 mm
• Weight 96 g

Technical Specifications(HSE-150/SK Headset Microphone):

• System back electret/omnidirectional
• Frequency range 20-20,000 Hz
• Impedance 1 kΩ
• Sensitivity 8 mV/Pa/1 kHz
• Max. SPL 130 dB
• Power supply 1.5-9 V DC current
• Admiss. ambient temp. 0-40 °C
• Weight 7 g
• Connection 3-pole mini XLR
