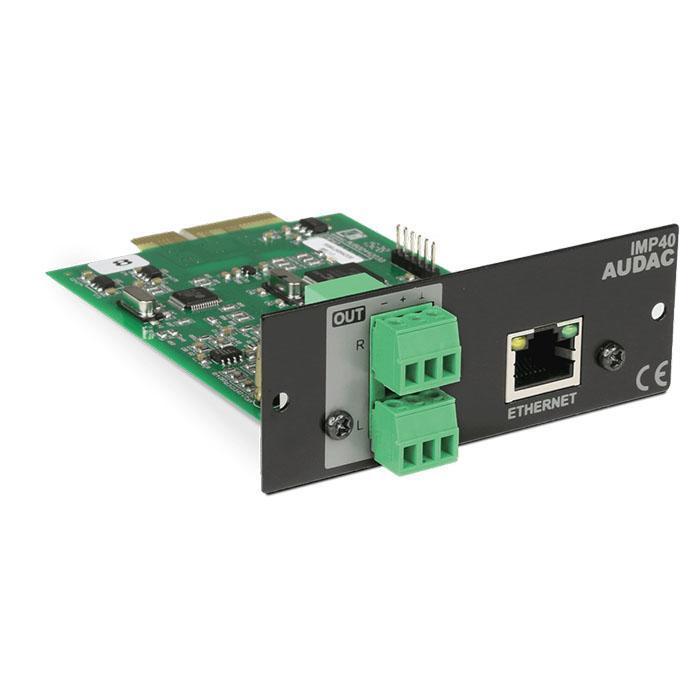

Audac IMP40 SOURCECON™ INTERNET AUDIO PLAYER MODULE

The IMP40 is a professional internet radio player featuring SourceCon(TM) modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration. The IMP40 features the unique Linum(TM) technology which eliminates any unwanted behaviour such as sudden channel hopping or music stops. When the connection is interrupted, automatic switching to inserted media carriers (USB drives) avoids unpleasant silences in background music applications. The audio stream will be automatically and seamlessly restored afterwards. It synchronizes with the vTuner database which contains over 30.000 channels, allowing selection on different criteria such as genre, location, language, ... while custom streams can also be added to a preference list up to 100 entries. The input connection is implemented by an RJ45 type connector with indicator LED's on its panel, allowing connection to any ethernet network. The balanced stereo line output is connected through two 3-pin terminal block connections.

Specification:

• Connection - SourceCon(TM) interface card slot
• Inputs - RJ45 (Ethernet)
• Crosstalk (@ 1 kHz) - 80 dB
• THD+N (@ 1 kHz) - < 0.07%
• Supported filetypes - Streaming - MP3, WMA, AAC - Playback - MP3
• Compatible media - Playback - USB memory, USB HDD
• Compatible filesystems - Playback - FAT16, FAT32
• Outputs - Type - Balanced stereo line outputs - Level - +8 dB ~ -92 dB
• Frequency - Response (± 3 dB) - 20 Hz - 20 kHz
• Power - Consumption - 1.5 W
• Dimensions - 87 x 34.5 x 114 mm (W x H x D)
• Weight - 0.070 kg
• Mounting - SourceCon(TM) interface card slot
