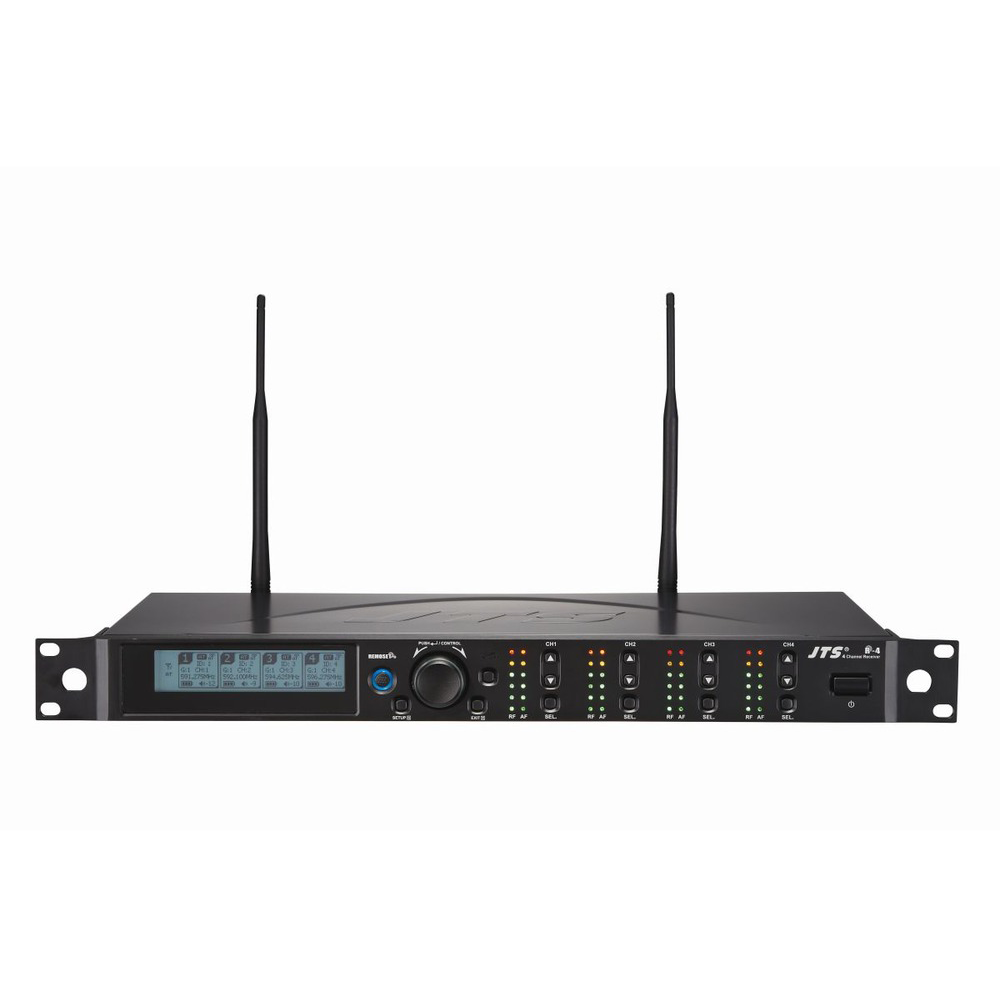

JTS R-4 Quad Channel Wireless Microphone Reciever

The JTS R-4 is our newest generation of quad multi-channel wireless technology.

It features 4 channels within a 1U, 19" rack mount chassis.

The system is designed with JTS newest generation of wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel receiver in a 1U, 19” rack mount chassis. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.

JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance

Specification:

• Net Dimension (WxHxD): 212.3mm x 38.3mm x 144mm
• Frequency Preparation: PLL Synthesized Control
• S/N Ratio: >105dB
• Display Contents: Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
• Audio Output Level: -12dB
• Squelch: Pilot Tone & Noise Mute
• Operation Voltage: 12V 1A
• Output Connector: 4 independent XLR outputs, and 1 Ôø?6.3mm and 1 XLR for mixed output
• Carrier Frequency Range: Options of 606.5 - 638MHz or 823 - 865MHz
• AF Output Impedance: 600Œ©

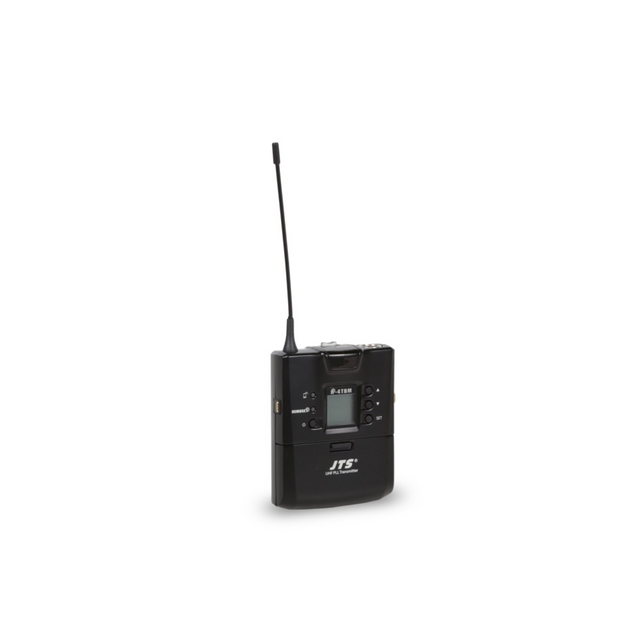

JTS R-4TBM Wirless Bodypack Transmitter

Features:

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Extended dynamic range and smooth frequency response.
• Adjustable transmission power between Low and High
• The panel Lock-On function prevents tampering and RF interruption
• Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

Specification:

• Net Dimension (WxHxD): 62 x 80.3 x 22.6mm
• Net Weight: 93g
• Frequency Preparation: PLL Synthesized Control
• Controls: Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
• Output Connector: 4 Pin mini XLR
• RF Outputs: High/Low
• Frequency Deviation: ±48KHz (Peak)
• Spurious Emissions: < -50 dBC
• Battery: UM3, AA x2
• Carrier Frequency Range: Options of 606.5 - 638MHz or 823 - 865MHz
• Audio Frequency Response: 50Hz - 18kHz
• Stability: < ±10KHz
• Chassis: Aluminium Alloy
• LCD Display: Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
