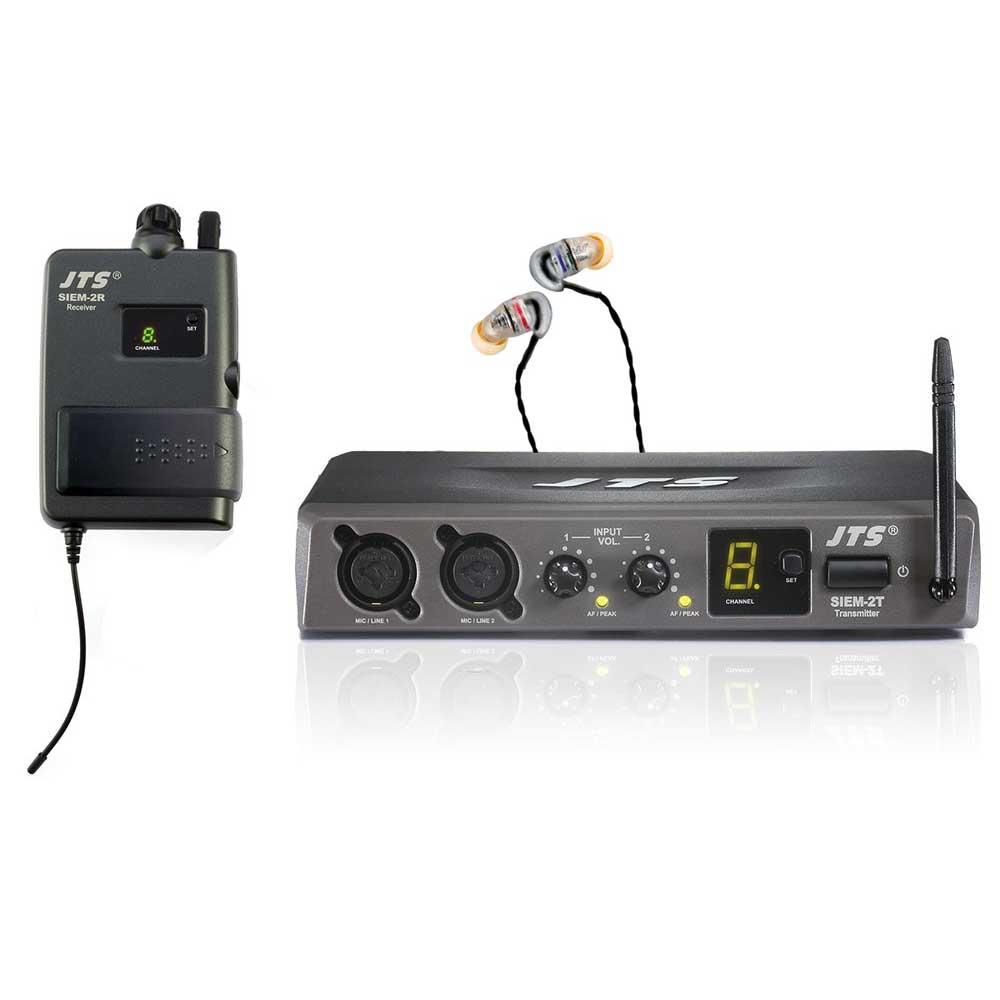

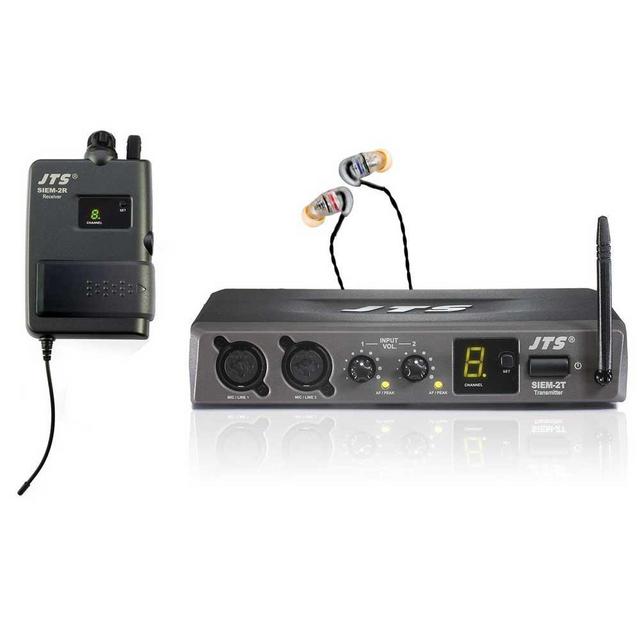

The JTS SIEM-2 In Ear Monitoring System is a complete, affordable mono in-ear monitoring system designed for reliable stage performance and professional audio monitoring. This kit includes the SIEM-2T transmitter, SIEM-2R bodypack receiver, and the IE-1 in-ear earphones, providing everything needed for clean, consistent monitoring in rehearsals, live shows, houses of worship, and touring setups. Operating on either licence-free Channel 70 (863–865MHz) or CH38–CH40 (region dependent), the SIEM-2 offers a straightforward and dependable alternative to traditional wedge monitoring, helping to reduce stage volume while improving clarity and giving performers more control.

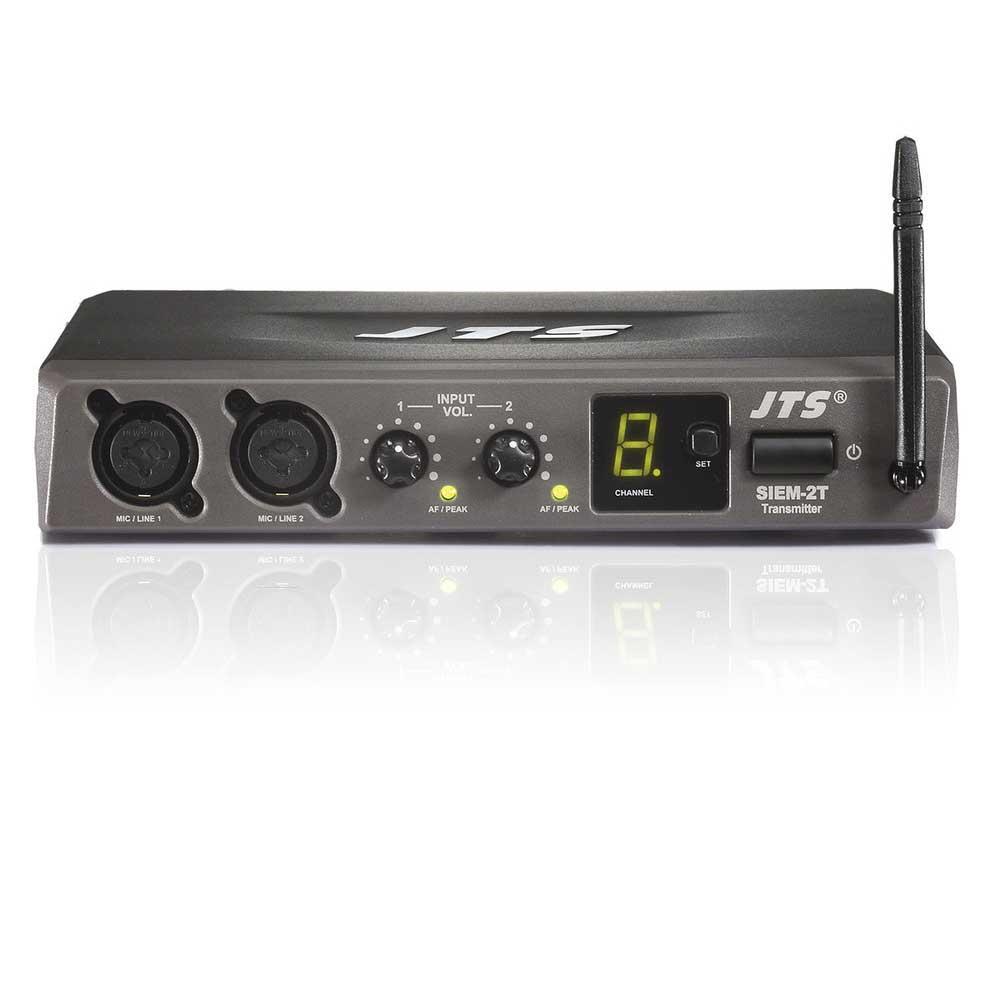

Built for practical stage use, the SIEM-2 system combines a robust transmitter with balanced dual XLR inputs and loop-through connectivity, allowing easy integration into mixing desks and monitor sends. The compact SIEM-2R bodypack receiver is designed for comfortable belt-worn operation and includes simple on/off, channel selection, and volume control for quick adjustment during a performance. The included IE-1 in-ear earphones feature a lightweight, dynamic design with a clear full-range response, making them suitable for vocals, instruments, and general stage monitoring. With reliable PLL synthesised control and clear LED channel displays, the SIEM-2 is engineered for straightforward setup and consistent performance.
| Specification | Details |
|---|---|
| Product Brand | JTS |
| System Model | SIEM-2 (SIEM-2T + SIEM-2R + IE-1) |
| System Type | Mono In-Ear Monitoring System |
| Operating Frequencies | 863–865MHz (Channel 70, licence-free) or CH38–CH40 (region dependent) |
| Included Components | SIEM-2T transmitter, SIEM-2R bodypack receiver, IE-1 earphones |
| Transmitter RF Output Power | 10 mW |
| Transmitter Nominal Frequency Deviation | ±40 kHz |
| Transmitter Audio Input Impedance | 20 kΩ |
| Transmitter Nominal Input Level | -20 dBV |
| Transmitter Maximum Input Level | 0 dBV |
| Transmitter Display | LED indicators (AF level, channel) |
| Transmitter Inputs | 2 × balanced XLR |

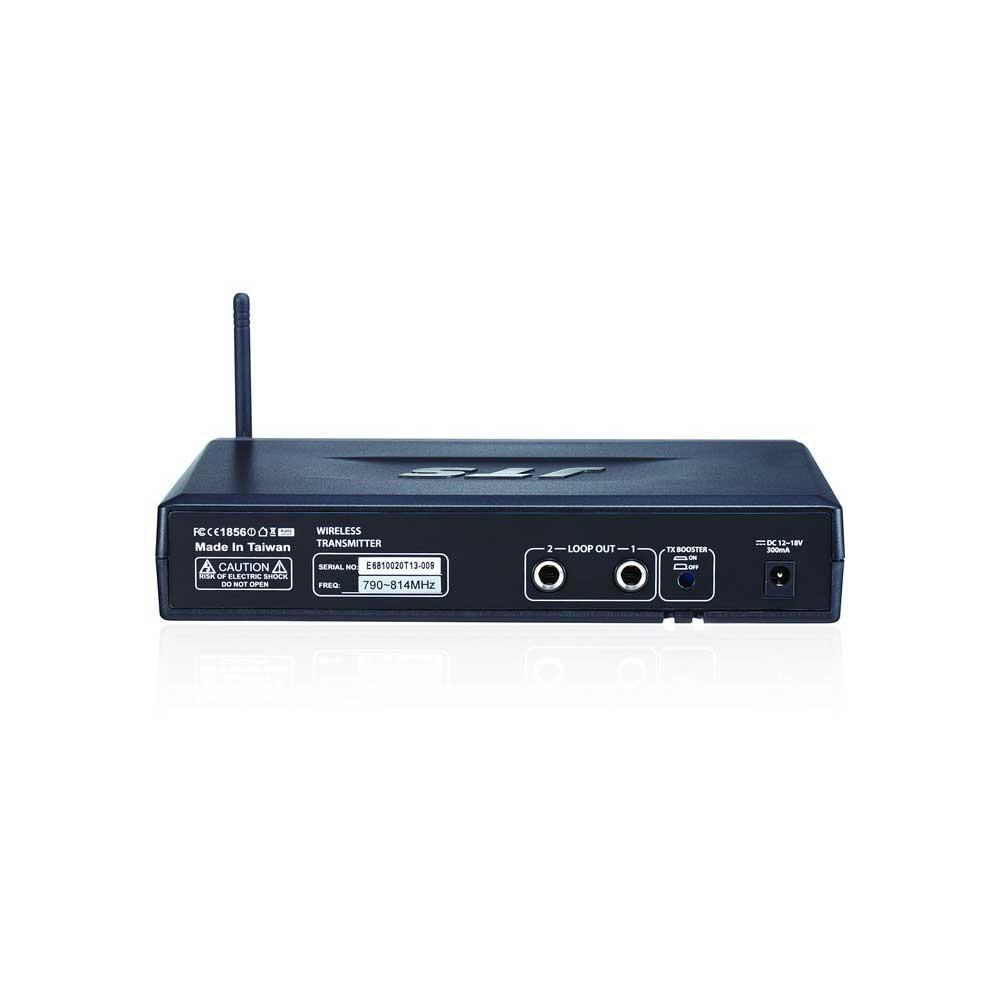

| Transmitter Loop Out | 2 × 6.3 mm balanced loop out sockets |
| Transmitter Power Supply | 12–18 VDC, 600 mA |
| Receiver Frequency Control | PLL Synthesised |
| Receiver Display | LED (Channel) |

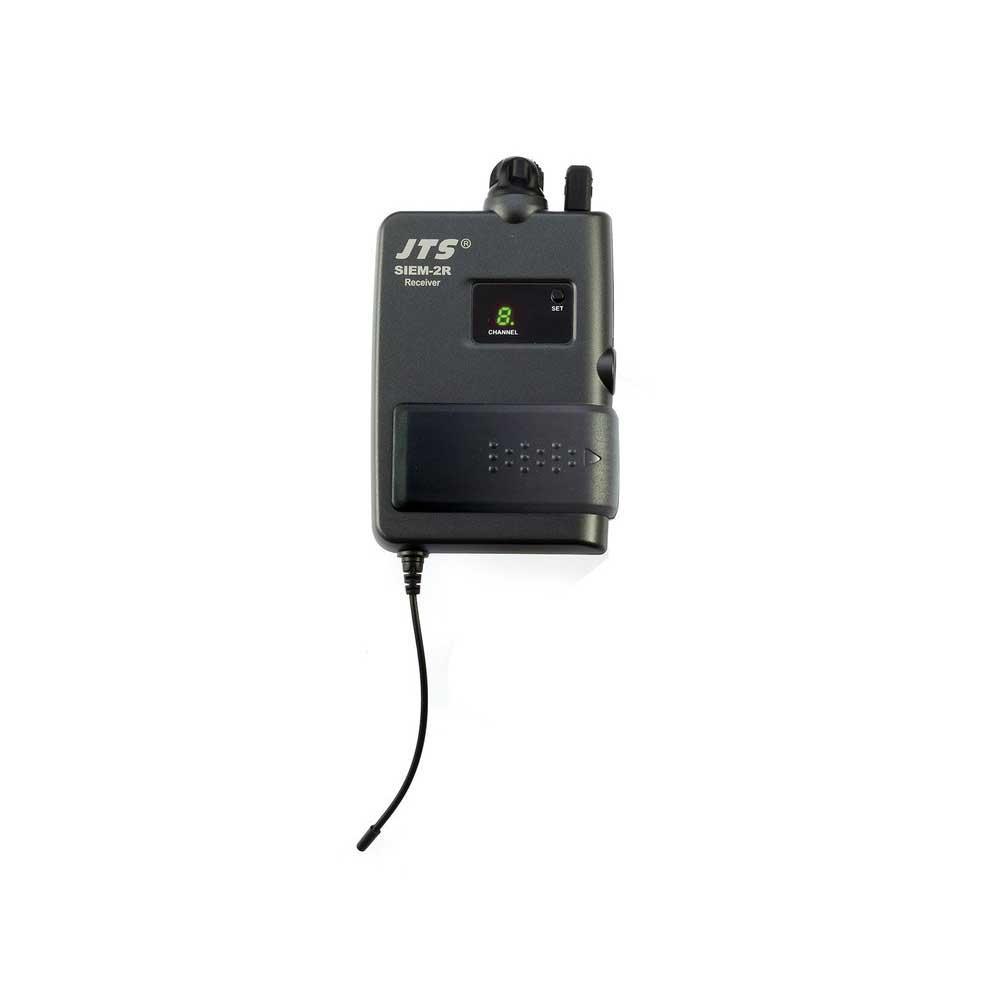

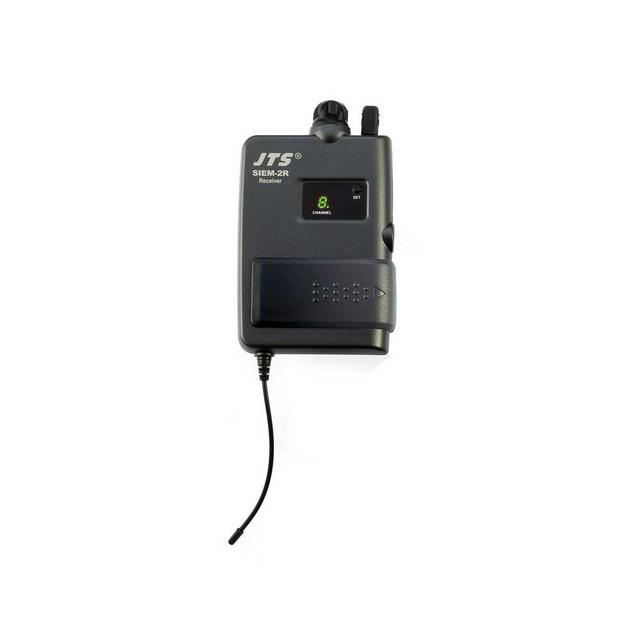

| Receiver Controls | Power On/Off, channel selection, volume control |
| Receiver Frequency Response | 40 Hz – 18,000 Hz |
| Receiver Output Connector | 3.5 mm stereo headphone jack (dummy stereo) |
| Receiver Battery Life | Up to 14 hours (typical) |
| Receiver Battery Type | 2 × AA batteries |

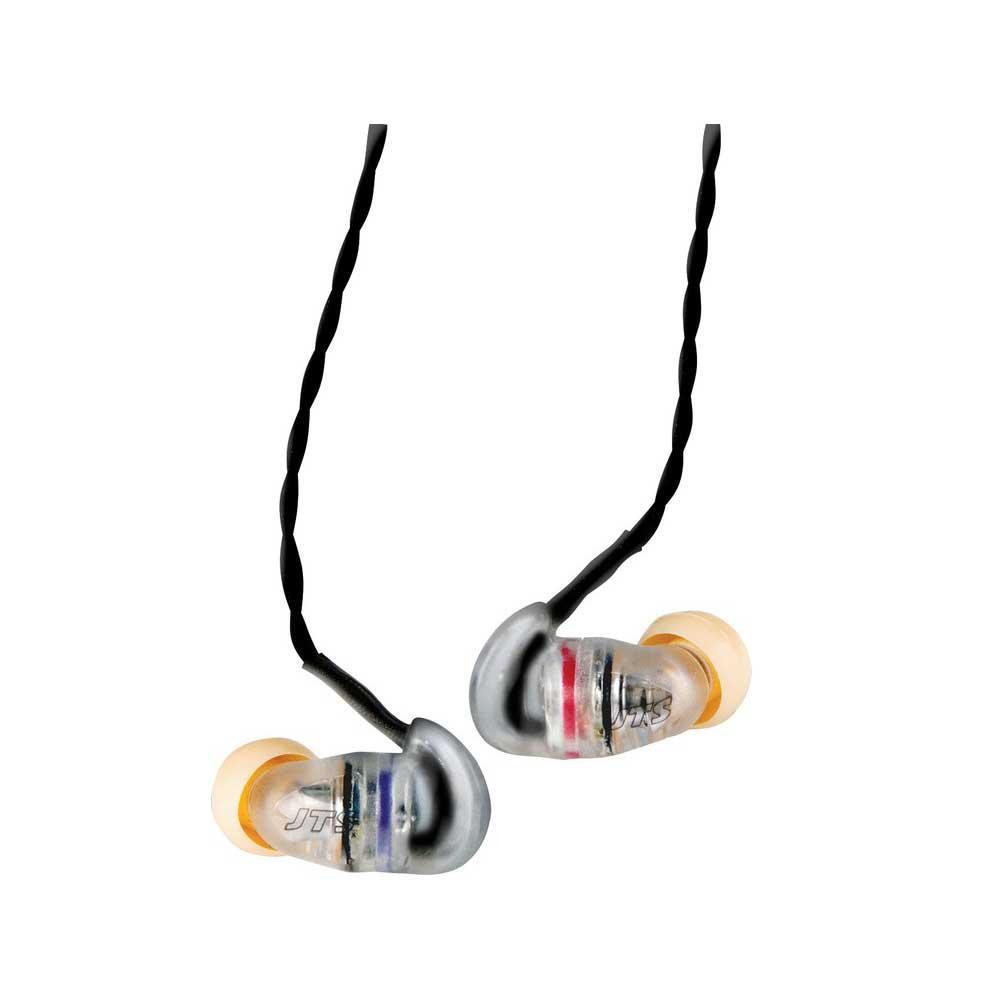

| Earphones Model | IE-1 |
| Earphones Frequency Response | 20 Hz – 20,000 Hz |
| Earphones Transducer Type | Dynamic |
| Earphones Impedance | 16 Ω |
| Earphones Sensitivity | 114 dB/mW (at 1,000 Hz) |
| Earphones Distortion | < 0.3% Total Harmonic Distortion (THD) |
| Earphones Cable Length | 148 cm with 3.5 mm stereo plug |
| Earphones Weight | 6 g (excluding cable) |
The JTS SIEM-2 provides a practical and reliable monitoring system for musicians and performers who want improved clarity and control compared to traditional stage monitors. By delivering the monitor mix directly to the performer through the in-ear system, it reduces stage noise and improves overall sound balance, especially in smaller venues or compact stage environments. With dual balanced inputs and loop outputs, it integrates easily into existing mixing workflows. The ability to add multiple receivers allows an entire band to share the same monitor feed. Each performer can control their listening level directly from the SIEM-2R bodypack receiver, making it a flexible and user-friendly solution for rehearsals, gigs, worship settings, and touring applications.
Q: What is included in the JTS SIEM-2 system?
A: The kit includes the SIEM-2T transmitter, SIEM-2R bodypack receiver, and IE-1 in-ear earphones.
Q: Is this system mono or stereo?
A: The SIEM-2 provides a mono in-ear monitoring system.
Q: Can multiple performers use the same transmitter?
A: Yes, multiple SIEM-2R receivers can be used with one transmitter so multiple performers can share the same mix.
Q: How long does the receiver battery typically last?
A: The SIEM-2R receiver offers up to 14 hours of typical battery life using two AA batteries.
Q: What frequency band does the SIEM-2 operate on?
A: It operates on 863–865MHz (Channel 70) or CH38–CH40 depending on the system version and region.
