McGregor Z4Z-1000 4-Zone Amplifier 4 x 250W

#Z4Z-1000

£697.15 inc vat
£580.96 ex vat
delivery time Want it Tuesday, 11th Aug?
Order within -:- and choose next-day delivery

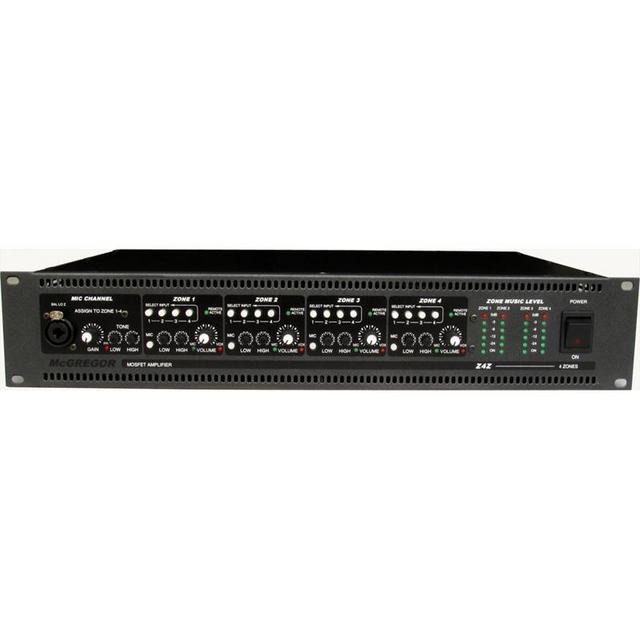

McGregor Z4Z-1000 4-Zone Amplifier 4 x 250W

The McGregor Z4Z-1000 4-Zone Amplifier 4 x 250W are Matrix Zoning Amplifiers which allow you to select 4 individual line level inputs for each zone. They also have an individual Microphone input which can also be sent to any zone.

Please Note: Next day delivery not always available on this item. Please call for details.

Features:

  • Two Low Z mic inputs, balanced or unbalanced (one input on rear panel)
  • Mic channel has Volume, Bass, Treble, PPI led’s
  • Mic vox (internally adjustable) with Vox active leds
  • Four zones with four stereo line inputs (phono sockets) and input trim presets.
  • Four stereo line input selector switches
  • Bass and Treble equalisation on all four zones
  • Zone 1- 4 have mic on / off selector switches with led indicator
  • Fire alarm music mute on all zones leaves mic active
  • Separate Master, Low, Hi and remote volume controls for all zones

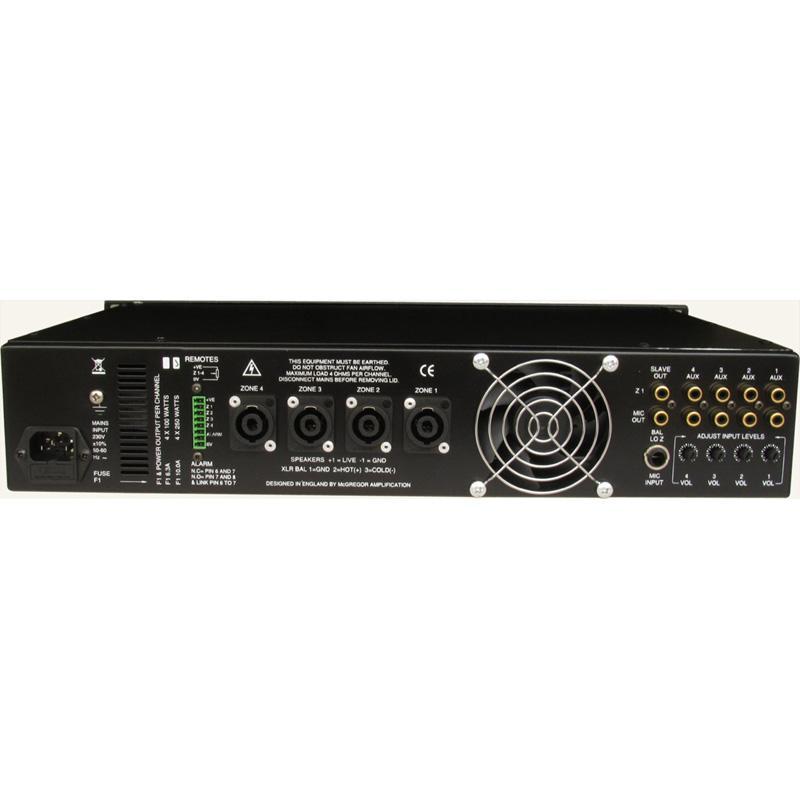

  • Line out, mic out, music out, are on phono sockets rear mounted
  • Four, 5 segment led displays monitor all zone output levels
  • Active clip limiter with max threshold facility on all four zones
  • Speakon sockets for all loudspeaker connections
  • Fan cooled with low noise proportional speed fan
  • Thermal Trip, DC protection on all zones
  • Z4Z-1000 4 X 250W DIMENSIONS 483(W) X 290 (D) X 89 (H) - 15.0Kg.

Specifications (Mixer):

  • Mic inputs - Balanced or unbalanced 3k3 - 5mV
  • Line inputs - Unbalanced >22k - 200mV
  • Line output - Unbalanced < 10k - 775mV (0dB)
  • Headroom - +22dB. PPI’s active @ +19dB
  • Low - +/- 15dB @ 50Hz, shelved
  • High - +/- 15dB @ 12kHz, shelved

Specifications (Amplifier):

  • Power Output R.M.S. - 4 x 250 WATTS INTO 4 OHMS
  • @ 1KHz into 4 OHMS - 70 % into 8 ohms
  • Frequency Response - 20 Hz - 25 kHz +/-0.5dB
  • [email protected] rated power -Signal to noise ratio - Better than 100 dB
  • Channel Separation - Better than 60 dB
  • Thermal Protection - 90 deg C
  • D/C Protection - +/-32V
  • Clip Limiter - Internal, off to max required SPL
  • Input Sensitivity - 775 mV / 0dBu
  • Input Impedance - 10K + 10K
  • Soft start - All models
  • Damping Factor - Better than 400
  • Slew Rate - 40V/uS
  • Mains Inrush Limiting - 500 + 500 W upwards
  • Mains Input Power - 230V +/-10% 50-60Hz
