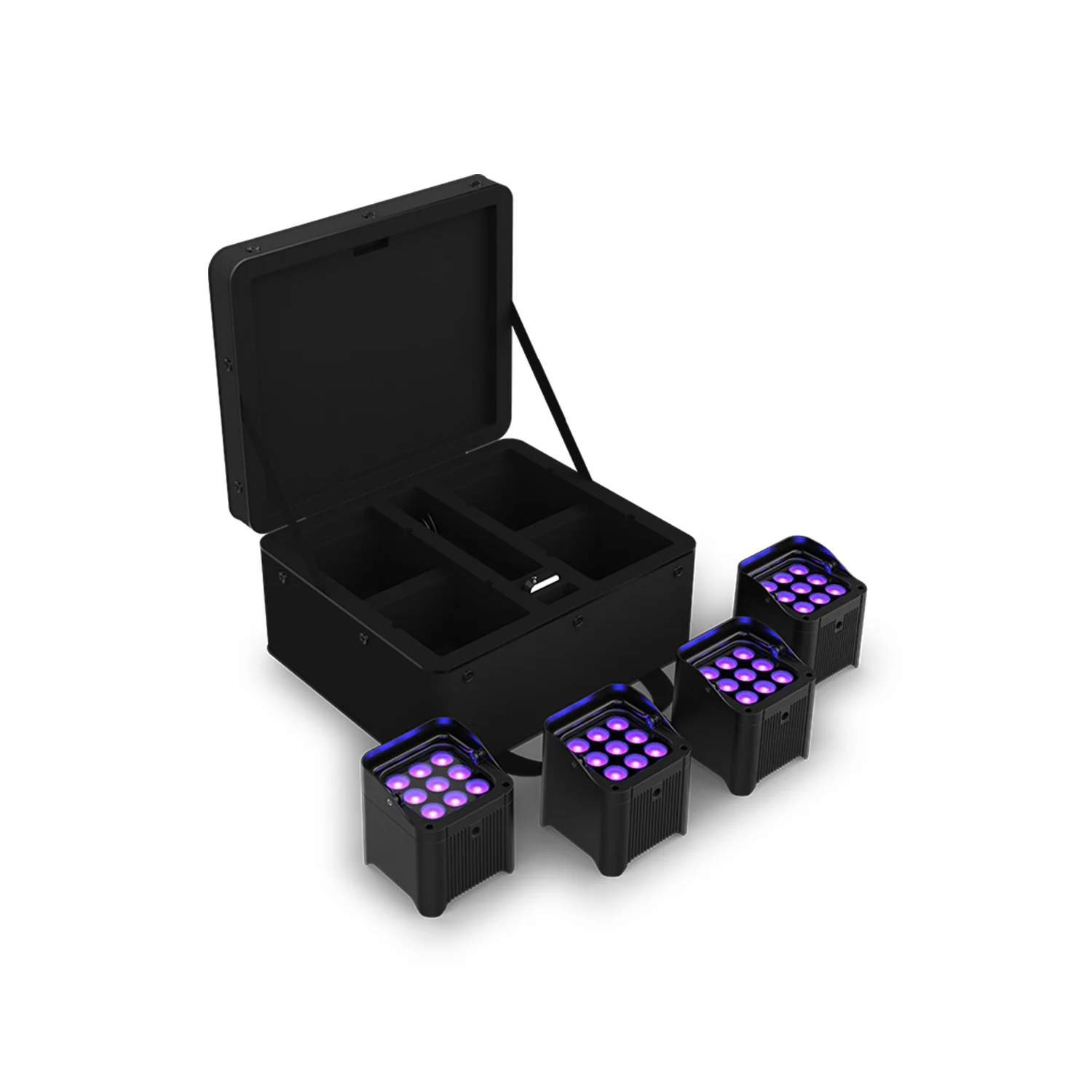

The Chauvet Freedom Par H9 IP X4 is a professional-standard, fully wireless uplighting kit designed for both indoor and outdoor events. Featuring four high-output Freedom Par H9 IP fixtures, this pack includes a durable carry bag, a multi-charger, and an RFC remote for wireless control. Offering vibrant RGBAW+UV colour mixing and true portability, it is ideal for lighting designers, event professionals, and production companies seeking reliable and flexible illumination.

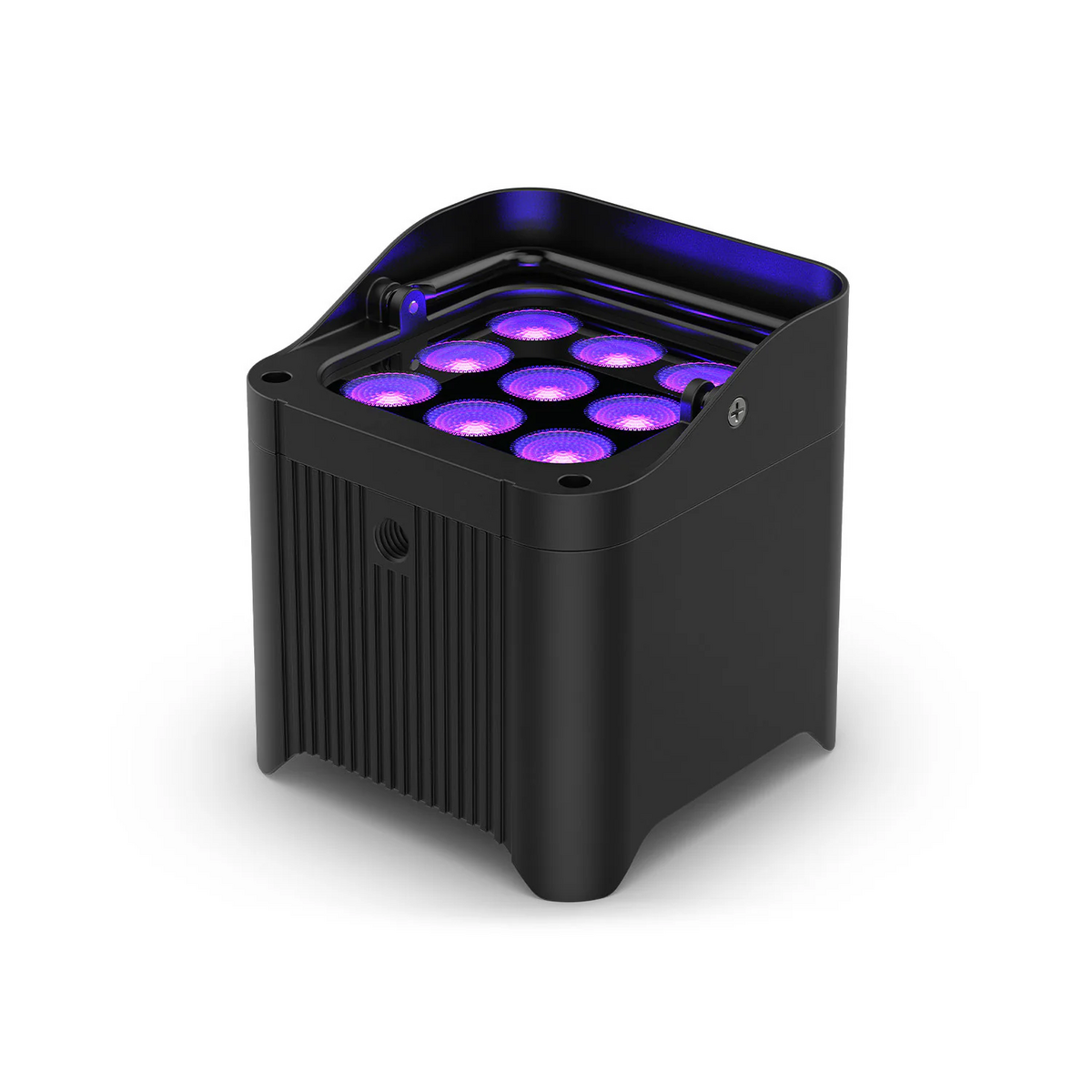

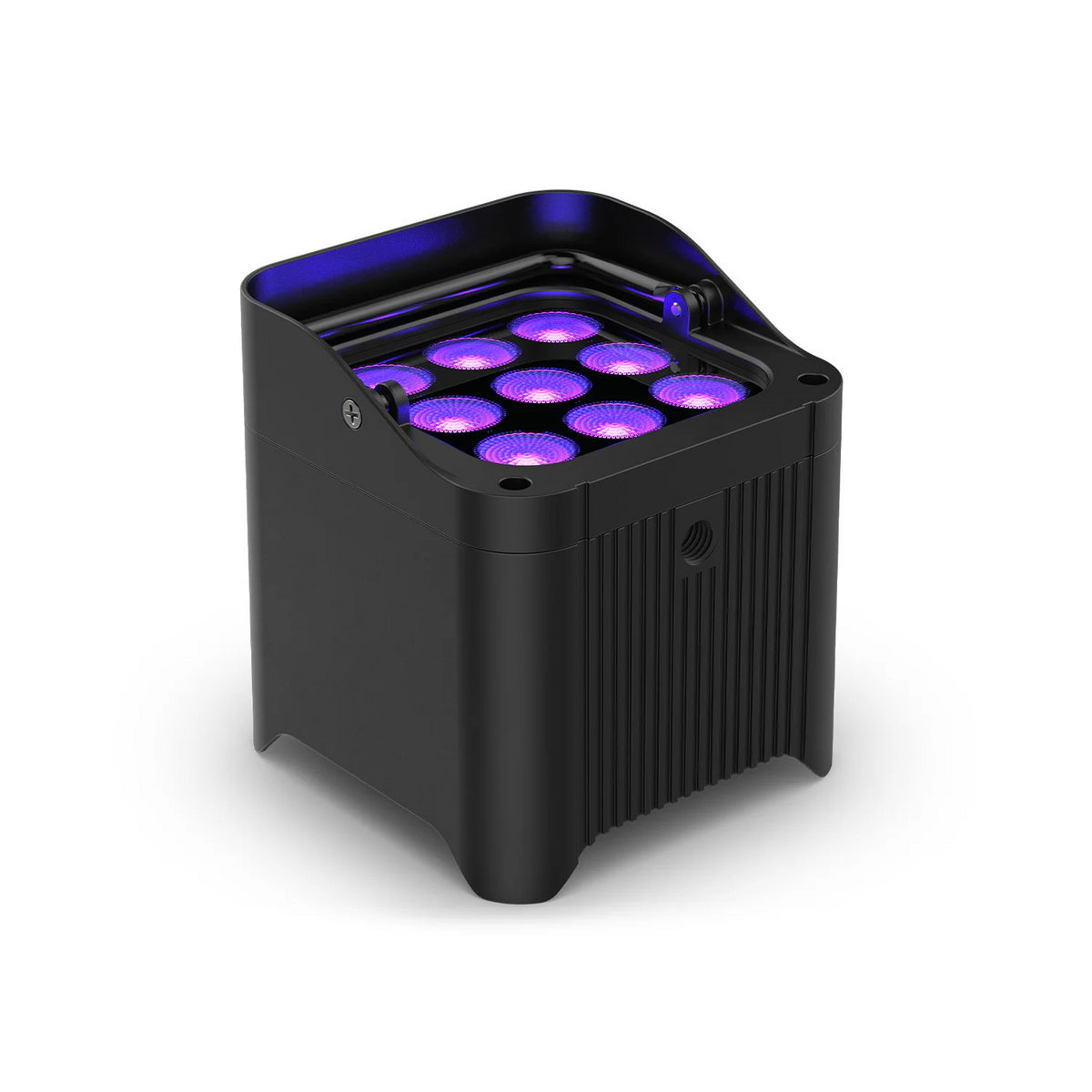

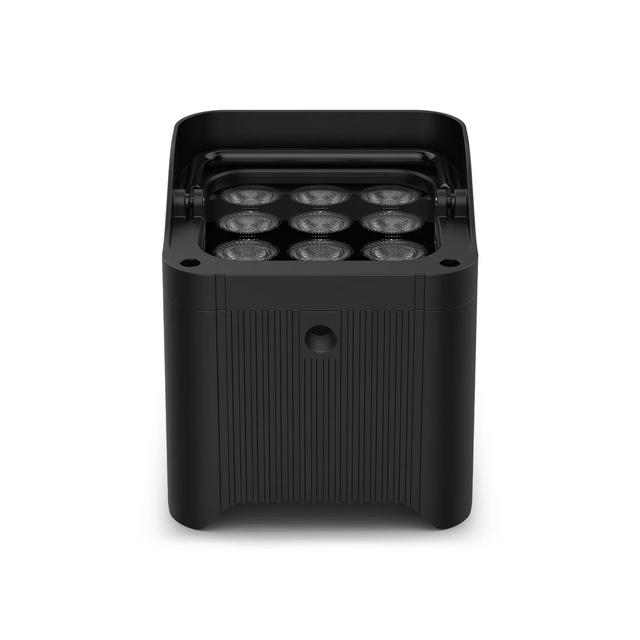

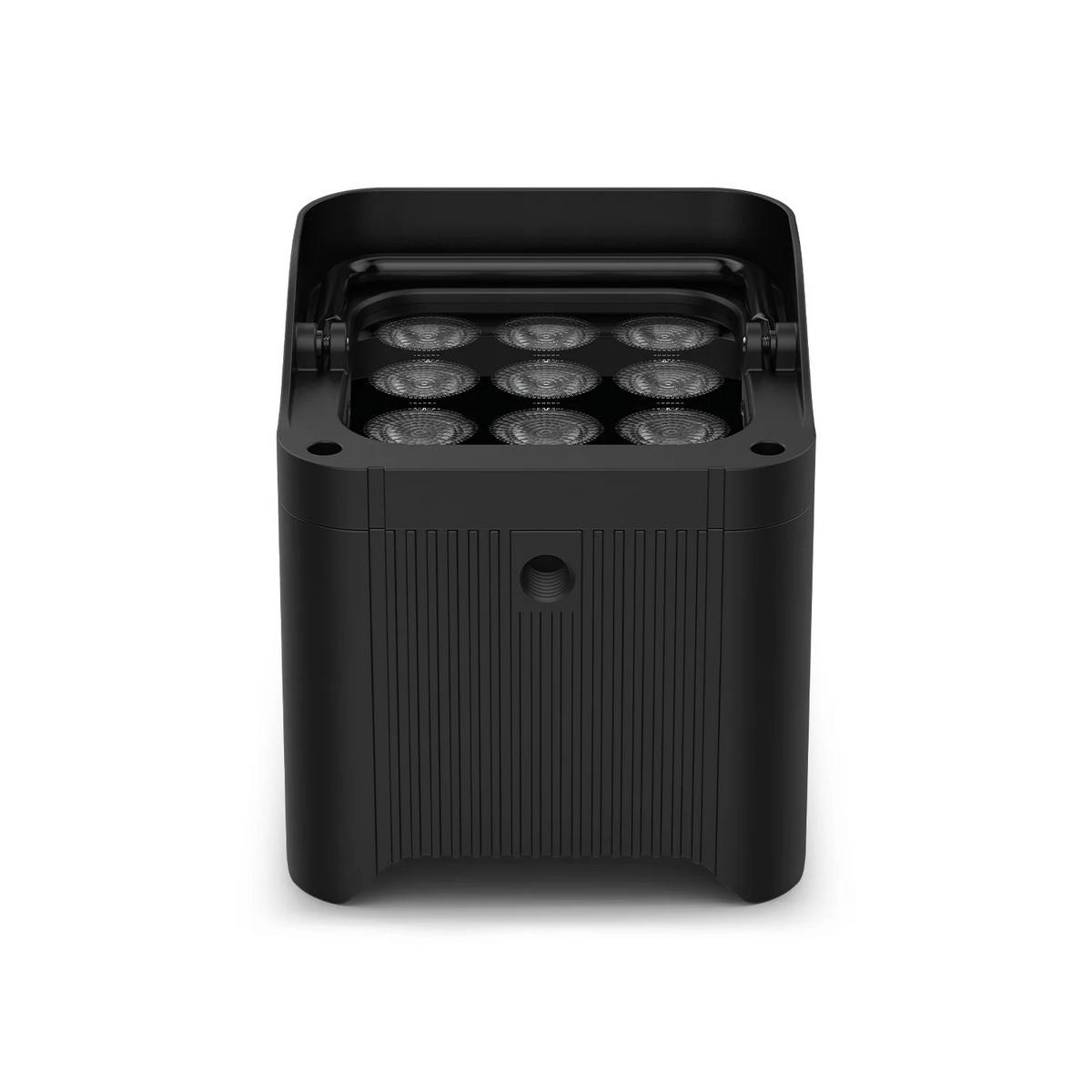

Engineered with a rugged, IP54-rated housing, each Freedom Par H9 IP fixture is built to withstand demanding environments and short-term outdoor use. The compact, lightweight design allows for easy transport and setup, fitting neatly inside standard truss systems. The magnetic diffuser provides instant beam adjustment, while the built-in glare shield reduces light spill and eye fatigue. An OLED display ensures intuitive configuration and monitoring, even in low-light conditions.
| Specification | Details |
|---|---|
| Light Source | 9 × 10 W hex-colour LEDs (RGBAW+UV), 50,000-hour life expectancy |
| DMX Channels | 6, 8, or 16 |
| Strobe Rate | 1-25 Hz |
| Beam / Field Angles | 23° / 46° (without diffuser), 40° / 79° (with diffuser) |
| Illuminance | 1,249 lux @ 2 m (standard), 432 lux @ 2 m (with diffuser) |
| Luminous Output | 1,258 lumens |
| Run Time | Adjustable - 3, 5, 8, or 12 hours |
| Recharge Time | 3 hours |
| Wireless Frequency | 2.412-2.484 GHz |
| Max Wireless Range | 600 ft (183 m) unobstructed |
| IP Rating | IP54 (protected against dust and water splashes) |
| Operating Temperature | -22 °F to 113 °F (-30 °C to 45 °C) |
| Input Voltage | 24 VDC, 1.5 A (external power supply 50/60 Hz) |
| Power Consumption | 50 W (0.7 A @ 120 V / 0.4 A @ 230 V) |
| Dimensions (Single Unit) | 120 × 120 × 126 mm (4.7 × 4.7 × 4.9 in) |
| Weight (Single Unit) | 2.1 kg (4.6 lb) |
| Approvals | CE, UKCA, RoHS, and FCC |
| Included Accessories | 4 × Freedom Par H9 IP units, 1 × carry bag, 1 × RFC remote, 1 × multi-charger |
The Freedom Par H9 IP delivers powerful, consistent illumination with smooth fades and precise colour control. Its adjustable run time and fast charging ensure optimal performance for events of any duration. The built-in RF receiver and D-Fi transceiver provide flexible wireless operation, while the robust build and IP54 protection make it dependable indoors or outdoors. From weddings to large corporate events, the Freedom Par H9 IP X4 offers professional lighting with minimal setup effort.
Q: Is the Freedom Par H9 IP suitable for outdoor use?
A: Yes, it has an IP54 rating, making it resistant to dust and splashes for temporary outdoor events.
Q: Can I control the fixtures without line of sight?
A: Yes, the included RFC remote uses RF technology, so you can control the lights even when they are not directly visible.
Q: How long does the battery last?
A: The run time can be adjusted between 3 and 12 hours, depending on brightness and operating mode.
Q: How many fixtures can I charge at once?

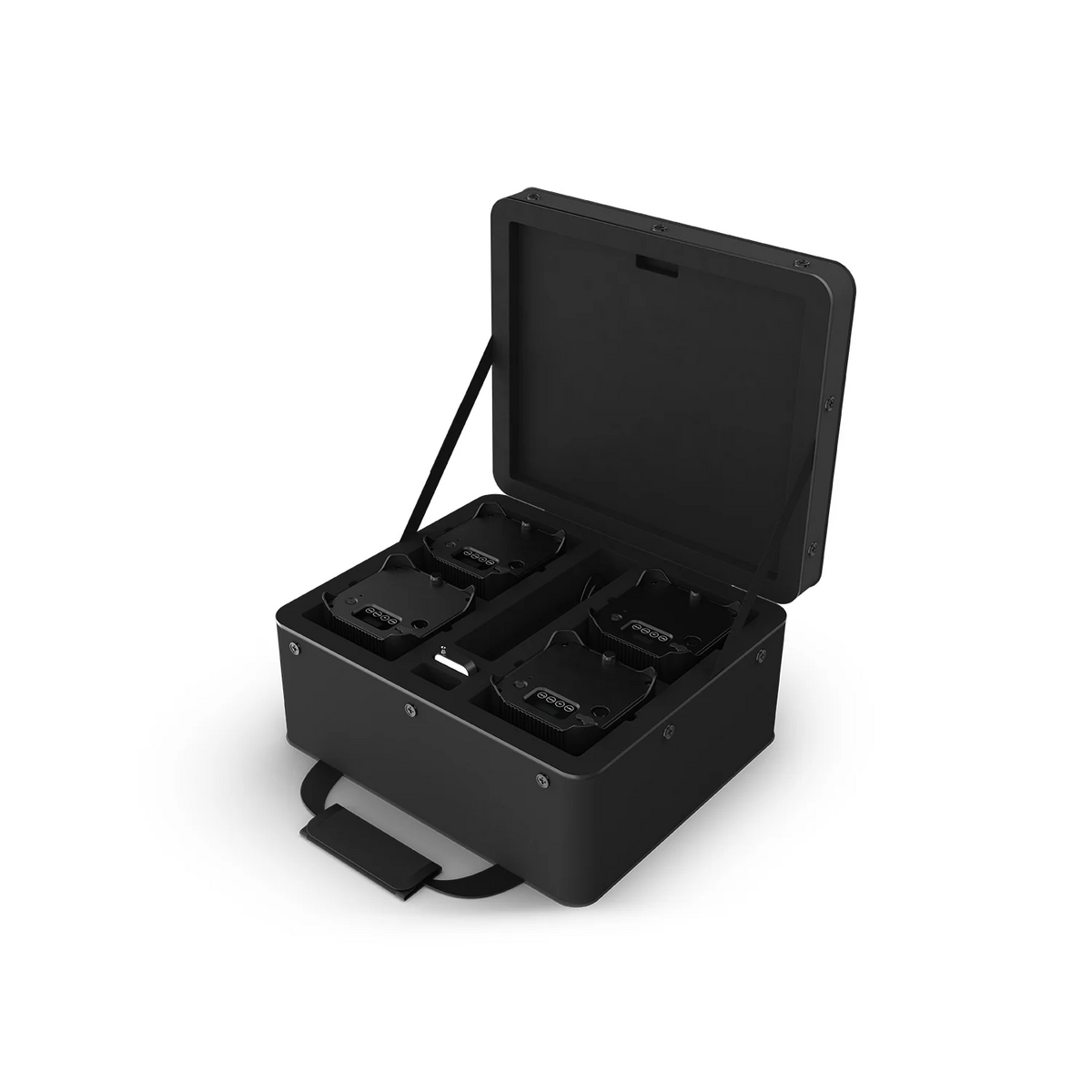

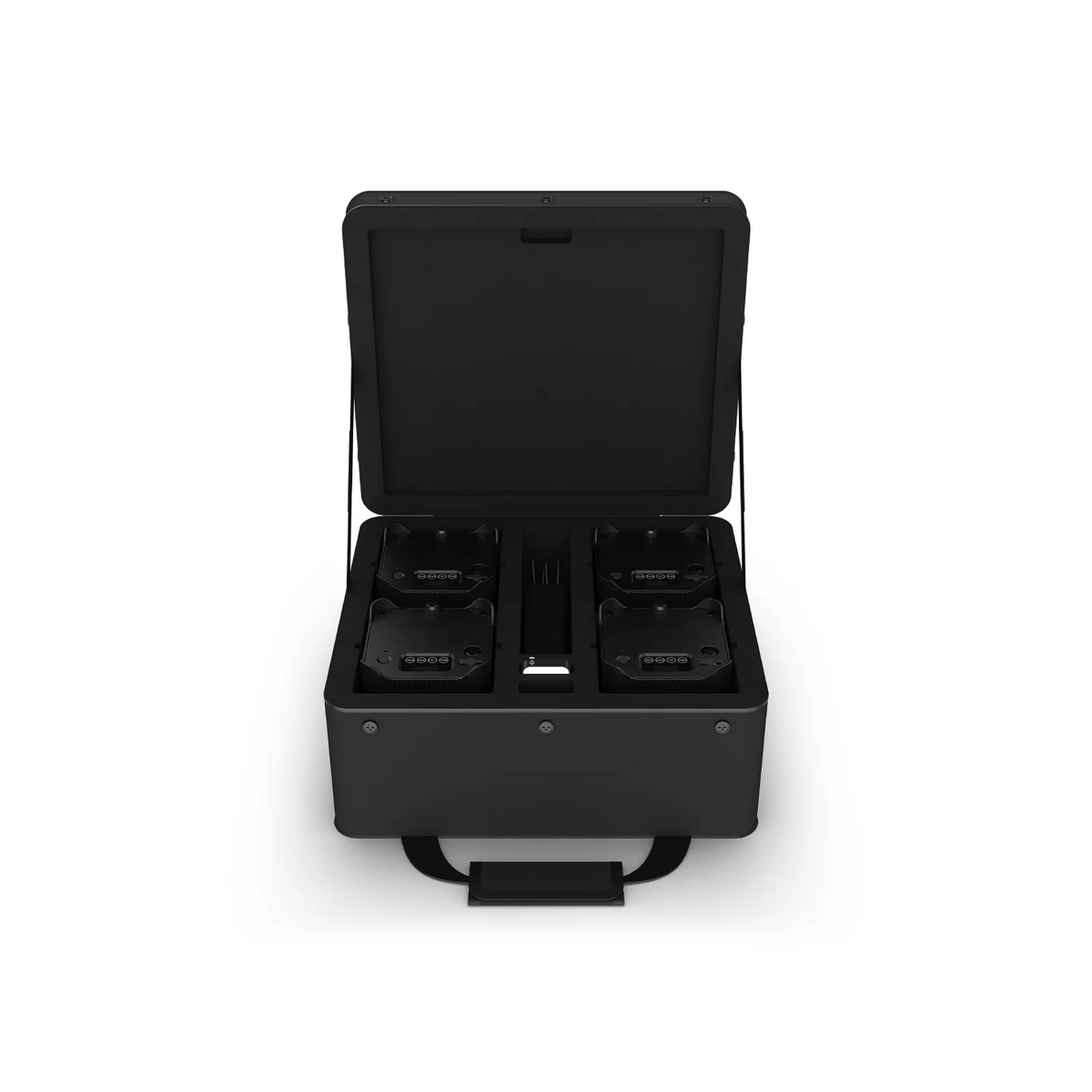

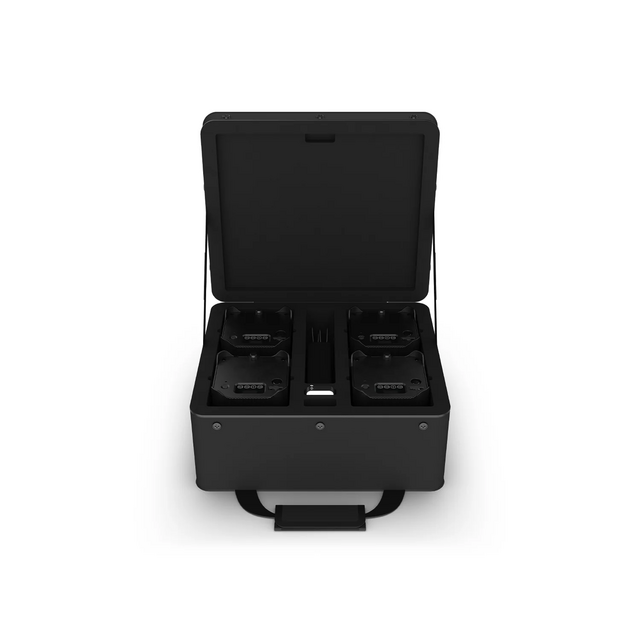

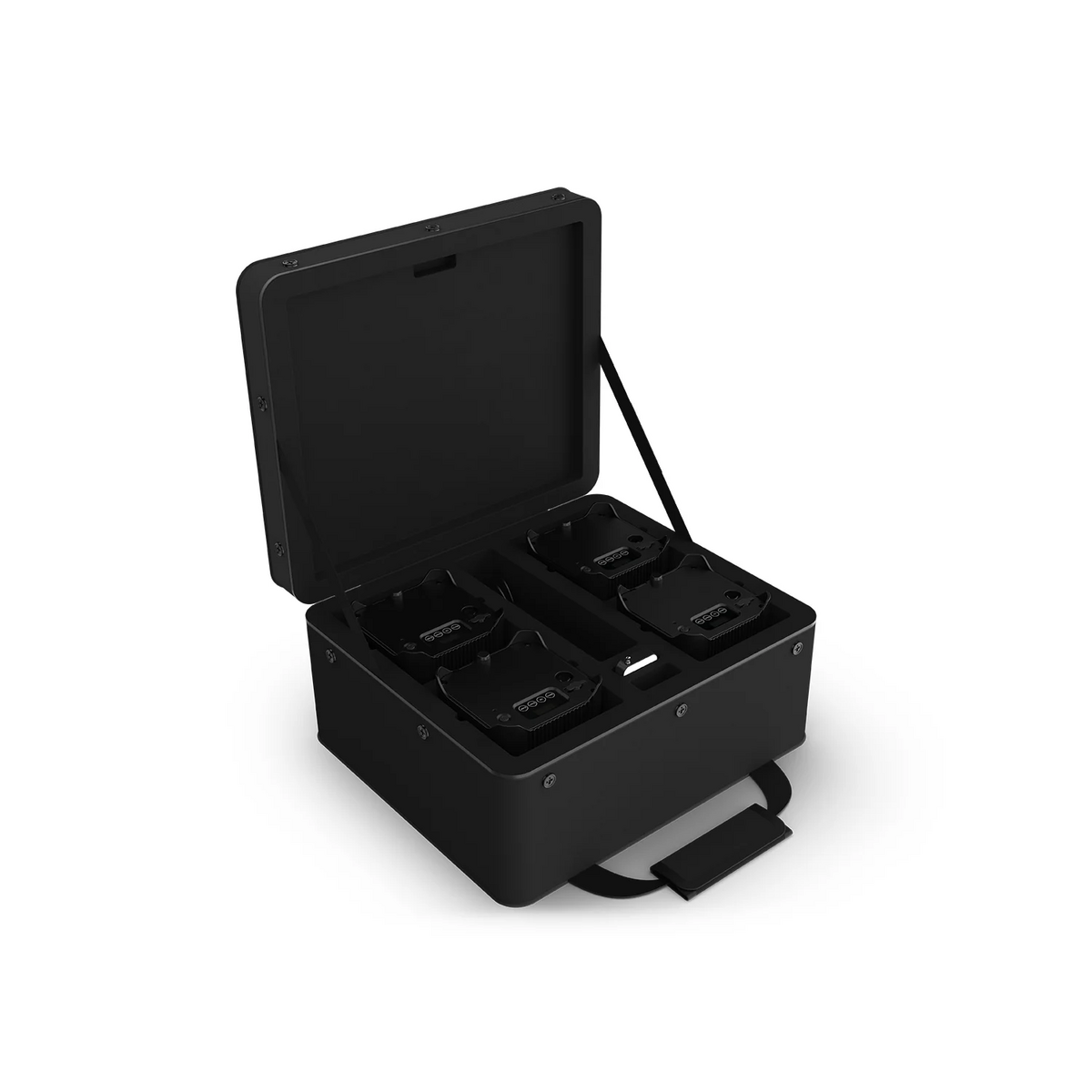

A: The multi-charger included in the kit allows all four lights to be charged simultaneously.
Q: What control options are available?
A: You can control the fixtures via DMX, the built-in D-Fi wireless system, or remotes such as the RFC, RFC-XL, or FlareCO.
