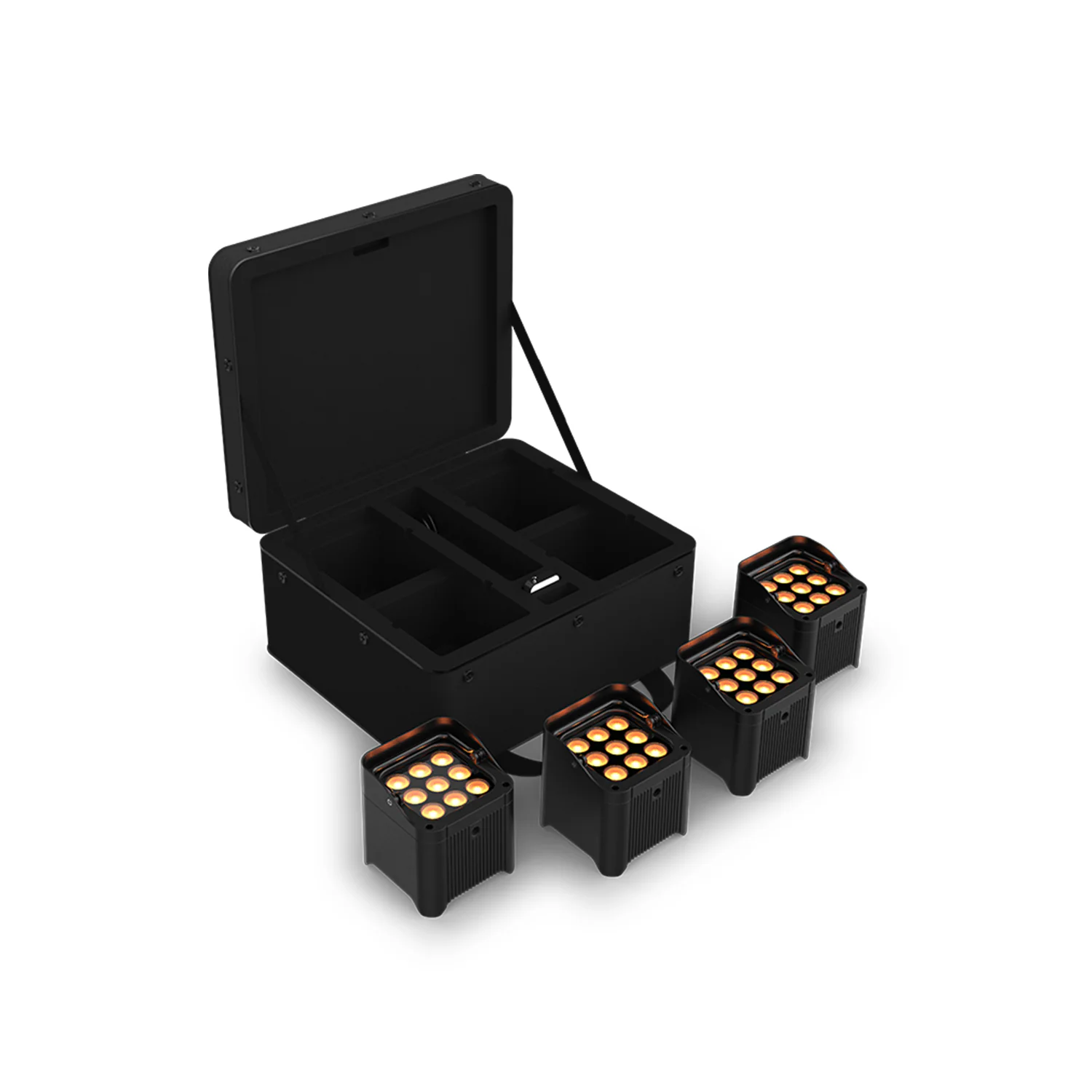

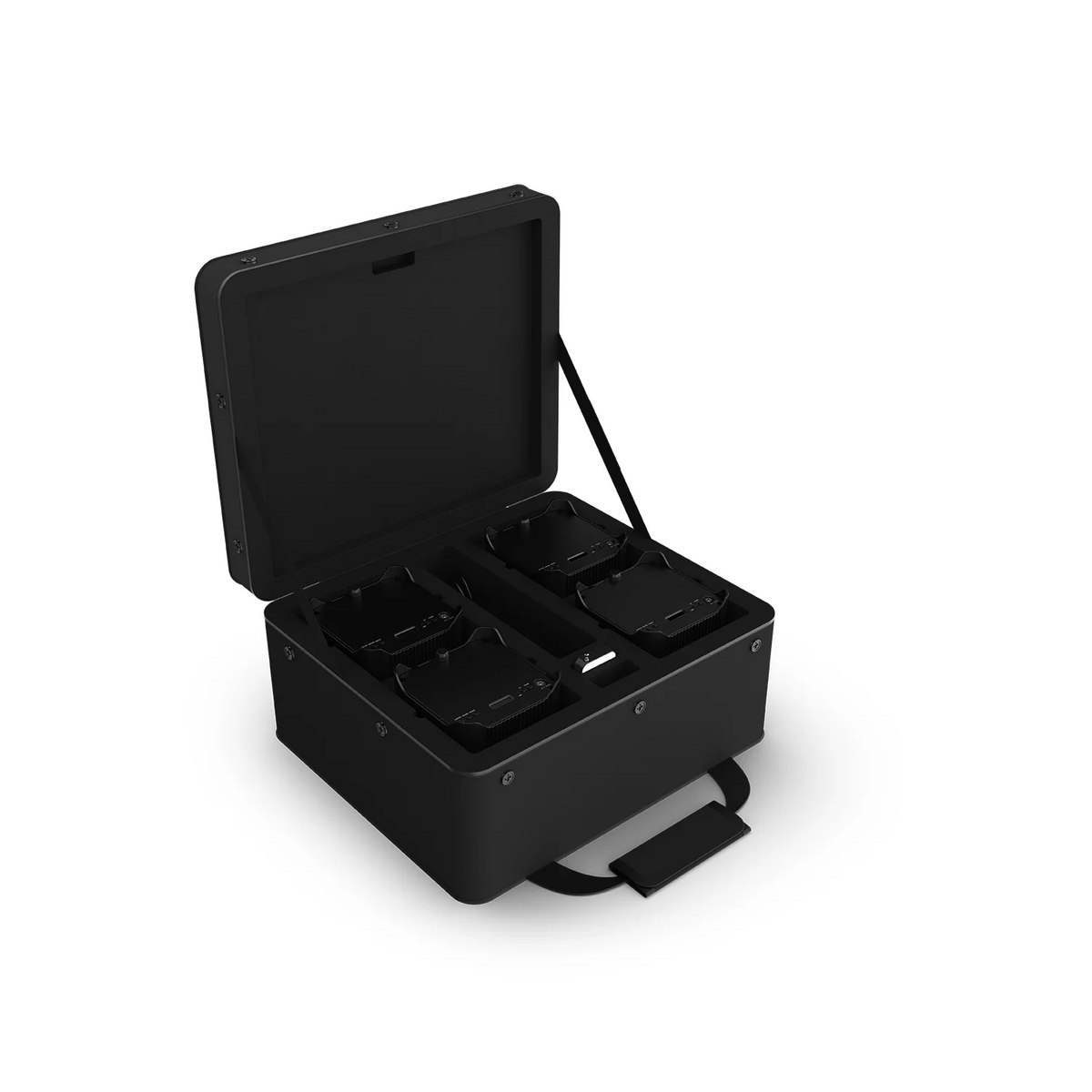

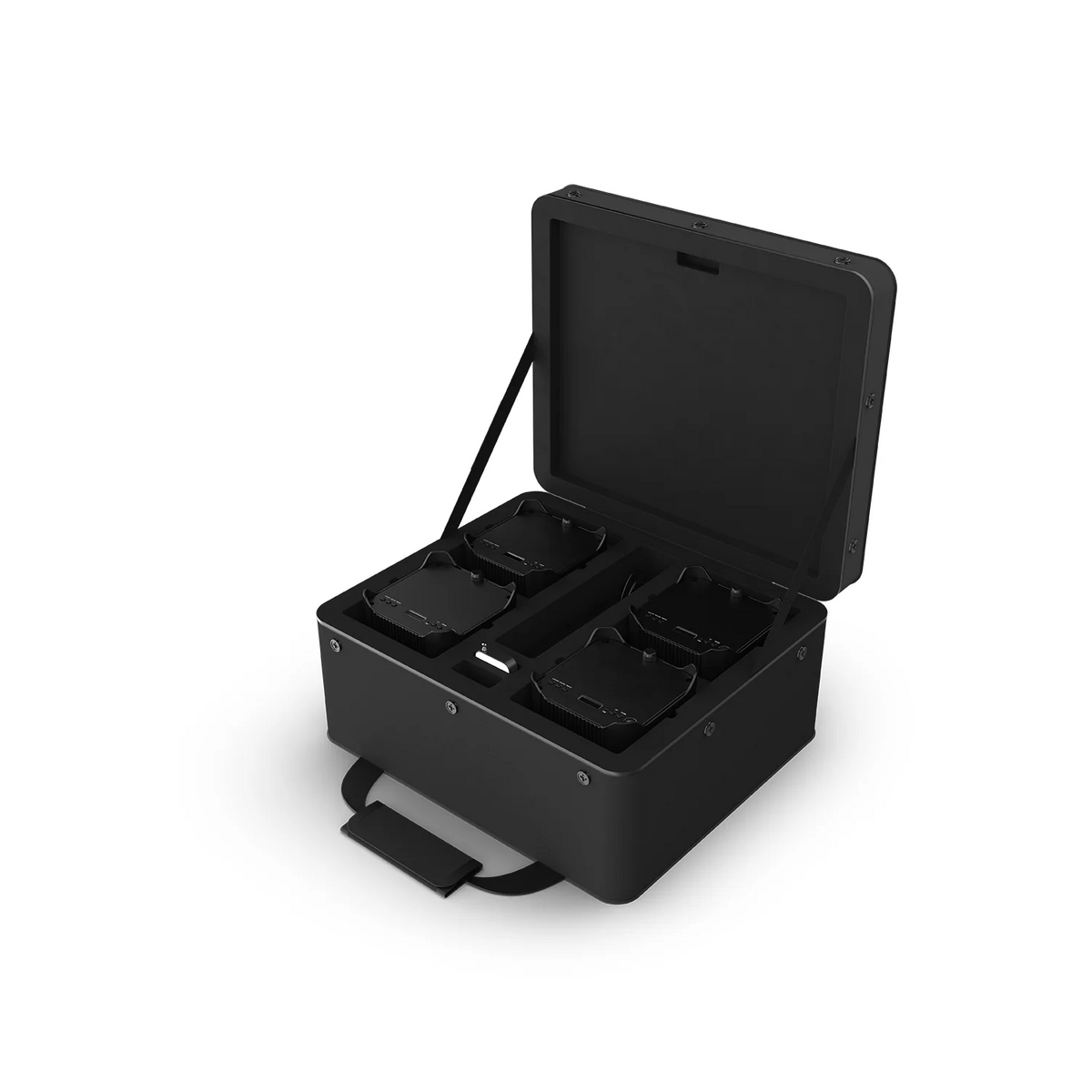

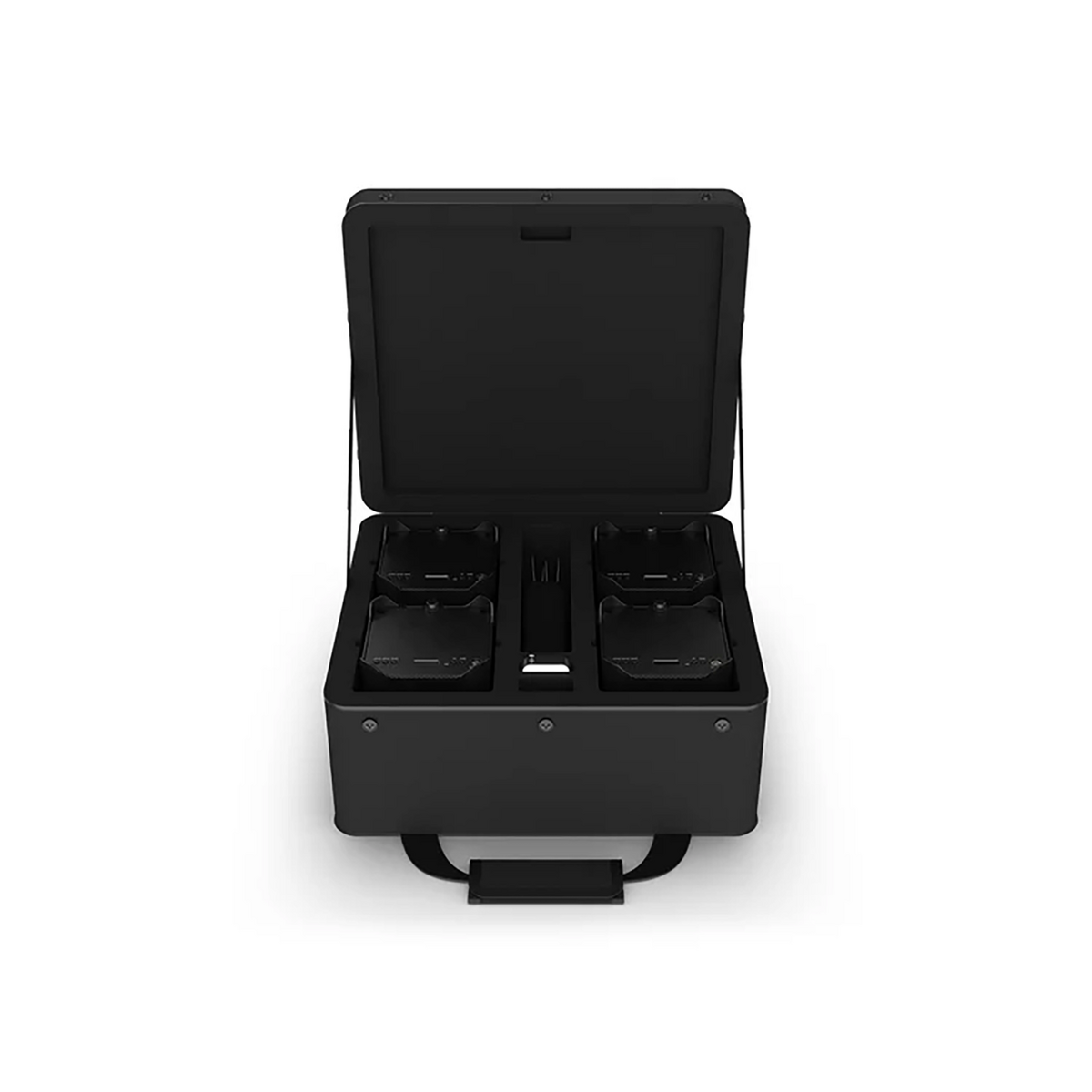

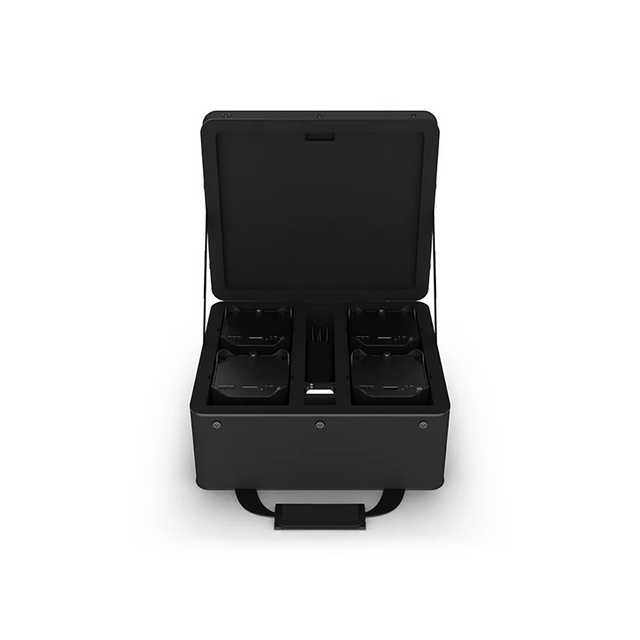

The Chauvet Freedom Par Q9 X4 is a complete professional-grade uplighting kit featuring four Freedom Par Q9 fixtures, an RFC remote, and a multi-charger—all housed in a rugged protective carry bag. This 100% wireless, battery-powered solution delivers vibrant RGBA colour output with advanced optics, providing precise colour blending and smooth transitions for professional event and stage lighting applications.

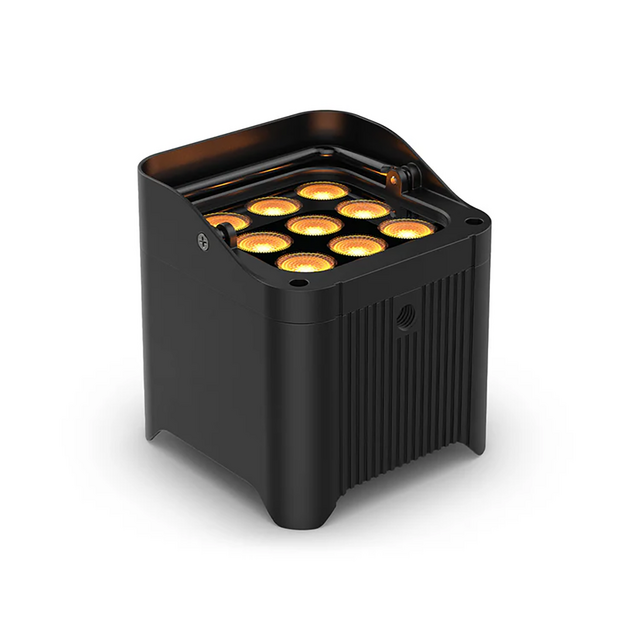

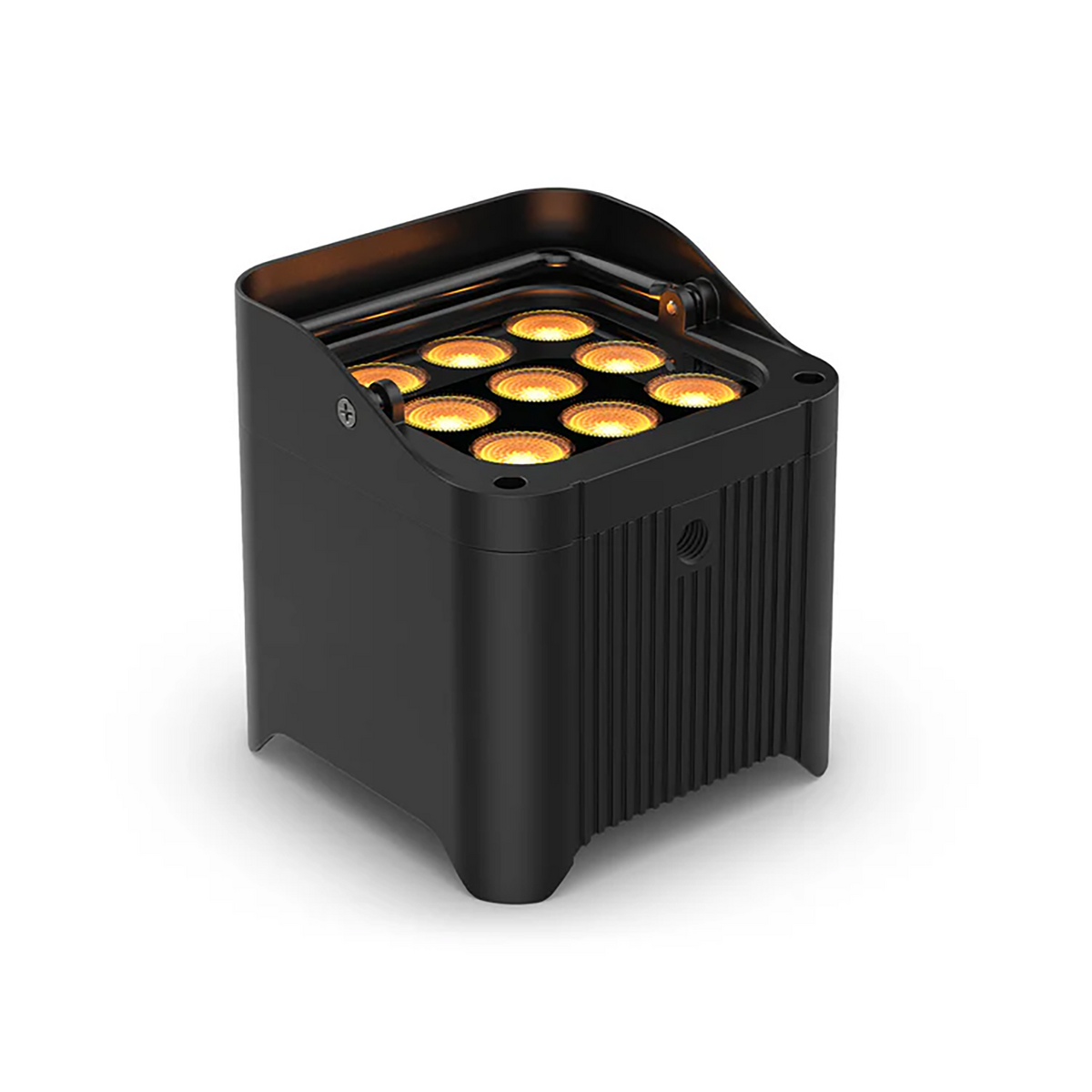

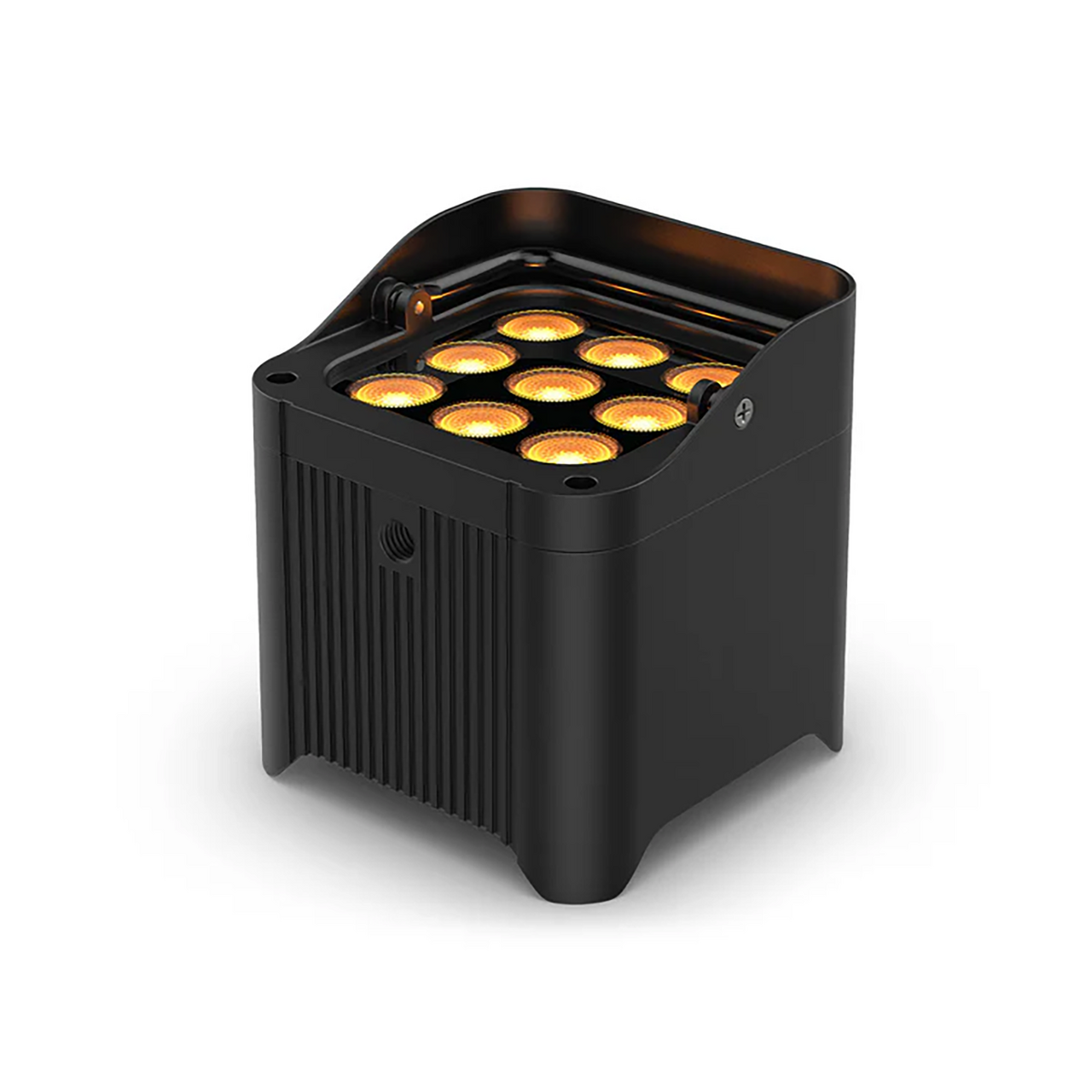

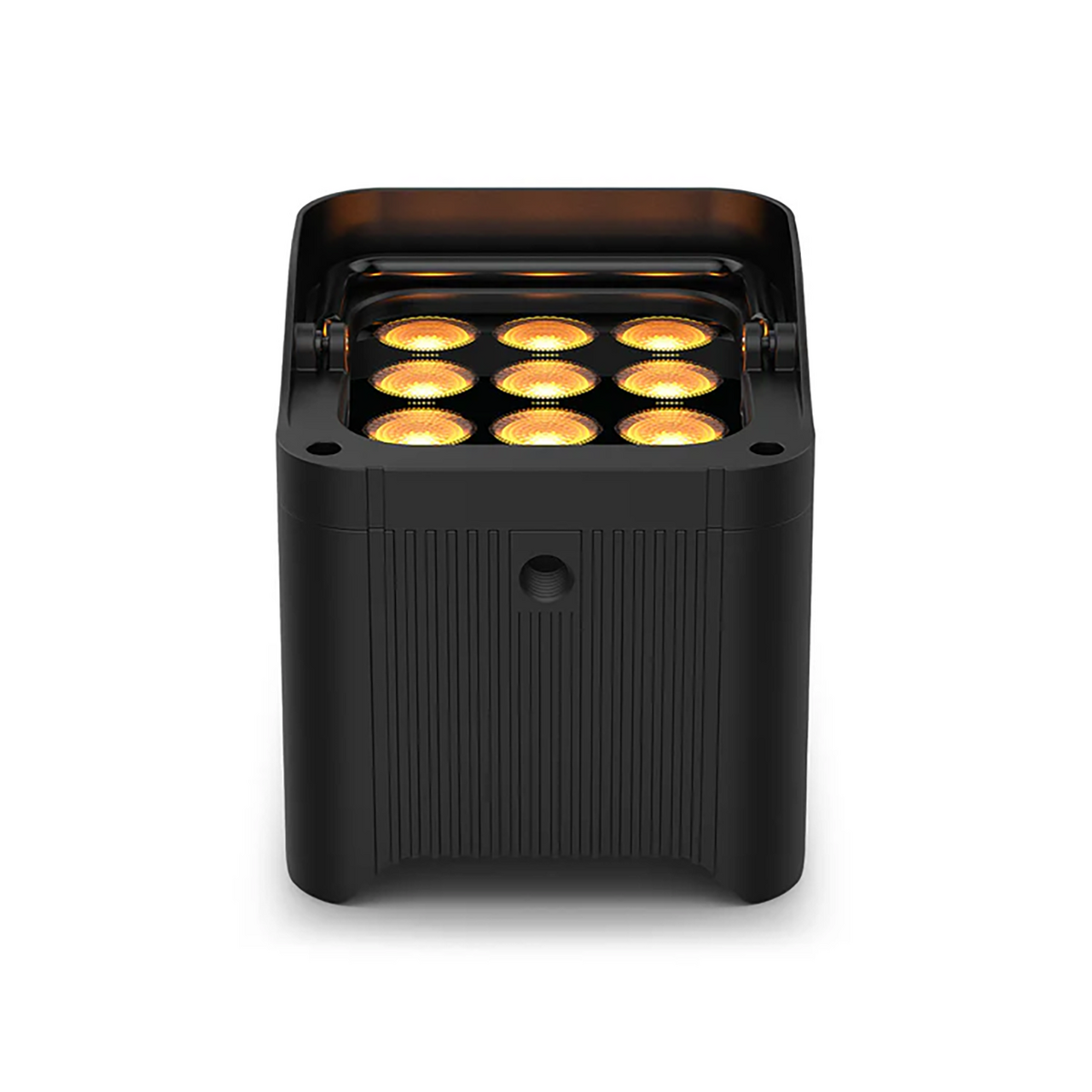

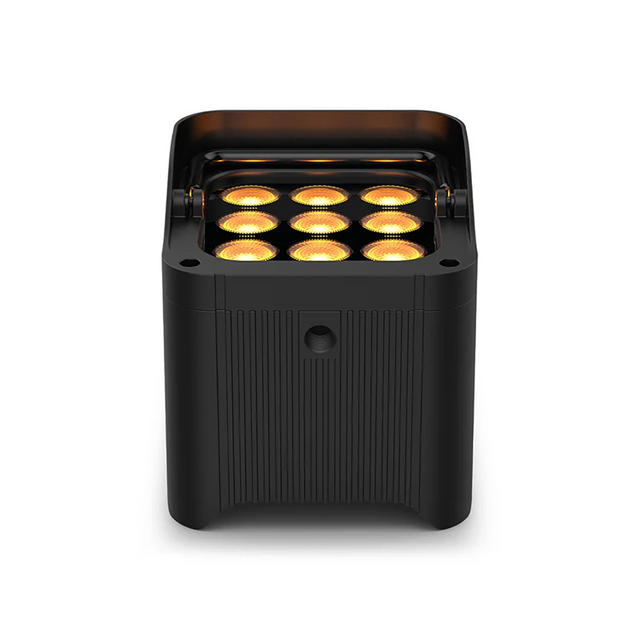

The Freedom Par Q9 units are designed for both portability and durability, featuring a compact, lightweight housing that fits neatly into truss systems and small-scale setups. The magnetic diffuser allows rapid beam adjustment, while the integrated glare shield reduces light spill for cleaner, more focused projection. An OLED display provides intuitive menu navigation and fixture configuration, ensuring ease of operation even in low-light environments.
| Specification | Details |
|---|---|
| Light Source | 9 x 6 W RGBA quad-colour LEDs, 50,000-hour life expectancy |
| DMX Channels | 4, 6, or 14 |
| Strobe Rate | 0 – 22 Hz |
| Beam / Field Angles | 14° / 35° (standard), 37° / 68° (with diffuser) |
| Illuminance | 3580 lux @ 2 m (standard), 529 lux @ 2 m (with diffuser) |
| Luminous Output | 1,161 lumens |
| Run Time | Adjustable – 3, 5, 8, or 12 hours |
| Recharge Time | 3 hours |
| Wireless Frequency | 2.412 – 2.484 GHz |
| Max Wireless Range | 600 ft (183 m) unobstructed |
| Input Voltage | 24 VDC, 1.5 A (external power supply 50/60 Hz) |
| Power Consumption | 31 W (0.3 A @ 120 V) / 30 W (0.2 A @ 230 V) |
| Dimensions (Single Unit) | 120 x 120 x 126 mm (4.7 x 4.7 x 4.9 in) |
| Weight (Single Unit) | 2.1 kg (4.6 lbs) |
| Approvals | CE, UKCA, RoHS, FCC |
| Included Accessories | 4 x Freedom Par Q9 units, 4 x magnetic diffusers, 1 x carry bag, 1 x RFC remote, 1 x multi-charger, power cord, quick reference guide |
The Freedom Par Q9 X4 delivers professional-grade colour rendering and smooth dimming curves with zero flicker, ideal for live events, weddings, and stage set-ups. Its fully wireless operation and quick setup make them a preferred choice among lighting professionals. The adjustable run time ensures uninterrupted performance for events of any length, while the multi-charger and smart battery management optimise both convenience and longevity.
Q: Is the Freedom Par Q9 completely wireless?
A: Yes, it features an internal battery and built-in D-Fi transceiver for cable-free operation and control.
Q: How do I control the lights?
A: You can control them via the included RFC remote or optional RFC-XL and FlareCON wireless controllers—no line of sight needed.
Q: What is the maximum wireless range?
A: The wireless range extends up to 600 feet (183 metres) unobstructed.
Q: Can I adjust how long the battery lasts?
A: Yes, selectable modes allow you to extend battery life from 3 to 12 hours based on event needs.
Q: Does the kit include everything needed for setup?
A: Absolutely. The pack includes four fixtures, diffusers, a carry bag, a remote, a multi-charger, and all essential accessories for immediate use.
