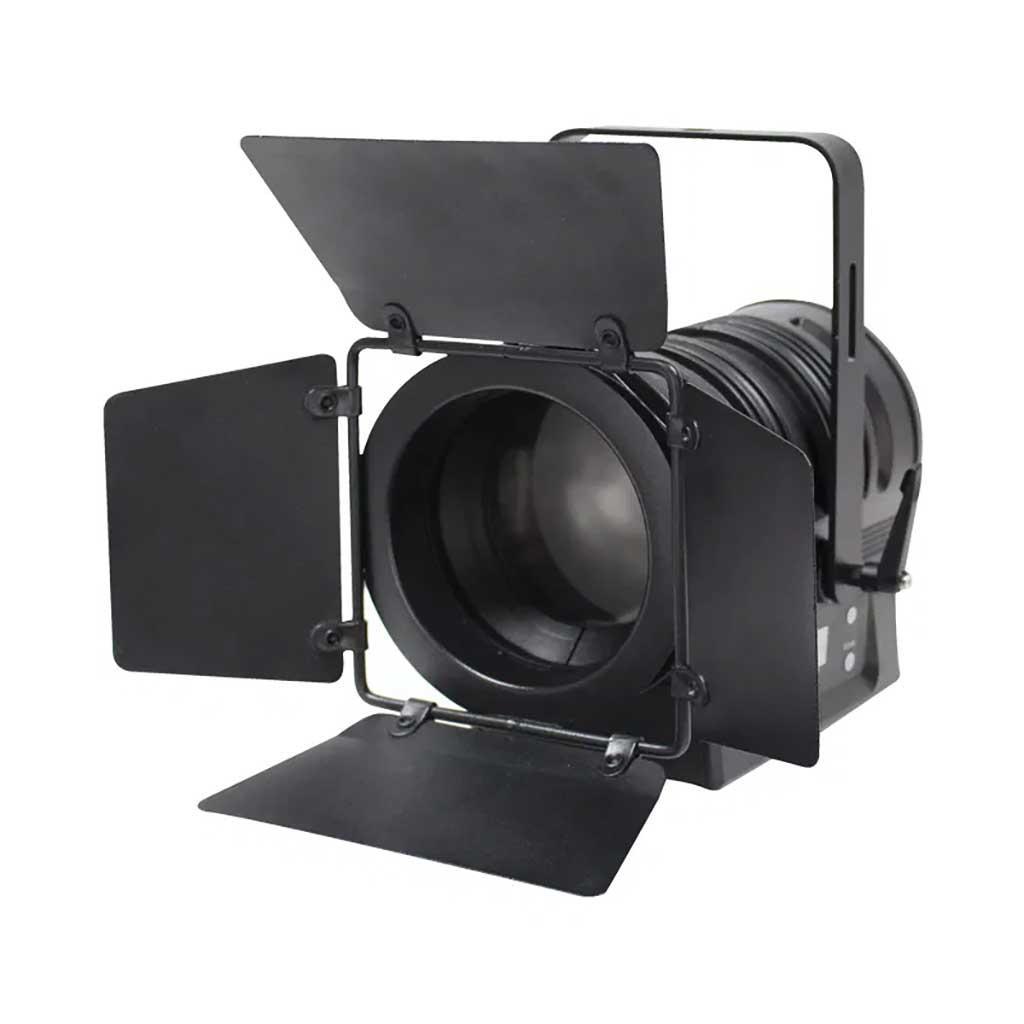

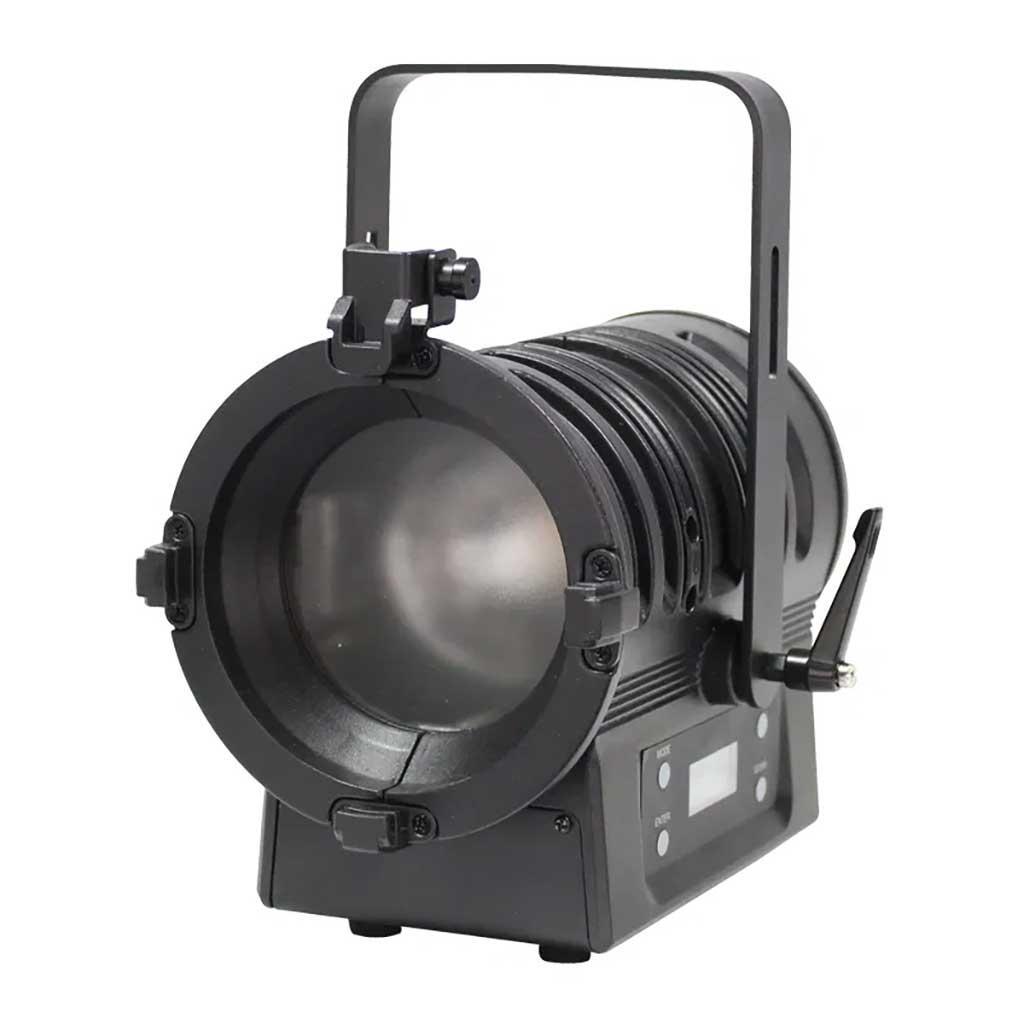

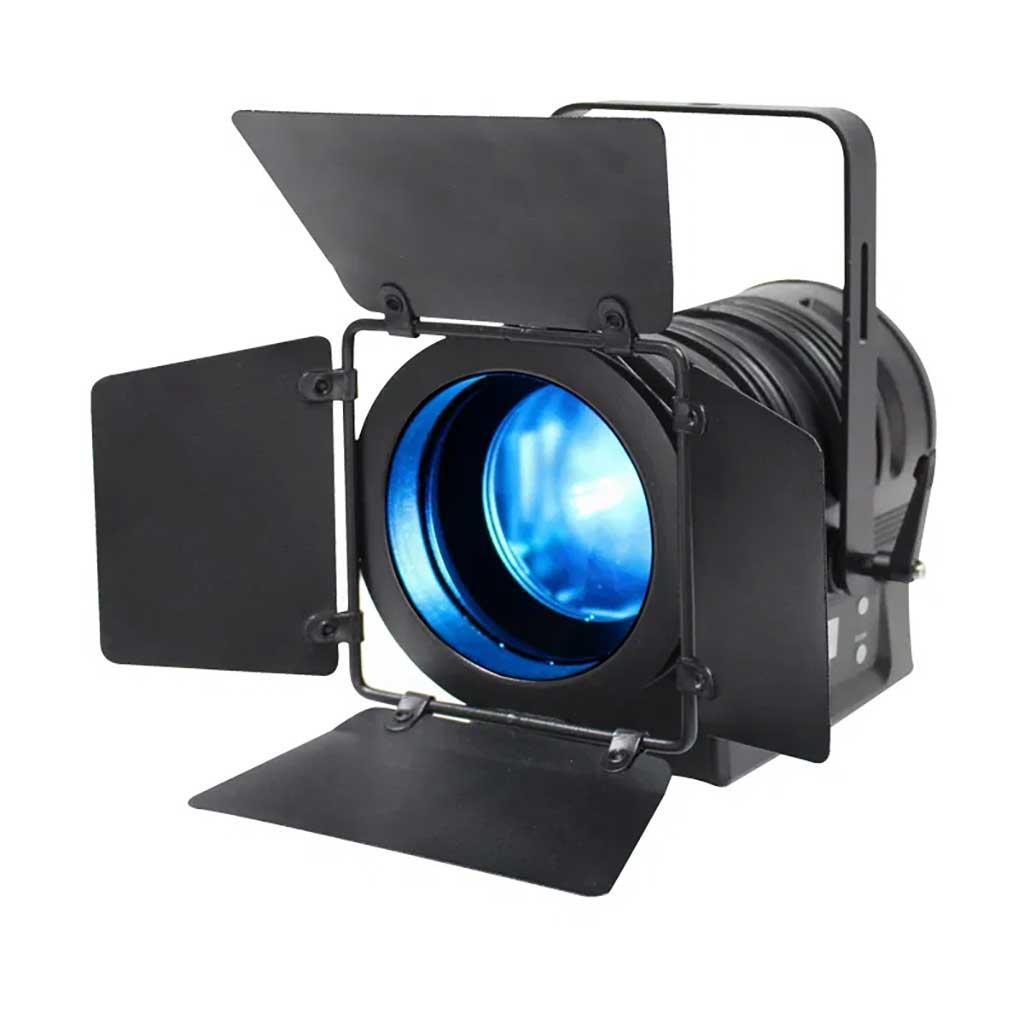

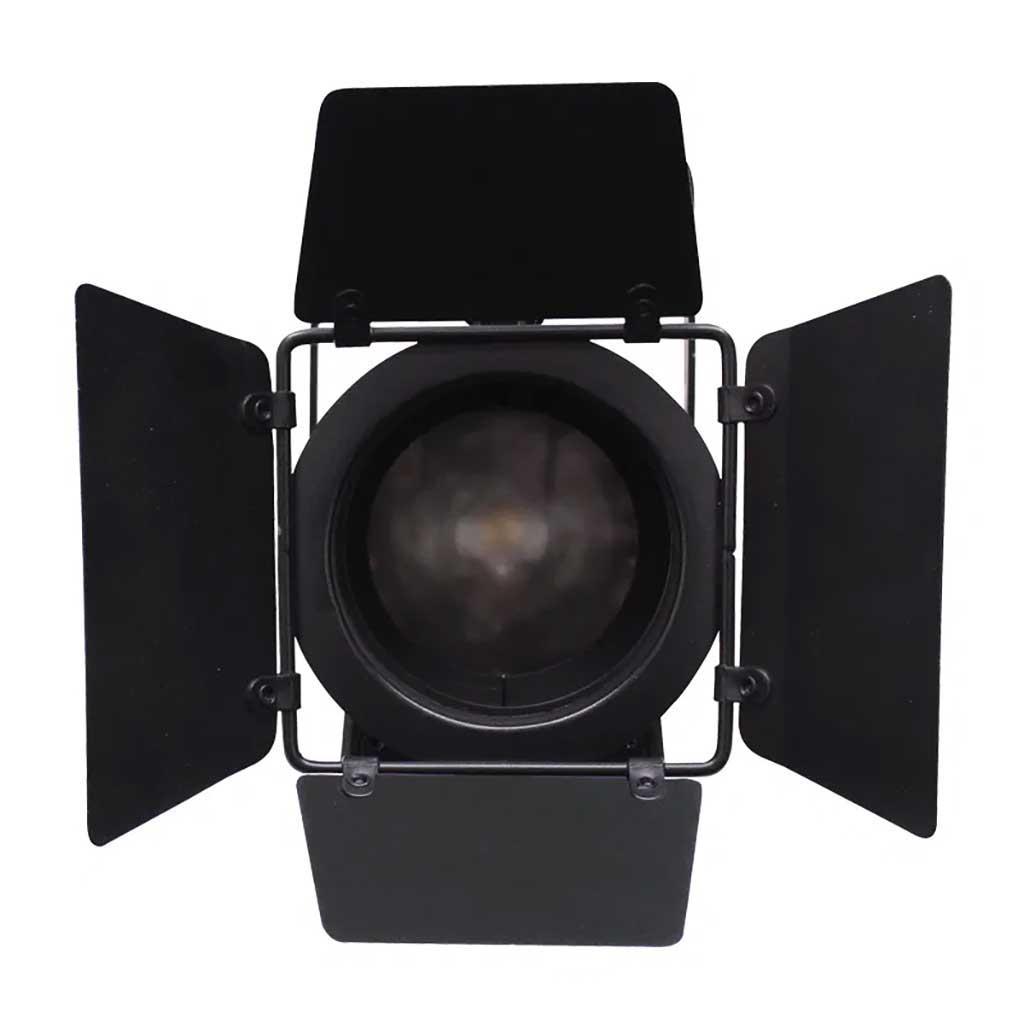

The 75W DMX RGBW Fresnel is a compact, durable, and versatile stage lighting fixture designed for small theatres, studios, events, exhibitions, and display applications. Part of the MP LED Fresnel family, this unit combines a high-output 75W quad-colour COB LED and a variable beam angle, providing uniform coverage. With whisper-quiet, temperature-controlled fan cooling and flexible DMX control, it’s a reliable and professional solution for any lighting environment.

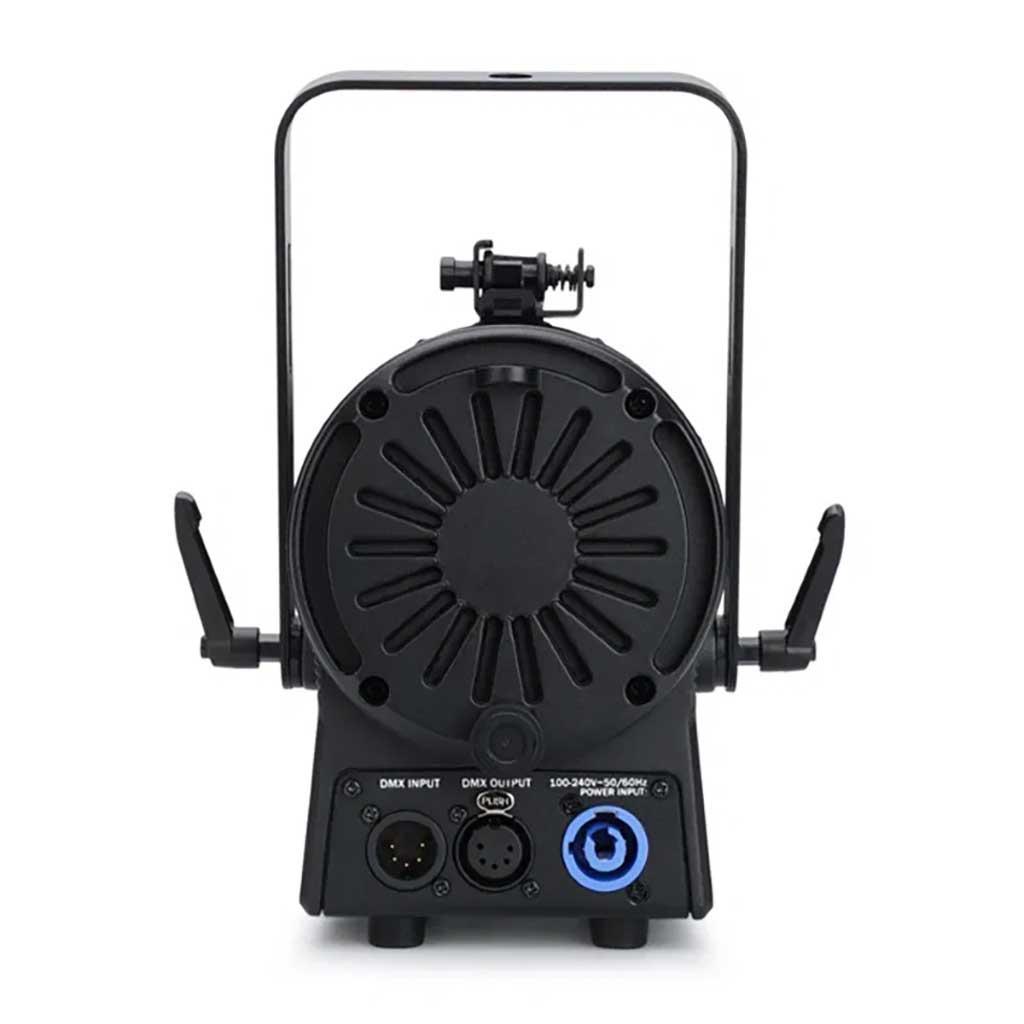

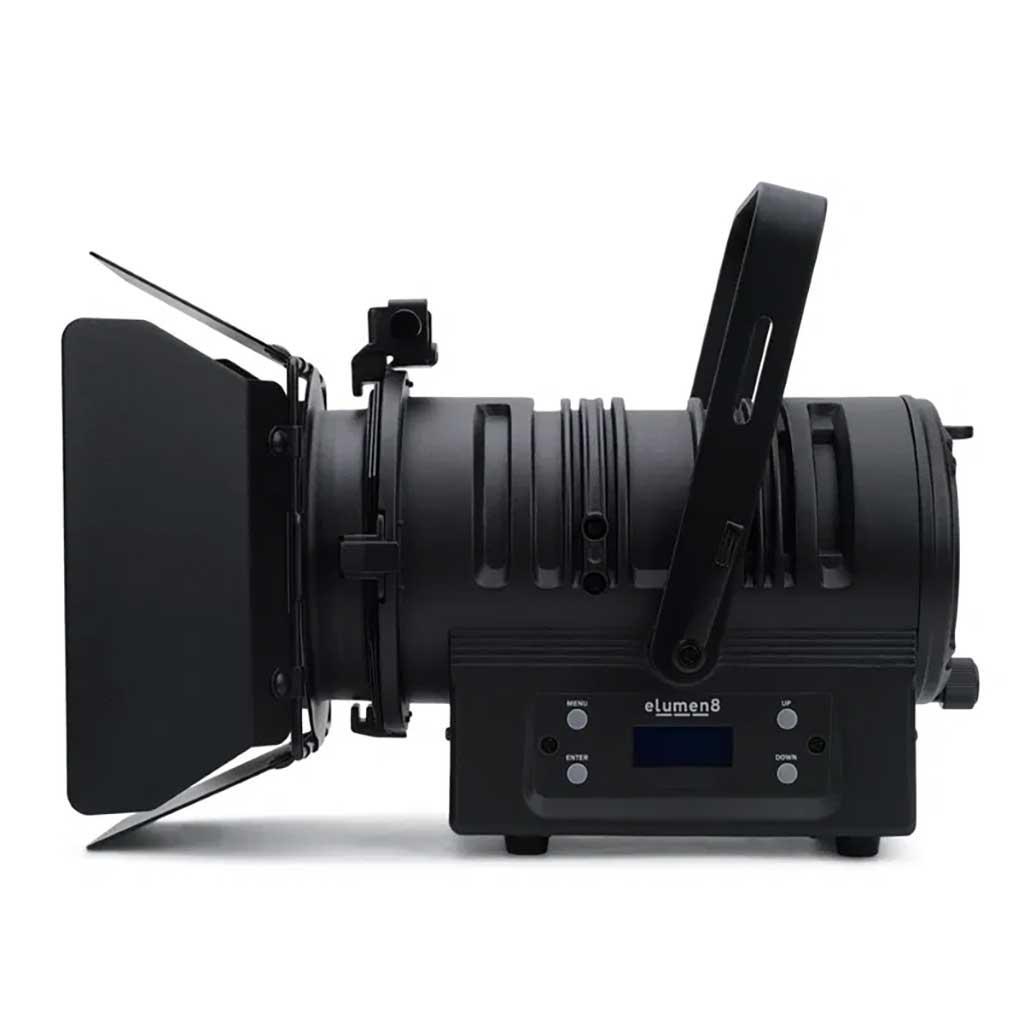

Built for daily professional use, the DMX RGBW Fresnel features a durable housing and a manually adjustable beam angle ranging from 10° to 50°, providing precise control over spot and flood effects. The fixture includes an LCD display with a 4-button interface enabling quick access to DMX channel selection, dimming curves, and manual control. PowerCON input, 5-pin DMX in/out, and included barn doors and filter frame ensure easy integration into any lighting setup.
| Specification | Details |
|---|---|
| LED Source | 1 × 75W RGBW quad-colour COB LED |
| Beam Angle | 10°–50° manual zoom |
| Output @ 2m | 10°: 6,031 Lux (full on) 50°: 630 Lux (full on) |
| Refresh Rate | 1.8kHz |
| DMX Channels | 4 / 5 / 7 selectable |
| RDM Support | Yes (Remote Device Management) |
| Dimming | 0–100% with 4 selectable curves |
| Control Interface | 4-button menu with LCD display |
| Connections | PowerCON input, 5-pin XLR in/out |
| Included Accessories | Filter frame and barn doors |
| Power Consumption | 86W |
| Power Supply | 100–240V AC, 50/60Hz |
| Dimensions (H × W × D) | 250 × 210 × 265mm |
| Weight | 3.8kg |
| Warranty | 2 years |
This 75W DMX RGBW Fresnel delivers a bright, uniform field of light with silent operation, making it ideal for studios, theatres, and close-proximity installations. Its flexible dimming curves, RDM support, and robust COB LED technology allow lighting designers to achieve precise, consistent results. The included barn doors provide creative beam shaping for stage washes, highlights, and spot effects.
Q: Is this light suitable for video or broadcast?
A: Yes, with a 1.8kHz refresh rate, it is suitable for most video applications with minimal flicker.
Q: Does it come with barn doors?
A: Yes, barn doors and a filter frame are included as standard.
Q: What DMX modes are available?
A: The fixture supports 4, 5, or 7 DMX channels, depending on the required control complexity.
Q: How quiet is the fixture?
A: The unit uses a temperature-controlled fan for whisper-quiet operation.
Q: Can I adjust the beam angle?
A: Yes, the manual zoom allows for a 10°–50° beam spread.
