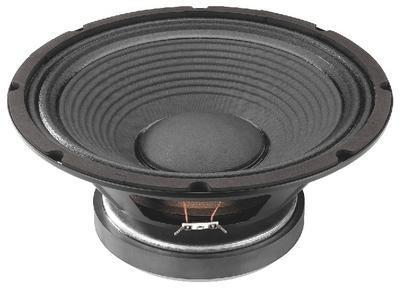

IMG Stageline SP-12/200PA Bass Midrange Speaker 400W Max. 8ohm 12"
#10.2520
£138.00 inc vat
£115.00 ex vat
PA bass-midrange speaker, 400W Max, 8ohm
Very high efficiency and perfect specifications for the use in compact full range speaker systems. Ideally be combined with mid-high range horns.
Technical Specification
- Impedance (Z) 8ohm
- Resonant frequency (fs) 45Hz
- Max. frequency range f3-5,000Hz
- Music power 400W Max
- Power rating (P) 200WRMS
- SPL (1W/1m) 100dB
- Suspension compl. (Cms) 0.29mm/N
- Moving mass (Mms) 43g
- Mech. Q factor (Qms) 5.20
- Electr. Q factor (Qes) 0.35
- Total Q factor (Qts) 0.33
- Equivalent volume (Vas) 114 l
- DC resistance (Re) 6.8ohm
- Force factor (BxL) 15.4Tm
- Voice coil induct. (Le) 1.2mH
- Voice coil diameter 78mm
- Voice coil former Kapton
- Linear excursion (XMAX) ±4mm
- Eff. cone area (Sd) 531cm2
- Magnet weight 1.8kg
- Weight 6kg
