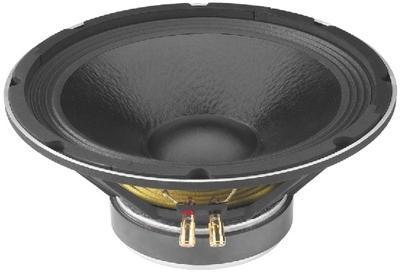

IMG Stageline SP-12A/302 midrange speaker 600WMax 300WRMS 8ohm 12"
#10.4930
Of very high power capability, high efficiency and with drive parameters which allow a reproduction of the complete bass range: these speakers guarantee excellent results as bass-midrange speakers in 2-way or multiway systems as well as subwoofers with the two larger models. Professional PA Bass-midrange Speaker, 600W Max, 300WRMS, 8ohm
30cm (12") professional speaker of very high power capability and long excursion, diecast basket, water-repellent coated cone, very good workmanship with facing basket front, wide frequency response of low distortion and high efficiency, excellent bass reproduction, the drive system features a drilled pole core and an additional magnet for optimising the magnetic field and impedance linearisation. Suitable for bass-reflex cabinets from 30 litres on already. A very good speaker for all kinds of professinal and semiprofessional PA applications.
- Impedance (Z) 8ohm
- Resonant frequency (fs) 50Hz
- Max. frequency range f3-4,000Hz
- Music power 600WMAX
- Power rating (P) 300WRMS
- SPL (1W/1m) 99dB
- Suspension compl. (Cms) 0.19mm/N
- Moving mass (Mms) 50g
- Mech. Q factor (Qms) 7.87
- Electr. Q factor (Qes) 0.35
- Total Q factor (Qts) 0.34
- Equivalent volume (Vas) 77 l
- DC resistance (Re) 6.4ohm
- Force factor (BxL) 16.98Tm
- Voice coil induct. (Le) 0.8mH
- Voice coil diameter 66mm
- Voice coil former Kapton
- Linear excursion (XMAX) ±5mm
- Eff. cone area (Sd) 530cm2
- Magnet weight 2kg
- Weight 5.2kg
