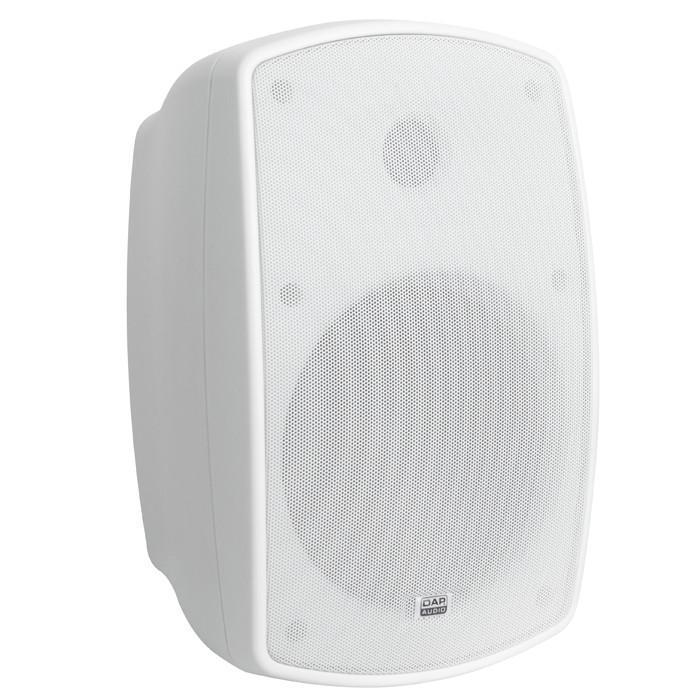

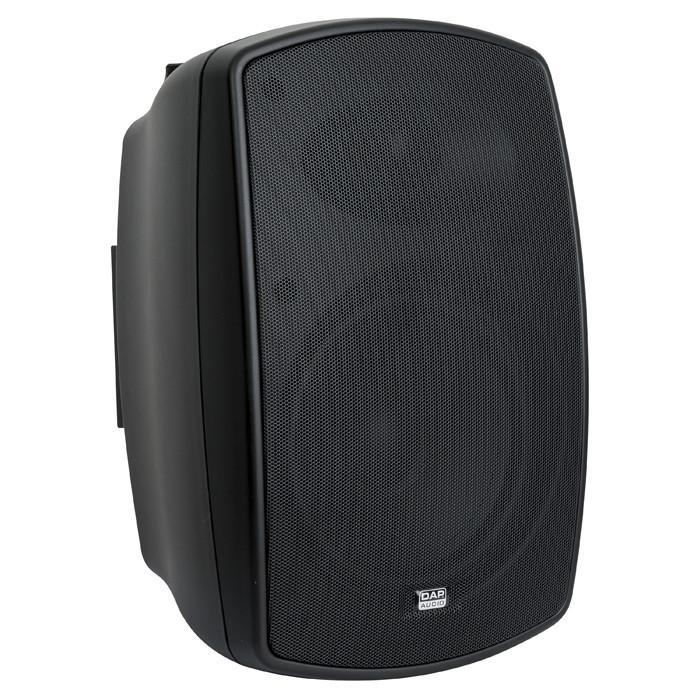

The DAP EVO 6T is a set of two 6.5-inch passive installation speakers designed for high-fidelity audio reproduction in both indoor and outdoor environments. With a peak power handling of 140 W each and a maximum sound pressure level of 114 dB at one metre, these speakers are well-suited for public spaces and commercial premises such as offices, shopping malls, and conference halls.
Constructed with a robust ABS plastic housing and a steel grille, the EVO 6T ensures durability and protection against the elements. The IP54 rating signifies resistance to dust ingress and splash water, making it suitable for both indoor and outdoor installations. The elegant design, available in black and white, allows seamless integration into various architectural settings.
Specification | Details |
---|---|
Speaker System | 2-way full-range |
Continuous Power | 70 W |
Peak Power | 140 W |
Impedance | 8 Ω |
Sensitivity (1 W/1 m) | 90 dB |
Frequency Response (-3 dB) | 50 Hz - 20,000 Hz |
Woofer | 6.5-inch |
Tweeter | 1-inch dome tweeter |
Dispersion (H x V) | 110 degrees x 90 degrees |
Transformer | 70 V / 100 V |

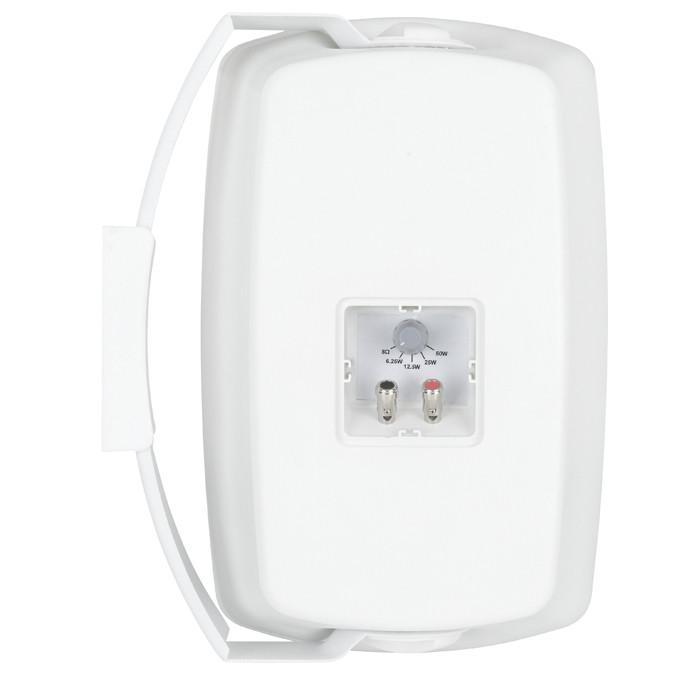

Power Taps | 4 W, 8 W, 16 W, 32 W |
Connections | Terminals |
Housing Material | ABS plastic |
Grill Material | Steel |
IP Rating | IP54 |
Dimensions (H x W x D) | 300 mm x 195 mm x 185 mm |
Weight (per unit) | 3.5 kg |
The DAP EVO 6T speakers offer crisp and balanced sound with excellent speech intelligibility, even at lower volumes. Thanks to the flexible mounting and power tap options, they adapt well to various installation scenarios. The durable build and weather resistance make them a dependable choice for permanent AV setups indoors or in sheltered outdoor spaces.
Q: Are these speakers suitable for outdoor use?
A: Yes, the EVO 6T has an IP54 rating, offering dust and splash protection for sheltered outdoor use.
Q: Can I use these speakers in a low-power public address system?
A: Absolutely. With selectable power taps as low as 4 W, they are ideal for smaller systems as well as larger installations.
Q: Do these speakers include mounting brackets?
A: Yes, they come with tiltable mounting brackets suitable for wall mounting in either horizontal or vertical orientation.
Q: What kind of amplifier should I use?
A: A 100 V line amplifier is recommended, although an 8-ohm amplifier may also be used for direct connection.
Q: Are black and white versions functionally identical?
A: Yes, the only difference is aesthetic. Both versions offer identical acoustic performance and technical specifications.
