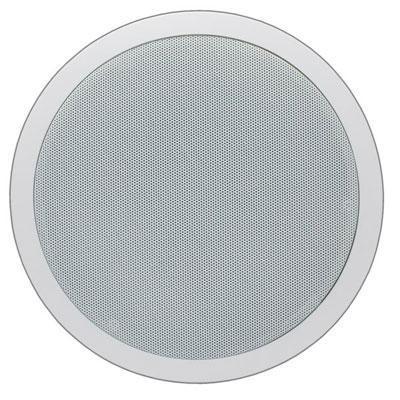

The Apart Audio CMX20T is a high-performance ceiling speaker engineered for both commercial and residential environments where premium sound quality and durability are essential. Featuring an 8-inch woofer and water-resistant construction, it is ideal for humid areas such as bathrooms, swimming pools, kitchens, and covered outdoor spaces. The CMX20T seamlessly combines clear audio reproduction with robust design for long-term reliability.
The CMX20T boasts a durable ABS plastic grille and housing, ensuring resistance against moisture and corrosion. Its water-resistant polypropylene woofer cone further enhances longevity in demanding environments. The sleek, low-profile design integrates seamlessly into modern interior and exterior décors, while the included steel mounting bracket ensures secure and stable installation. Despite its solid build, the speaker remains lightweight, allowing for easy handling and manoeuvrability during installation.
| Specification | Details |
|---|---|
| Power Source | Passive (No internal amplifier) |
| Speaker Type | 8" Ceiling Speaker |
| Impedance | 16 Ohm / 100V Transformer with Power Taps |
| Power Handling | 100W Maximum, 20W/10W/5W (100V Line) |
| Frequency Response | 60 Hz - 20 kHz |
| Sensitivity (1W/1m) | 88 dB |
| Woofer Material | Polypropylene |
| Grille & Housing | Water-Resistant ABS Plastic |
| Cut-Out Diameter | 248 mm |
| Dimensions (Dia. x Depth) | 272 mm x 100 mm |
| Weight | 2.0 kg |
The Apart CMX20T delivers crisp, detailed sound across a wide frequency range, ensuring excellent speech intelligibility and balanced background music performance. Its water-resistant design makes it a top choice for high-humidity environments where conventional speakers typically fail. Easy to install and discreet, this model is perfect for commercial venues like restaurants and wellness centres, as well as domestic applications in bathrooms, kitchens, and covered patios.
Q: Is the CMX20T suitable for outdoor use?
A: Yes, it is suitable for covered outdoor installations but should not be directly exposed to heavy rain or submerged in water.
Q: Can this speaker operate in a 100V line system?
A: Absolutely. The CMX20T includes an integrated 100V transformer with selectable power taps for flexible integration.
Q: What maintenance is required to keep the speaker in optimal condition?
A: Minimal maintenance is needed. Simply wipe the grille and housing with a damp cloth periodically to remove dust and moisture build-up.
Q: Does the speaker support low-impedance connections?
A: Yes, it supports both 16 Ohm low-impedance and 100V/70V high-impedance installations.
Q: What is the recommended amplifier power for this speaker?
A: An amplifier capable of delivering 20W to 100W RMS per channel is recommended for optimal performance, depending on the installation setup.
