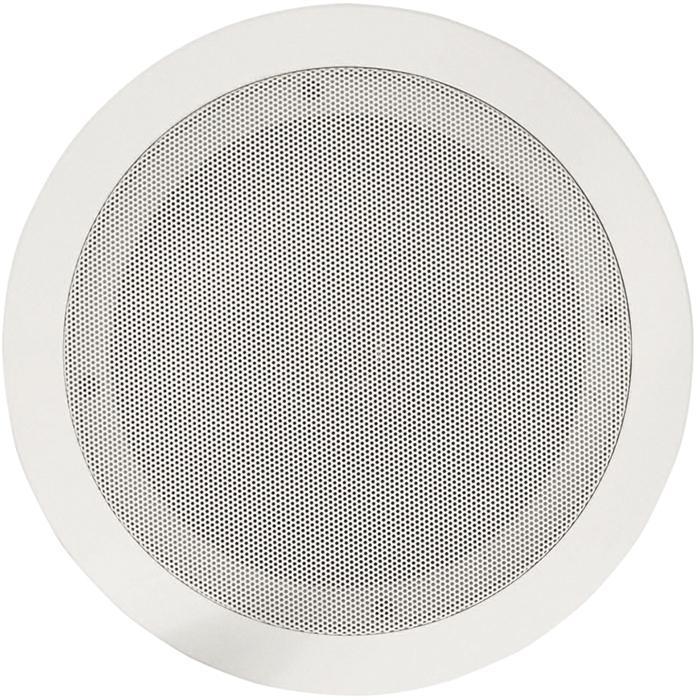

The Eagle B421 is a versatile 6.5-inch ceiling speaker engineered for both commercial and residential installations. Supporting both 100V line and 8-ohm impedance, it suits various audio distribution systems -- ideal for retail spaces, hospitality venues, and home integration where clarity, efficiency, and ease of installation are key.
Constructed with a high-grade polypropylene cone and a centrally positioned 13mm tweeter, the B421 delivers reliable sound performance and long-lasting durability. Its unobtrusive white finish and flush-mount design complement most ceiling aesthetics. The speaker's moisture-resistant design further enhances its durability, enabling installation in high-humidity environments such as kitchens and bathrooms.
| Specification | Details |
|---|---|
| Power Source | 100V Line / 8 Ohm |
| Driver Size | 6.5" (166mm) |
| Tweeter | 13mm |
| Frequency Response | 60Hz - 20kHz |
| Impedance | 8 Ohm |
| Power RMS | 50W |
| Peak Music Power | 250W |
| Sensitivity | 89dBV/Pa |
| SPL @ 1m | 97dB |
| Tappings | 2.5W, 5W, 10W, 15W, 20W |
| Mounting Depth | 74mm |
| Cut-Out Dimensions | 193mm |
| Overall Diameter | 229mm |
| Weight | 2.2kg |
The B421 ceiling speaker ensures high-quality sound reproduction, making it ideal for music playback, speech intelligibility, and ambient audio settings in diverse environments. The robust build and moisture resistance enhance reliability in kitchens, bathrooms, and other high-humidity areas.
Q: Can the B421 be used in both 100V line and low impedance systems?
A: Yes, it supports both 100V line and 8-ohm installations, allowing broad compatibility.
Q: Is the speaker suitable for humid environments?
A: Absolutely. It features moisture-resistant components, making it suitable for kitchens and bathrooms.
Q: What is the maximum power handling of the B421?
A: The B421 can handle up to 250W of peak music power.
Q: Does the B421 come with installation accessories?
A: Yes, a cut-out template is included and the speaker features push-fit terminals for quick installation.
Q: What is the recommended cut-out size for installation?
A: The required cut-out diameter is 193mm.
