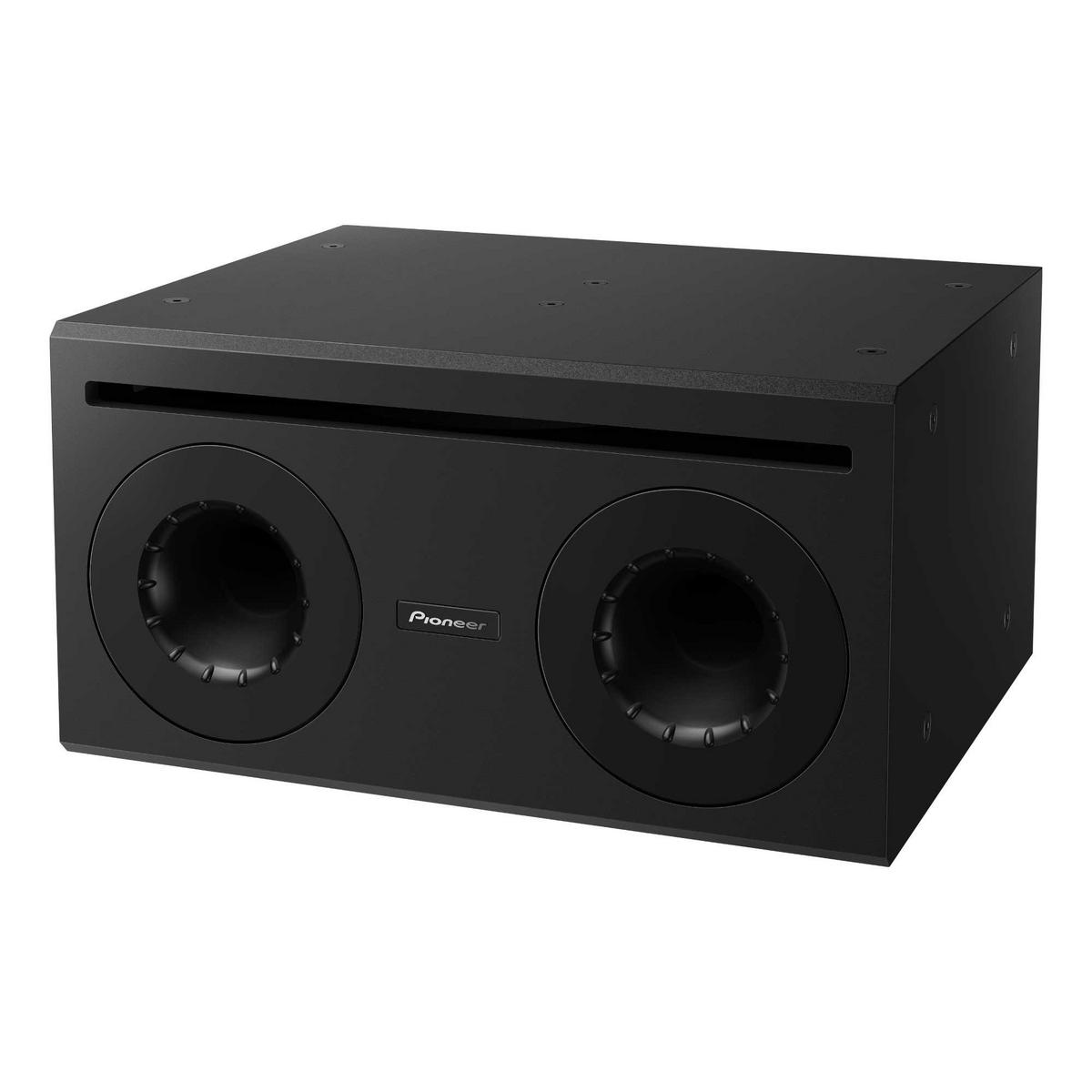

The Pioneer Pro Audio CM-510ST is a 10-inch subwoofer designed for professional audio installations in commercial environments such as restaurants, retail spaces, and conference rooms. Employing the Kelton method, this subwoofer delivers rich, punchy bass with low distortion, ensuring high-quality audio performance in a compact size and shape.
The CM-510ST features a robust wooden enclosure available in two finishes: black with polyurethane paint and white with water-based paint, allowing seamless integration into various interior designs. Its compact 50-litre cabinet is engineered for discreet installation without compromising on sound quality. The unit includes 20 M8 threaded mounting points, providing versatile mounting options on floors, walls, or ceilings to suit diverse installation requirements.
| Specification | Details |
|---|---|
| Loudspeaker Type | Kelton method subwoofer |
| Frequency Response (-10 dB, Typical) | 45 Hz - 150 Hz |
| Sensitivity (1W/1m) | 95 dB (half space) |
| Nominal Impedance | 8 Ω |
| Power Handling (RMS/Program) | 200 W / 400 W |
| Transformer Taps | 70V: 200W / 100W / 50W / 25W 100V: 200W / 100W / 50W |
| Maximum SPL | 124 dB (peak, half space) |
| Driver Configuration | 10" (250 mm) cone |

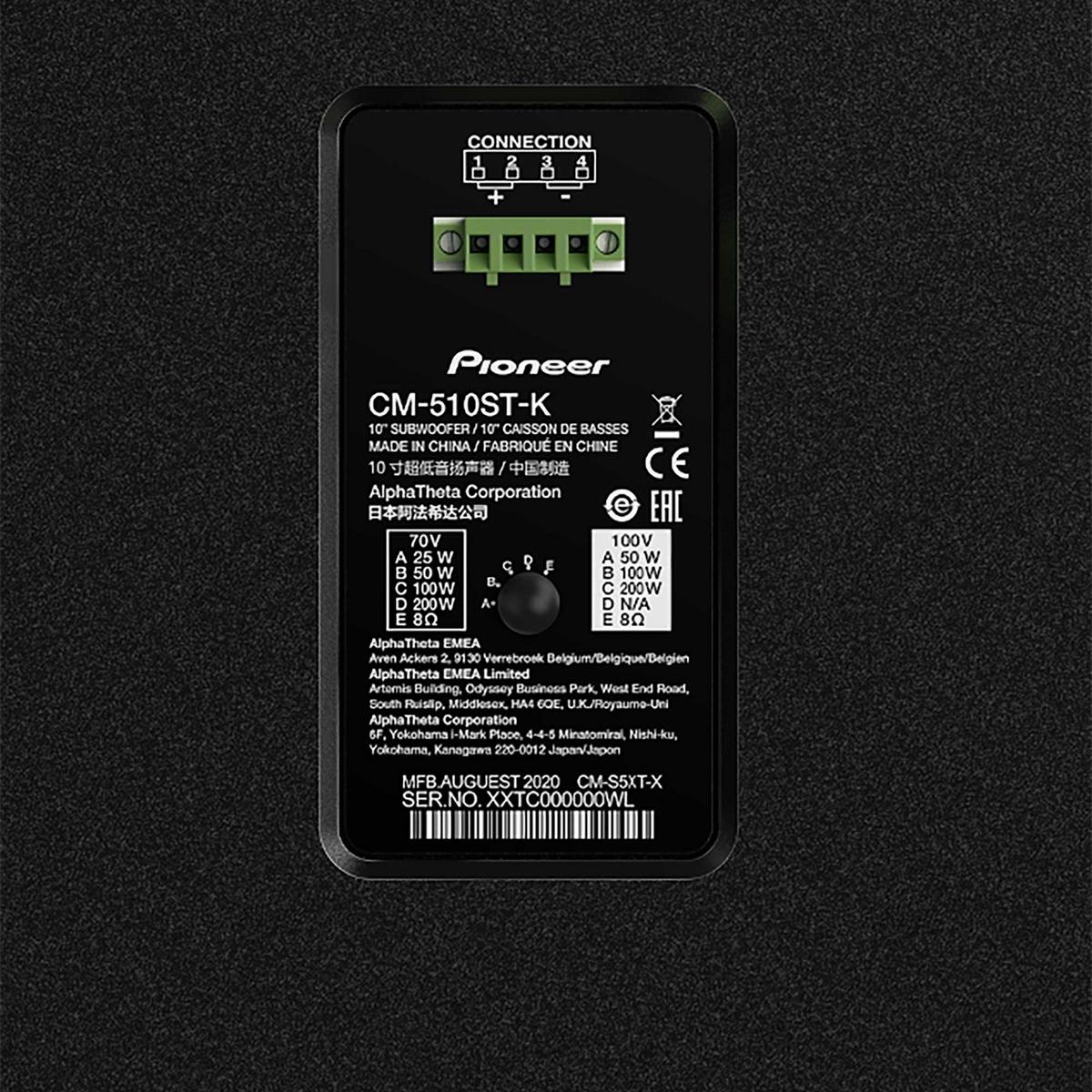

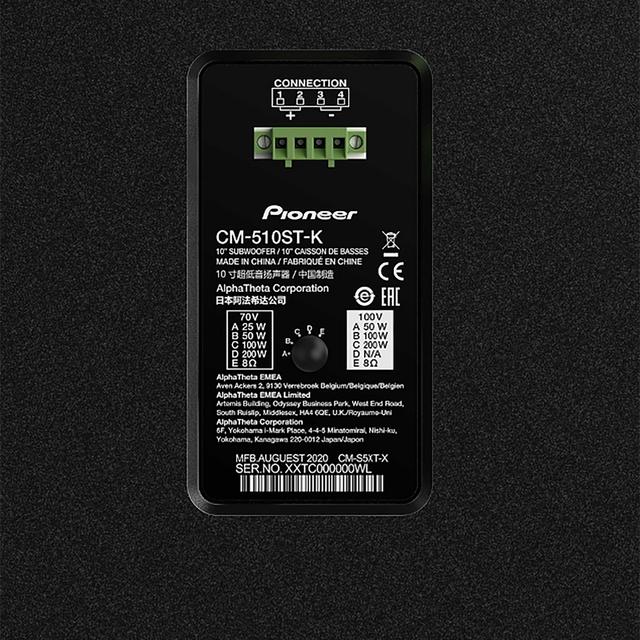

| Connectors | Euroblock (4 pin) × 1 (input: +/-, loop-through: +/-) |
| Dimensions (W x H x D) | 260.0 x 500.0 x 400.0 mm (10.23" x 19.69" x 15.75") |
| Weight | 17.9 kg (39.5 lbs.) |
| Enclosure Finish | Black: Wood with polyurethane paint |
| Mounting Points | 20 × M8 threaded mounting points |
The CM-510ST delivers high-quality bass performance with minimal distortion, enhancing the overall audio experience in various commercial settings. Its user-friendly design, coupled with flexible mounting options, allows for seamless integration into existing audio systems.
Q: Is the CM-510ST suitable for both 70V/100V systems and low impedance installations?
A: Yes, the CM-510ST features transformer taps for 70V/100V systems and an 8-ohm configuration for low impedance setups.
Q: Can the CM-510ST be mounted on ceilings?
A: Absolutely. It includes 20 M8 mounting points, allowing for wall, floor, or ceiling installations to suit different acoustic needs.
Q: What environments is the CM-510ST ideal for?
A: The subwoofer is perfect for restaurants, retail environments, conference rooms, and any commercial space requiring deep, controlled bass.
Q: Is the bass response clear at high volume levels?
A: Yes, thanks to the Kelton method and Vortex Bass Accelerator, the unit maintains clear and distortion-free bass even at high output levels.
Q: Are there multiple finishes available?
A: Yes, it is available in black with polyurethane paint and white with water-based paint for aesthetic integration into any space.
